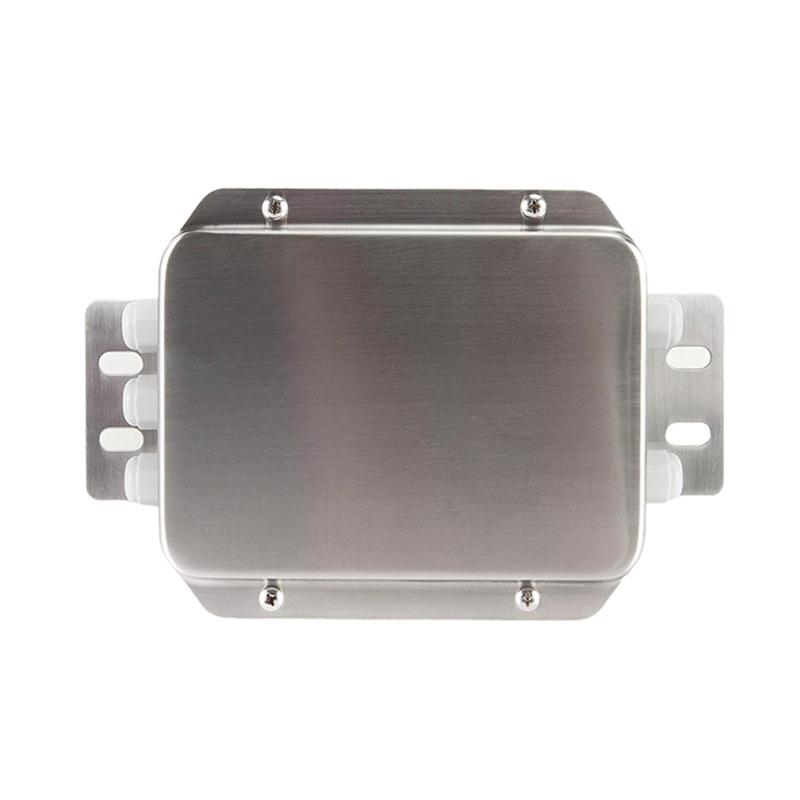

The 4-way weighing sensor junction box is a device that integrates and processes signals from multiple weighing sensors, mainly used in mass measurement. It can parallel or convert multiple weighing sensor signals into digital to analog signals and output a single signal, so that the upper computer instrument can process these signals. The 4-way weighing sensor junction box is widely used in various weighing instruments, such as truck scales, platform scales, hopper scales, etc.

Types and functions of Weighing sensor junction box

The 4-channel weighing sensor junction box is mainly divided into two types: analog 4 load cell junction box and digital 4 load cell junction box. The analog junction box connects the signals of multiple weighing sensors in parallel and outputs a voltage signal, while the digital junction box converts the signal from digital to analog and outputs a digital signal through serial communication.

Working principle of junction box

The working principle of the 4-way weighing sensor junction box is to integrate and process signals from multiple weighing sensors. It connects the weighing sensor and display instrument to average or add the output signals of the sensors, thereby obtaining a representative output signal. In addition, the 4-channel weighing sensor junction box can also adjust the sensitivity of each sensor through internal potentiometers to ensure the balance and accurate reading of the scale body.

Application scenarios of junction boxes

The 4-channel weighing sensor junction box is widely used in various scenarios that require mass measurement, such as weighing scales, platform scales, hopper scales, etc. It can solve system errors, facilitate maintenance, and provide protective measures such as explosion-proof enclosures and IP level protection.

Installation and maintenance of junction box

Junction boxes are usually installed on site for easy maintenance and debugging. It can adjust the sensitivity of each sensor by adjusting the potentiometer, ensuring the same output under the same load, thereby improving the accuracy of readings. In addition, the protection level of the 4-channel weighing sensor junction box (such as IP67) ensures its reliability and durability in harsh environments.
