Weigh Truck Near Me
WS1110WD-1
Ningbo Saintbond is camry weight scale how to use Manufacturers and Suppliers, weigh truck near me is made of aluminum alloy, thin pads make it easy to carry, semi truck weight scale near me are used to determine the individual axle weights and total gross weight of any type of vehicle.Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( Saintbond weight scale how to use, weigh truck near me, semi truck weight scale near me Saintbond weight scale how to use, weigh truck near me, semi truck weight scale near me Saintbond weight scale how to use, weigh truck near me, semi truck weight scale near me Saintbond weight scale how to use, weigh truck near me, semi truck weight scale near me )
Axle scales are specialized weighing systems designed to measure the weight of individual vehicle axles or groups of axles, The weighments are completed one axle set at a time and then all the axle weights are summed to provide the total gross weight of the truck. weigh truck near me play a crucial role in ensuring compliance with weight regulations and optimizing the safe and efficient transportation of goods.
Ningbo Saintbond is the world's largest semi truck weight scale near me Manufacturer in scaling technology. Saintbond weight scale how to use From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality,China-madein-ground and weigh truck near me that provide essential features for multiple industries.
Axle scale is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles, weigh truck near me are an economical, adaptable and portable solution for vehicle and truck weighing.An axle scale measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This type of scale is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. Axle scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

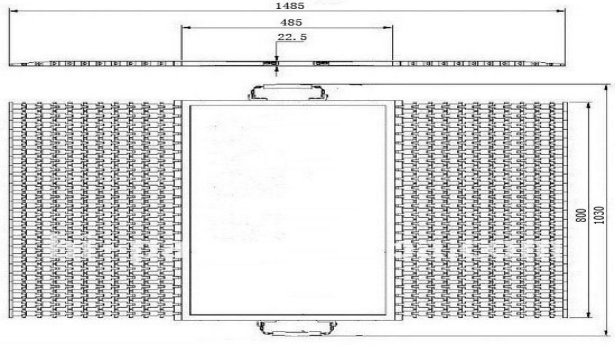

| WS1110WD Dimension:mm |
| WS1110WD Technical Specification: | |
| Rated Load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 |
| Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 |
| Dynamic Comprehensive Error(%F.S): | 1.5 (1~5km/h),3(5~10km/h) |
| Static Comprehensive Error(%F.S): | 0.10% |
| Wireless Specification: | |
| A/D Conversion Method | Σ-Δ 24bit |
| Input Signal Range | –19.5mV~19.5mV |
| Load Cell Excitation | DC 5V |
| Max. Connection Number Of Load Cell | 1~4 |
| Load Cell Connection Mode | 4 wire |
| Operating Temperature | -10°C~40 °C |
| Allowable Working Temperature | -40 °C ~70 ° C |
| Wireless Transmission Frequency | 430MHz to 470MHz |
| Wireless Transmission Distance | 100~300meters (In Open Place) |
| PC Software | Optional, Customizable |
WS1110WD Axle Scale Wireless Weighing Indicator: (Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
