Vehicle Weighing Pads
WS1101D
Ningbo Saintbond have over 20 years experience in vehicle weighing pads, Ningbo Saintbond truck weight machine near me is apply to weighing in the road, These portable wheel scale offer a large weighing surface and can accommodate dual axle truck weighing and tri-axle truck trailer weighing.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:

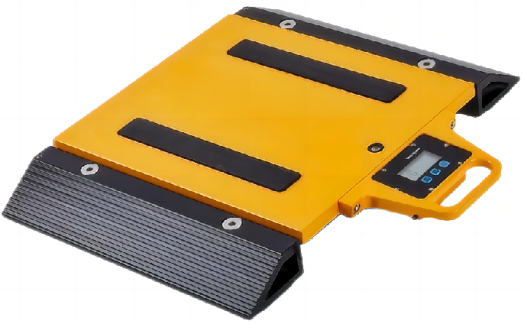

Our Vehicle Weighing Pads provide a highly portable and instant solution for accurate on-site weight measurement. Designed with a low-profile, durable construction, these pads can be easily deployed anywhere for checking axle weights and total vehicle weight. This ensures compliance with legal load limits, enhances safety, and optimizes load distribution. Portable wheel scale ideal for logistics, waste management, and law enforcement, they offer a cost-effective alternative to fixed scales. Achieve reliable, professional-grade weighing results in minutes, right where you need them. ( vehicle weighing pads, truck weight machine near me, portable wheel scale vehicle weighing pads, truck weight machine near me, portable wheel scale vehicle weighing pads, truck weight machine near me, portable wheel scale)
Ningbo Saintbond is the world’s largest manufacturer of vehicle weighing pads, truck weight machine near me, portable wheel scale in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and portable wheel scale that provide essential features for multiple industries.
Aluminum-alloy; Ultra thin vehicle weighing pads design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; portable wheel scale Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
WS1101D Vehicle Weighing Pads Dimension (mm):
| Type | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weigh Pad) | (Each Pad) | |
| WS1101W | 300×400×56.5 | 500~8000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000Kg |
WS1101D Vehicle Weighing Pads Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
Weighing Applications:
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
