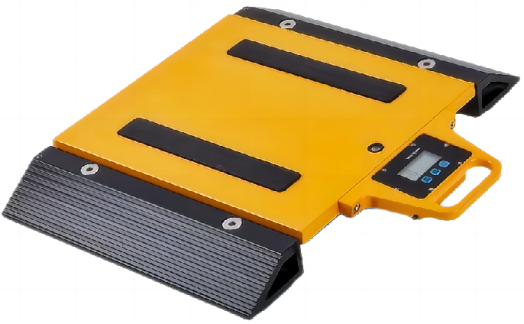

Dump Trailer Scale
WS1101D-2
Commercial truck scales near me allows you to weigh your trucks anywhere and at any time, wheel scales for sale designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, Ningbo saintbond dump trailer scale for both static and dynamic applications.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Axle scales are knowed as commercial truck scales near me, wheel scales for sale, dump trailer scale, are specialized weighing systems designed to measure the weight of individual vehicle axles or groups of axles, The weighments are completed one axle set at a time and then all the axle weights are summed to provide the total gross weight of the truck. dump trailer scale play a crucial role in ensuring compliance with weight regulations and optimizing the safe and efficient transportation of goods. ( commercial truck scales near me, wheel scales for sale, dump trailer scale commercial truck scales near me, wheel scales for sale, dump trailer scale commercial truck scales near me, wheel scales for sale, dump trailer scale )
Ningbo Saintbond is the world’s largest manufacturer of commercial truck scales near me, wheel scales for sale, dump trailer scale in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and wheel scales for sale that provide essential features for multiple industries.
Dump Trailer Scale with Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; wheel scales for sale Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
WS1101D Dump Trailer Scale Dimension (mm):
| Type | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weigh Pad) | (Each Pad) | |
| WS1101W | 300×400×56.5 | 500~8000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000Kg |
WS1101D Dump Trailer Scale Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101D Dump Trailer Scale Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
