Strip Sensors
WS1195
Strip Sensors use strain gauge based technology which is utilized in the most accurate vehicle scales, Multiple-Sensor Weigh-in-motion offer a unique alternative to traditional weighing practices. By capturing weights for each wheel independently, WIM Strip Sensor systems provide fully-automated collection of individual-axle, axle group, and gross vehicle weights, In-Ground Strip Sensors which is widely accepted as the most accurate and reliable means to weigh a vehicle.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Ningbo Saintbond Strip Sensors are built with Strain Gauge technology and provide accurate vehicle weight measurements at speeds up to 80 mph (130 km/h) and beyond. In-Ground Strip Sensors are used for a wide range of applications including direct weight enforcement, pre-selection, data collection, tolling, and more. Ningbo Saintbond’s Multiple-Sensor Weigh-in-motion deliver accurate, reliable, and efficient weight measurements with a low cost of ownership.
Strip Sensors offer a unique alternative to traditional WIM scales,Strip Sensorsuse strain gauge based technology which is utilized in the most accurate vehicle scales. Multiple-Sensor Weigh-in-motion technology takes full advantage of the fast response times and large sampling rates to achieve long term accuracy and stability.

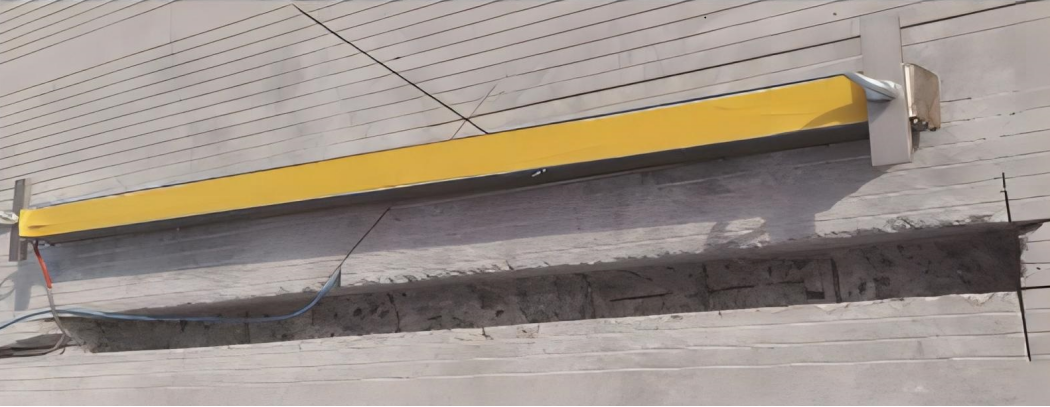

Ningbo Saintbond In-Ground Strip Sensors are also cost-effective due to minimal maintenance requirements, and feature built-in redundancy provided by the multiple sensors used in each installation. The final result is the ability to accurately and efficiently weigh vehicles while saving on both initial and operational expenses.
Ningbo Saintbond supplies Multiple-Sensor Weigh-in-motion (WIM) scale and Strip Sensors sensor systems for applications including weight enforcement, weight-based tolling, traffic data collection,
| Technical Parameter: | |
| Item | Performance Specifications |
| Rated Load | ≥40t(Single Axis) |
| Overload Capacity | 1.5 |
| Horizontal Consistency of Sensors | <±1% |
| Sensitivity | 0.35mV/V |
| Input Impedance | 320Ω |
| Output Impedance | 290Ω |
| Sensor Lifespan | ≥4000 Million Spindles |
| MTBF | ≥30000h |
| Protection Level | IP68 |
| Weight | 80kg |
| Sensor Size (length x width x height) | 1500/1750/2000mm×80mm×80mm |
| working Temperature | .-45~+80°C |
