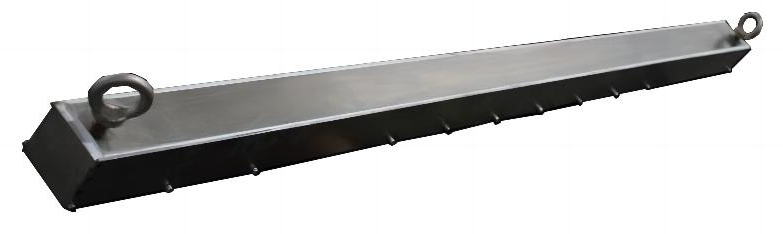

Slim Strip Sensor
WS1195-2
Slim Strip Sensor which is widely accepted as the most accurate and reliable means to weigh a vehicle, strain gauge strip sensors use strain gauge based technology which is utilized in the most accurate vehicle scales, Sensor Strips offer a unique alternative to traditional weighing practices, By capturing weights for each wheel independently, WIM Strip Sensor systems provide fully-automated collection of individual-axle, axle group, and gross vehicle weights.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Ningbo Saintbond Slim Strip Sensor are built with Strain Gauge technology and provide accurate vehicle weight measurements at speeds up to 80 mph (130 km/h) and beyond. strain gauge strip sensors are used for a wide range of applications including direct weight enforcement, pre-selection, data collection, tolling, and more. Ningbo Saintbond's Sensor Strips deliver accurate, reliable, and efficient weight measurements with a low cost of ownership.
Slim Strip Sensor offer a unique alternative to traditional WIM scales,Slim Strip Sensor suse strain gauge based technology which is utilized in the most accurate vehicle scales. strain gauge strip sensors technology takes full advantage of the fast response times and large sampling rates to achieve long term accuracy and stability.
Ningbo Saintbond Sensor Strips are also cost-effective due to minimal maintenance requirements, and feature built-in redundancy provided by the multiple sensors used in each installation. The final result is the ability to accurately and efficiently weigh vehicles while saving on both initial and operational expenses.
Ningbo Saintbond supplies Slim Strip Sensor and strain gauge strip sensors systems for applications including weight enforcement, weight-based tolling, traffic data collection.
| Technical Parameter for Slim Strip Sensor: | |
| Item | Performance Specifications |
| Rated Load | ≥40t(Single Axis) |
| Overload Capacity | 1.5 |
| Horizontal Consistency of Sensors | <±1% |
| Sensitivity | 0.35mV/V |
| Input Impedance | 320Ω |
| Output Impedance | 290Ω |
| Sensor Lifespan | ≥4000 Million Spindles |
| MTBF | ≥30000h |
| Protection Level | IP68 |
| Weight | 80kg |
| Sensor Size (length x width x height) | 1500/1750/2000mm×80mm×80mm |
| working Temperature | .-45~+80°C |
