Quartz Sensors
WS1196
Quartz sensors used in the pavement, which is the only type of sensor weigh station, it is weighed while in motion on a WIM scale, quartz Weigh In Motion(WIM) sensors installed in a concrete road. The Quartz Sensors are the heart of the High Speed Weigh-In-Motion system, WIM Sensor with Quartz to calculate the weight of the vehicle dynamically is discussed.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
The quartz sensors from Ningbo Saintbond measures wheel and axle loads which are used to determine the vehicle gross weight under normal traffic conditions, WIM Sensor with Quartz measure wheel and axle loads to determine the vehicle gross weight under rolling traffic conditions. The Quartz Weigh In Motion(WIM) sensors are installed in the road pavement and provide highly accurate measurement signals.

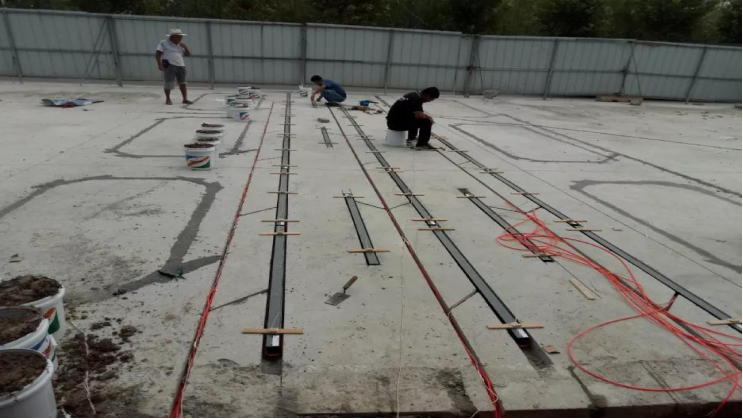

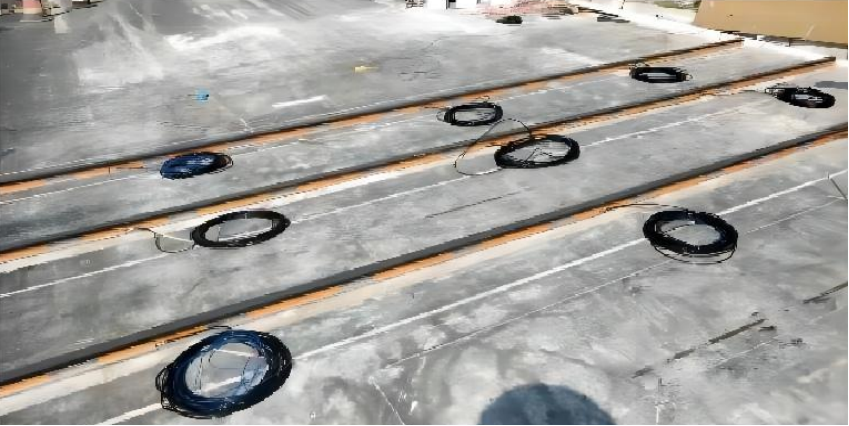

The quartz sensors is a force sensor with quartz elements specially designed for measuring wheel and axle loads of road vehicles. The WIM Sensor with Quartz is installed permanently into the road. When a force is applied to the sensor surface, the quartz elements yield an electrical charge signal proportional to the applied force. The Quartz Weigh In Motion(WIM) sensors (WIM) provides accurate weighing data for gross vehicle weights and individual axle loads over a wide range of speed, weights and temperatures.
Quartz Piezoelectric Dynamic quartz sensors System With High Feedback Rate

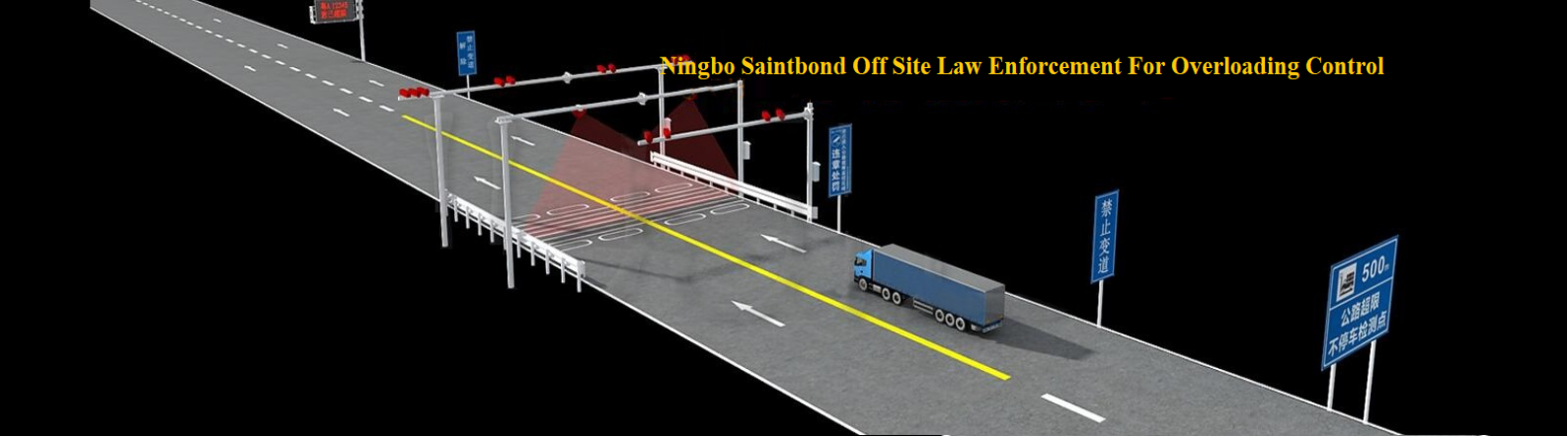

The quartz dynamic car scale uses quartz crystals as weighing sensors to detect the weight of vehicles driving on the lane, with a weighing accuracy of over 95%. It has been widely used in axle load investigation, over limit pre inspection, off-site law enforcement, and other fields.
The temperature drift of the quartz sensors is extremely small, and it can be weighed at both low and high speeds. At the same time, the physical properties of quartz are relatively stable, and its sensitivity changes little with time. The Quartz Weigh In Motion(WIM) sensors utilizes the longitudinal piezoelectric effect of quartz crystals to convert weight signals. Ningbo Saintbond's WIM Sensor with Quartz dynamic weighing sensor is a dynamic weighing (WIM) force sensor that uses quartz elements as the core department. The Quartz Weigh In Motion(WIM) sensors is installed on the road surface and can provide high-precision measurement signals. It is a device specifically used to measure the wheel axle load of road vehicles.
The Quartz Weigh In Motion(WIM) sensors adopts a modular design, with three length specifications of 1.5m, 1.75m, and 2m. It can be freely combined according to the actual road width to achieve weighing deployment of various road widths.
| Specifications: | |
| Project | Performance Specifications |
| Rated Load | ≥ 40t (single axis) |
| Overload Capacity | 1.5 |
| Sensitivity | -1.62 (± 10%) pC/N |
| Sensor lifespan | ≥ 60 million axles |
| Working Temperature | . -40~+70 ° C |
| Insulation Resistance | ＞10G Ω |
| Linearity | <± 1% FSO |
| Protection Level | IP68 |
| Mean Time Between Failures (MTBF) | ≥ 30000h |
| Rated Wheel Load Range | 0-150kN |
