Weigh-in-Motion (WIM) Systems Quartz Sensor
WS1196-6

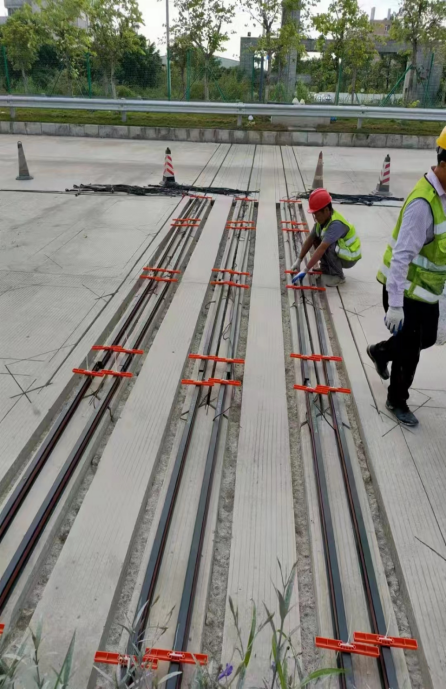

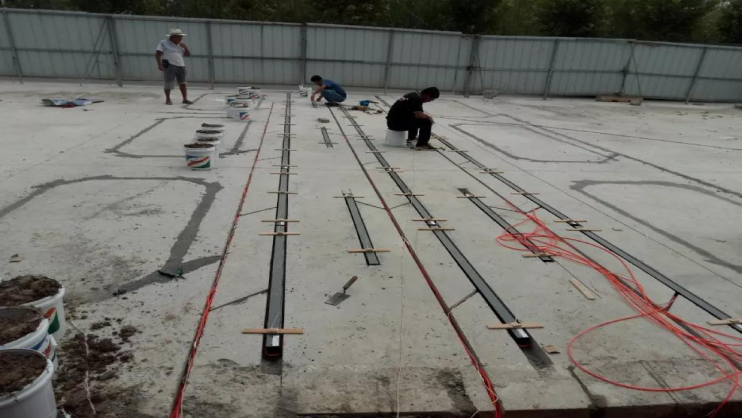

Weigh-In-Motion (WIM) Strip Sensors installed in a concrete road. The Quartz Sensors are the heart of the High Speed Weigh-In-Motion system, Quartz Piezoelectric Dynamic Weigh In Motion Sensors to calculate the weight of the vehicle dynamically is discussed, Weigh-in-Motion (WIM) systems Quartz sensor used in the pavement, which is the only type of sensor weigh station, it is weighed while in motion on a WIM scale.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
The Weigh-In-Motion (WIM) Strip Sensors from Ningbo Saintbond measures wheel and axle loads which are used to determine the vehicle gross weight under normal traffic conditions, Weigh-in-Motion (WIM) systems Quartz sensor measure wheel and axle loads to determine the vehicle gross weight under rolling traffic conditions. The Quartz Piezoelectric Dynamic Weigh In Motion Sensors are installed in the road pavement and provide highly accurate measurement signals.
The Weigh-In-Motion (WIM) Strip Sensors is a force sensor with quartz elements specially designed for measuring wheel and axle loads of road vehicles. The Weigh-in-Motion (WIM) systems Quartz sensor is installed permanently into the road. When a force is applied to the sensor surface, the quartz elements yield an electrical charge signal proportional to the applied force. The Weigh-in-Motion (WIM) systems Quartz sensor (WIM) provides accurate weighing data for gross vehicle weights and individual axle loads over a wide range of speed, weights and temperatures.
Quartz Piezoelectric Dynamic Quartz Piezoelectric Dynamic Weigh In Motion Sensors System With High Feedback Rate

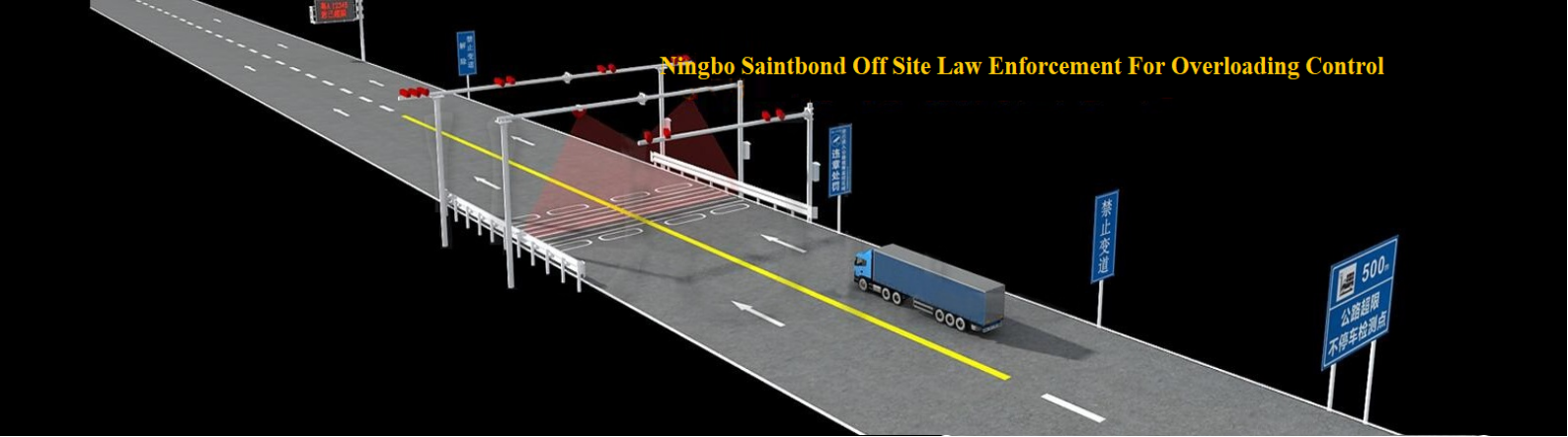

The quartz dynamic car scale uses quartz crystals as weighing sensors to detect the weight of vehicles driving on the lane, with a weighing accuracy of over 95%. It has been widely used in axle load investigation, over limit pre inspection, off-site law enforcement, and other fields.
The temperature drift of the Weigh-In-Motion (WIM) Strip Sensors is extremely small, and it can be weighed at both low and high speeds. At the same time, the physical properties of quartz are relatively stable, and its sensitivity changes little with time. The piezoelectric quartz weighing sensor utilizes the longitudinal piezoelectric effect of quartz crystals to convert weight signals. Ningbo Saintbond's Weigh-in-Motion (WIM) systems Quartz sensor is a dynamic weighing (WIM) force sensor that uses quartz elements as the core department. The Quartz Piezoelectric Dynamic Weigh In Motion Sensors is installed on the road surface and can provide high-precision measurement signals. Weigh-in-Motion (WIM) systems Quartz sensor is a device specifically used to measure the wheel axle load of road vehicles.
The Weigh-in-Motion (WIM) systems Quartz sensor adopts a modular design, with three length specifications of 1.5m, 1.75m, and 2m. It can be freely combined according to the actual road width to achieve weighing deployment of various road widths.
| Specifications: | |
| Project | Performance Specifications |
| Rated Load | ≥ 40t (single axis) |
| Overload Capacity | 1.5 |
| Sensitivity | -1.62 (± 10%) pC/N |
| Sensor lifespan | ≥ 60 million axles |
| Working Temperature | . -40~+70 ° C |
| Insulation Resistance | ＞10G Ω |
| Linearity | <± 1% FSO |
| Protection Level | IP68 |
| Mean Time Between Failures (MTBF) | ≥ 30000h |
| Rated Wheel Load Range | 0-150kN |
