Small Load Cell
LC2307-2
Ningbo Saintbond: Precision in Miniature – Miniature Load Cell Solutions
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2307
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0-5kg~200kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC2307
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 0-5kg~200kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
35Day
Quantity:
mini load cell, loadcell 1kg, weight sensor 5kg mini load cell, loadcell 1kg, weight sensor 5kg mini load cell, loadcell 1kg, weight sensor 5kg mini load cell, loadcell 1kg, weight sensor 5kg mini load cell, loadcell 1kg, weight sensor 5kg
Ningbo Saintbond: Precision in Miniature – Miniature Load Cell Solutions
Ningbo Saintbond specializes in the design and manufacturing of high-precision, compact force measurement devices. Our core product line features advanced mini load cells engineered to deliver exceptional accuracy and reliability in space-constrained applications. Built with robust stainless steel and utilizing state-of-the-art strain gauge technology, these sensors are the ideal solution for precise weight and force detection across industries.

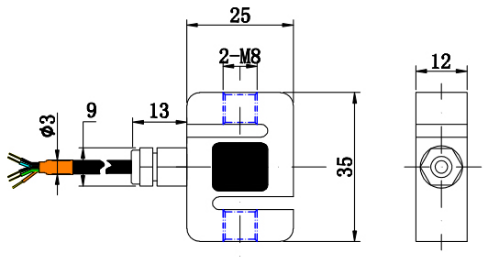

LC2307 Mini Load cell Dimension: mm
LC2307 Mini Load cell Technical Parameter:
| Capacity | 0-5kg~200kg | Material | Stainless Steel |
| Rated output | 1.5～2.0mV/V | Output Impedance | 350±3Ω |
| Non-linearity | 0.05 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.05 % F.S. | Recommended Excitation | 5-15V |
| Repeatability | 0.05 % F.S. | Excitation max | 10V |
| Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.1 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.1 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 350±15Ω | Cable Length | ∅2-3 x 3m |
LC2307 Mini Load cell Product Highlights & Key Models:
Ultra-Compact Mini Load Cell Series: Our flagship range of miniature sensors offers a superb balance of size, performance, and durability. They are perfect for integration into automated equipment, medical devices, laboratory instruments, and consumer electronics where space is at a premium.
High-Precision 1kg Load Cell: Designed for applications requiring extreme sensitivity at lower capacities, our loadcell 1kg model provides stable and accurate measurements. It is commonly used in precision filling, small part counting, and delicate assembly processes.
Versatile 5kg Weight Sensor: For applications needing a slightly higher capacity without sacrificing compactness, our weight sensor 5kg is the optimal choice. It ensures excellent linearity and repeatability, suitable for bench scales, handheld devices, and force feedback mechanisms.
Ultra-Compact Mini Load Cell Series: Our flagship range of miniature sensors offers a superb balance of size, performance, and durability. They are perfect for integration into automated equipment, medical devices, laboratory instruments, and consumer electronics where space is at a premium.
High-Precision 1kg Load Cell: Designed for applications requiring extreme sensitivity at lower capacities, our loadcell 1kg model provides stable and accurate measurements. It is commonly used in precision filling, small part counting, and delicate assembly processes.
Versatile 5kg Weight Sensor: For applications needing a slightly higher capacity without sacrificing compactness, our weight sensor 5kg is the optimal choice. It ensures excellent linearity and repeatability, suitable for bench scales, handheld devices, and force feedback mechanisms.
LC2307 Mini Load cell Typical Applications:
þ Laboratory balances and analytical instruments
þ Industrial automation and robotic end-effectors
þ Medical and rehabilitation equipment
þ Packaging and filling machinery
þ Smart appliances and consumer electronics
þ Overload protection and safety monitoring systems
þ Laboratory balances and analytical instruments
þ Industrial automation and robotic end-effectors
þ Medical and rehabilitation equipment
þ Packaging and filling machinery
þ Smart appliances and consumer electronics
þ Overload protection and safety monitoring systems
Why Choose Ningbo Saintbond?
Expertise in Miniaturization: We focus on making powerful sensors smaller.
Rigorous Quality Control: Each sensor undergoes strict calibration and testing.
Customization Support: We offer OEM/ODM services to tailor specifications to your exact needs.
Global Compliance: Products are designed to meet international standards.
Expertise in Miniaturization: We focus on making powerful sensors smaller.
Rigorous Quality Control: Each sensor undergoes strict calibration and testing.
Customization Support: We offer OEM/ODM services to tailor specifications to your exact needs.
Global Compliance: Products are designed to meet international standards.
Ningbo Saintbond is committed to providing innovative, reliable, and cost-effective sensing solutions. For precise measurement in a tiny package, our mini load cells are engineered to exceed expectations.

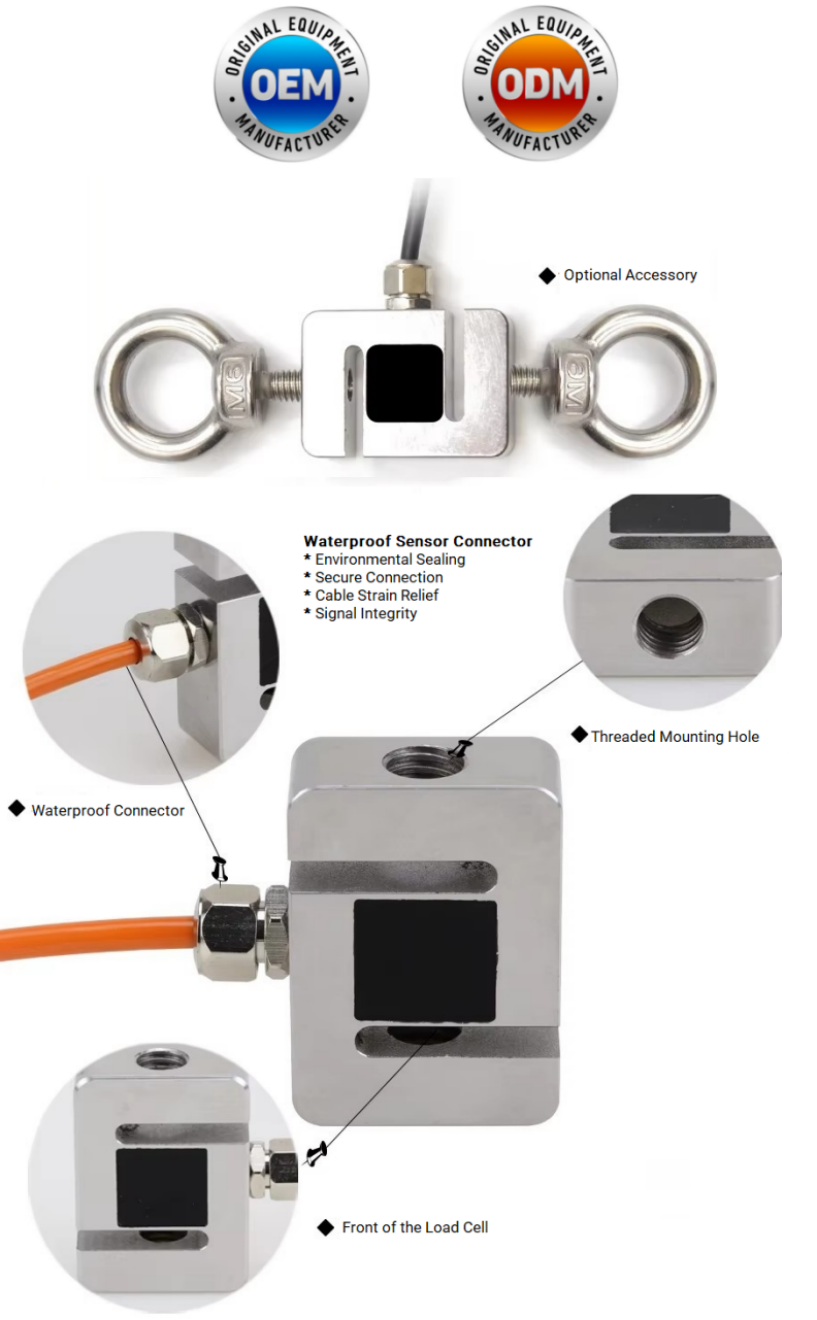

LC2307 Mini Load cell Product Details Display:
