Load Cell for Press Machine
LC401
Alloy Steel and Stainless steel construction,hermetically welded,oil-proof, waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
Column structure, good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
Column structure, good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
Quantity:
LC401 column load cell weigh are available in the capacities 10t to 100 ton load cell and 10Klb to 500Klb.And the customized capacity is available by request. ( 100 ton load cell, load cell for press machine, column load cell weigh )
Alloy Steel and Stainless steel construction,hermetically welded,oil-proof, waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
Column structure, good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
LC401 Load Cell for Press Machine Features:
✅ High accuracy.
✅ Stainless steel construction.
✅ Four columns construction.
✅ Easy installation and reliable performance.
LC401 Load Cell for Press Machine Dimensions Unit: mm
| Cap./Size | A | B | C | D | E | F | G | H | M | SR |
| ( t ) | ( mm ) | |||||||||
| 10~25t | 73 | 82.5 | 12 | 58 | 6.5 | 1.8 | 64 | 31.8 | M12x1.75 | 152 |
| 40~60t | 105 | 127 | 34 | 82.5 | 8 | 11 | 87 | 58.7 | M20x2.5 | 152 |
| 100t | 152.4 | 184.2 | 72.3 | 123.8 | 23.6 | 21.8 | 108.2 | 79.2 | M20x2.5 | 432 |
| 200t | 167.6 | 228.6 | 92 | 136.3 | 10 | 25 | 123 | 93.7 | M20 | 432 |
LC401 Load Cell for Press Machine Technical Parameter:
| Rated Load: | 10/25/40/60/100t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | A: AL, -SS:SS |
| Input Resistance: | 450±5Ω | Cable: | Length=16m~20m |
| Output Resistance: | 481±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Black(Input-), |
| Green(Output+),White(Output-) |

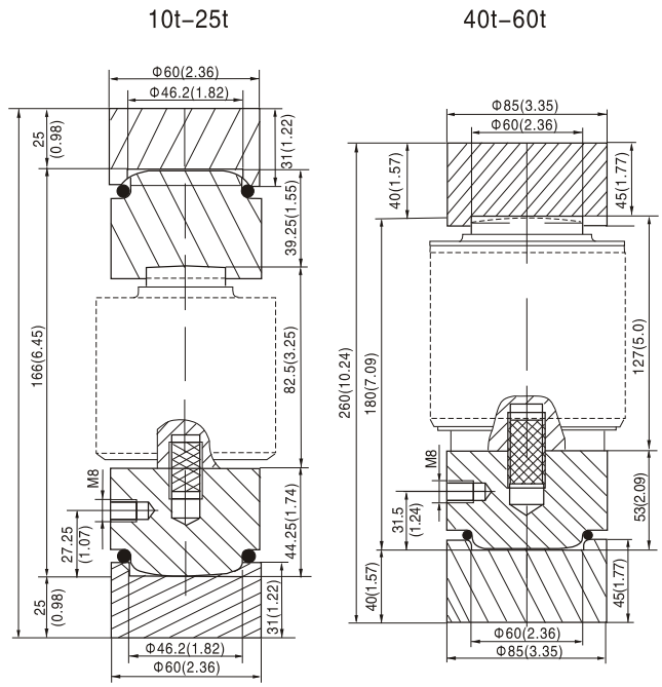

LC401 Load Cell for Press Machine LC401 Part:
LC401 Load Cell for Press Machine Features:
✅ Easy installation, good self-aligning ability anti-reversal ability Stainless steel construction, anti-corrosion can be used under hazardous environments Mainly used for platform scales, automobile testing facilities, electronic truck scales and other electronic weighing devices;

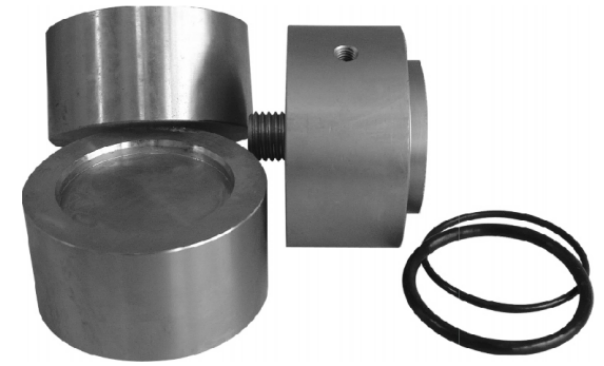

Stainless steel Assembled with: LC14A;
✅ M8 screw hole is for anti-reversal occasion;
