Multi Functional Digital Transmitter With Display
TX01
1:Input mode: 1 strain sensor input<20mV signal, sensor excitation voltage 5.0VDC;
2:Working voltage: 24VDC (18-36V wide voltage), maximum power consumption<6W (the module belongs to high-precision equipment, and the power supply needs a good grounding wire, and cannot share a power supply with the motor, heater and other equipment that are prone to generate power noise);
3:Measurement accuracy: ± 0.1% (FS)/(23 ℃± 5 ℃);
4:Analog output: 4-20mA/4-12-20mA, 0-10V/0-5V/0-5-10V/± 5V/± 10V;
2:Working voltage: 24VDC (18-36V wide voltage), maximum power consumption<6W (the module belongs to high-precision equipment, and the power supply needs a good grounding wire, and cannot share a power supply with the motor, heater and other equipment that are prone to generate power noise);
3:Measurement accuracy: ± 0.1% (FS)/(23 ℃± 5 ℃);
4:Analog output: 4-20mA/4-12-20mA, 0-10V/0-5V/0-5-10V/± 5V/± 10V;
Quantity:

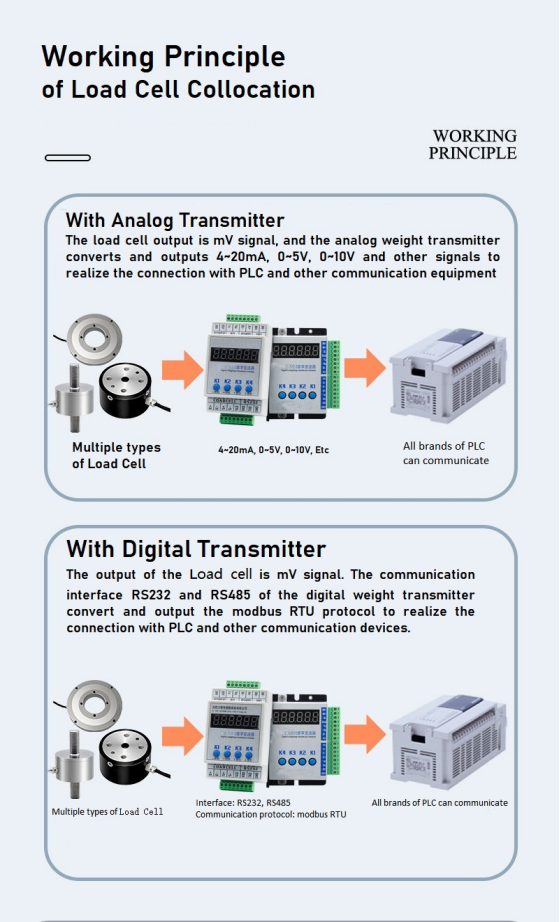

TX01 Multi Functional Digital Transmitter With Display Technical Parameter: ( Multi Functional Digital Transmitter With Display, weighing display, weight scale display)
1:Input mode: 1 strain sensor input<20mV signal, sensor excitation voltage 5.0VDC;
2:Working voltage: 24VDC (18-36V wide voltage), maximum power consumption<6W (the module belongs to high-precision equipment, and the power supply needs a good grounding wire, and cannot share a power supply with the motor, heater and other equipment that are prone to generate power noise);
3:Measurement accuracy: ± 0.1% (FS)/(23 ℃± 5 ℃);
4:Analog output: 4-20mA/4-12-20mA, 0-10V/0-5V/0-5-10V/± 5V/± 10V;
5:Communication interface:
✅ 485 communication (ModBus RTU standard communication protocol, multi machine address range 1~99).
✅ RS232 communication (active transmission).
6:Load capacity:
✅ Analog current output, load impedance<500Ω;
✅ Analog voltage output, load impedance>200KΩ;
7:Temperature and humidity: Working Temperature - 10 ℃~50 ℃,
✅ humidity<85% RH, non condensing;
✅ Storage temperature: - 20 ℃~70 ℃, humidity:<85% RH;
8:Output display: 6-digit LED digital tube display.
1:Input mode: 1 strain sensor input<20mV signal, sensor excitation voltage 5.0VDC;
2:Working voltage: 24VDC (18-36V wide voltage), maximum power consumption<6W (the module belongs to high-precision equipment, and the power supply needs a good grounding wire, and cannot share a power supply with the motor, heater and other equipment that are prone to generate power noise);
3:Measurement accuracy: ± 0.1% (FS)/(23 ℃± 5 ℃);
4:Analog output: 4-20mA/4-12-20mA, 0-10V/0-5V/0-5-10V/± 5V/± 10V;
5:Communication interface:
✅ 485 communication (ModBus RTU standard communication protocol, multi machine address range 1~99).
✅ RS232 communication (active transmission).
6:Load capacity:
✅ Analog current output, load impedance<500Ω;
✅ Analog voltage output, load impedance>200KΩ;
7:Temperature and humidity: Working Temperature - 10 ℃~50 ℃,
✅ humidity<85% RH, non condensing;
✅ Storage temperature: - 20 ℃~70 ℃, humidity:<85% RH;
8:Output display: 6-digit LED digital tube display.

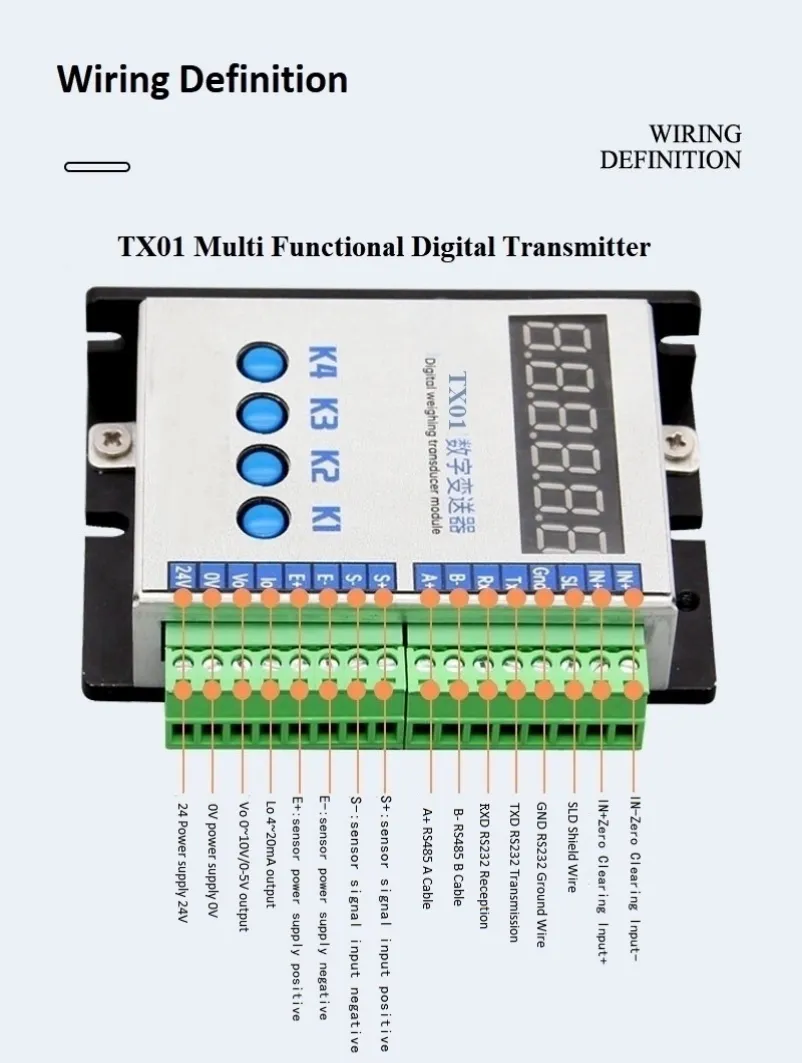

TX01 Weighing Scale Display Panel Description:
✅ Measurement value display window: display real-time measurement values.
✅ Key area: K1 - parameter; K2 - switching; K3 - plus; K4 minus.
✅ Measurement value display window: display real-time measurement values.
✅ Key area: K1 - parameter; K2 - switching; K3 - plus; K4 minus.

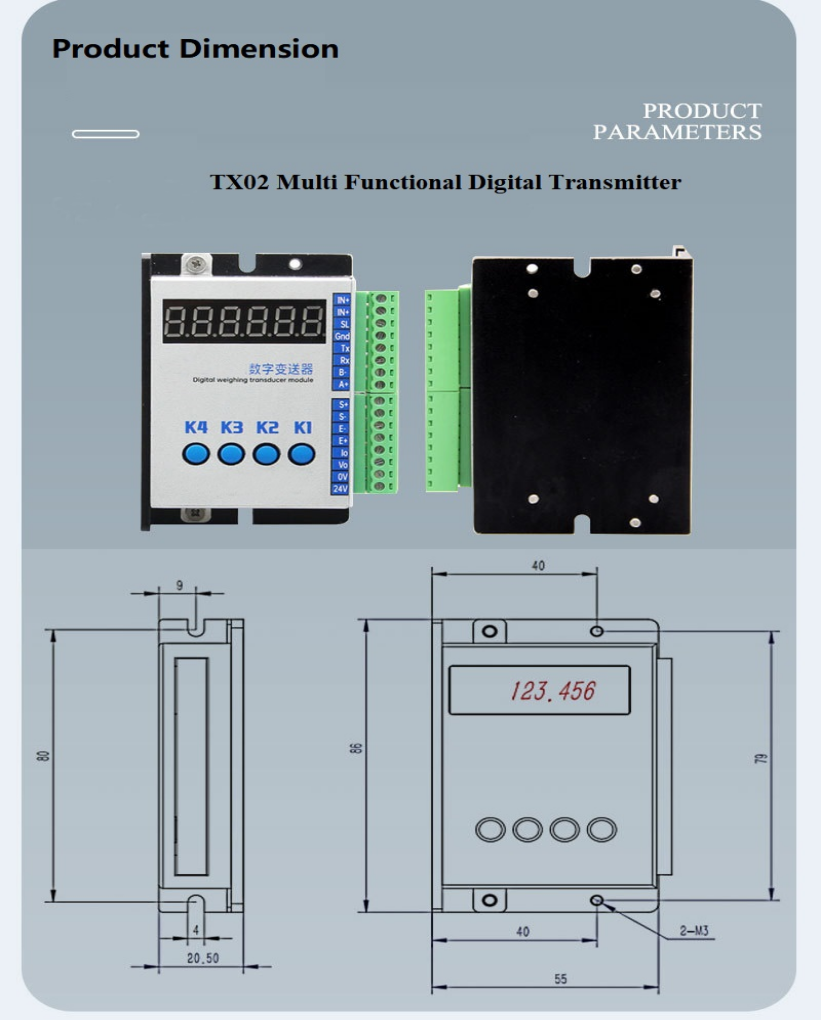

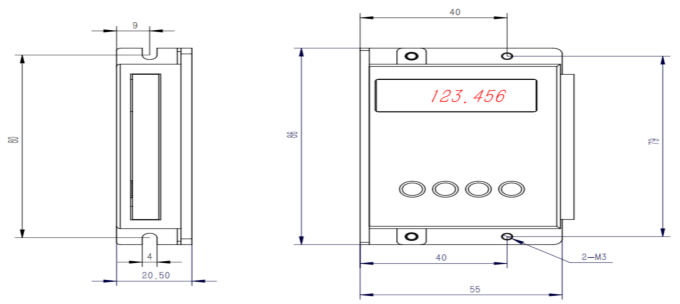

TX01 Weighing Display Dimension:
TX01 Weighing Scale Display Please Note:
✅ Please do not use it on atomic energy equipment, medical devices and other equipment.
✅ There is no power fuse for this instrument. Please set safety circuit breakers such as fuses in the power supply circuit of this instrument
✅ Please do not use outside the specification range of this product.
✅ Please do not use it in flammable and explosive places.
✅ Please avoid installing directly above the instrument (heater, transformer, high-power resistor) with high heat.
TX01 Weighing Display Warning:
When the ambient temperature is above 50℃, please use a fan or cooler to cool, but do not let cold air directly blow to the instrument.
For panel mounted instruments, in order to prevent users from approaching high-voltage parts such as power terminals, please take necessary measures on the final equipment.
The installation, commissioning and maintenance of this product shall be carried out by qualified engineers and technicians.
If the failure or abnormality of this product may cause serious system accidents, please set appropriate protection circuits outside to prevent accidents.
The Company will not bear any direct or indirect losses other than the product itself.
The company reserves the right to change the product instructions without notice.
When the ambient temperature is above 50℃, please use a fan or cooler to cool, but do not let cold air directly blow to the instrument.
For panel mounted instruments, in order to prevent users from approaching high-voltage parts such as power terminals, please take necessary measures on the final equipment.
The installation, commissioning and maintenance of this product shall be carried out by qualified engineers and technicians.
If the failure or abnormality of this product may cause serious system accidents, please set appropriate protection circuits outside to prevent accidents.
The Company will not bear any direct or indirect losses other than the product itself.
The company reserves the right to change the product instructions without notice.
