Mobile Truck Weight Scales
WS1104CD
Ningbo saintbond portable weighbridge for sale for both static and dynamic applications, mobile truck weight scales designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, dot portable truck scales are designed for creating static wheel and axle weighing and dynamic axle weighing stations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Axle scales are knowed as portable weighbridge for sale, mobile truck weight scales, dot portable truck scales, are specialized weighing systems designed to measure the weight of individual vehicle axles or groups of axles, The weighments are completed one axle set at a time and then all the axle weights are summed to provide the total gross weight of the truck. mobile truck weight scales play a crucial role in ensuring compliance with weight regulations and optimizing the safe and efficient transportation of goods.
Ningbo Saintbond is the world’s largest manufacturer of portable weighbridge for sale, mobile truck weight scales, dot portable truck scales in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and dot portable truck scales that provide essential features for multiple industries.

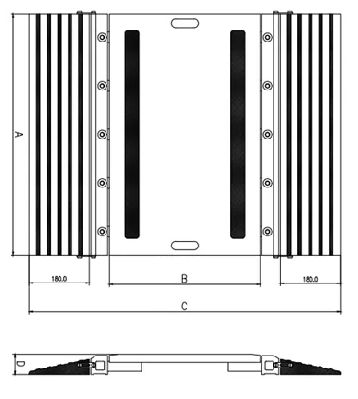

Dimension:mm
| Capacity | A | B | C | D |
| 1~5t | 500 | 400 | 760 | 58 |
| 2~20t | 720 | 450 | 810 | 58 |
| 5~25t | 900 | 500 | 860 | 58 |
Parameter Technical:
| Pad Size | 500×400×58mm | 720×450×58mm |
| Ramp Size | 500×180×45mm | 720×180×45mm |
| Pad Packing | 700×620×120mm | 800×650×120mm |
| Ramp Packing Size | 520×190×180mm | 730×190×180mm |
| Indicator Packing Size | 500×350×240mm | 500×350×240mm |
| Indicator Weight | 9kg | 9kg |
| Pad and Packaging Weight (1Pcs) | 32kg | 46kg |
| Ramp Weight (2 Pcs) | 7.6kg | 10.8kg |
| Single Pad Capacity | 10t | 15t |
| Allowed Axle Load | 20t | 30t |
| Safe Overload | 125% | |
| Ultimate overload | 150% | |
