Manual Lifting Table Trolley
LPT001
Manual Lifting Table Trolley
This heavy-duty manual lifting trolley lifts loads up to 1000kg effortlessly via a hydraulic foot pump. Manual scissor lift trolley is Ideal for workstations or warehouses, it adjusts height from 300mm to 720mm without power. Durable steel frame, 360° swivel casters, and mechanical safety locks ensure stable, portable operation. Trolley lift table Ergonomic solution for material positioning.
This heavy-duty manual lifting trolley lifts loads up to 1000kg effortlessly via a hydraulic foot pump. Manual scissor lift trolley is Ideal for workstations or warehouses, it adjusts height from 300mm to 720mm without power. Durable steel frame, 360° swivel casters, and mechanical safety locks ensure stable, portable operation. Trolley lift table Ergonomic solution for material positioning.
Quantity:
Manual Lifting Table Trolley
This heavy-duty manual lifting trolley lifts loads up to 1000kg effortlessly via a hydraulic foot pump. Manual scissor lift trolley is Ideal for workstations or warehouses, it adjusts height from 300mm to 720mm without power. Durable steel frame, 360° swivel casters, and mechanical safety locks ensure stable, portable operation. Trolley lift table Ergonomic solution for material positioning.
Key Points of Manual Lifting Table Trolley:
✅Hydraulic foot pump operation
✅1000kg capacity, 300-1700mm lift range
✅No electricity required
✅Safety locks + swivel casters
✅Ergonomic material handling
Technical Parameter of Manual Lifting Table Trolley:
| Capacity | Lifitng Height | Tbale Size | Min Height | Pump | Wheel size |
| (kg) | (mm) | (mm) | (mm) | (mm) | |
| 150 | 720 | 700 ×450 ×35 | 210 | Single cylinder | φ100 ×32 |
| 150 | 1200 | 700 ×450 ×35 | 295 | Single cylinder | φ100 ×32 |
| 300 | 900 | 815 ×500 ×50 | 280 | Single cylinder | φ125 ×50 |
| 500 | 900 | 815 ×500 ×50 | 280 | Single cylinder | φ125 ×50 |
| 350 | 1300 | 905 ×500 ×50 | 350 | Single cylinder | φ125 ×50 |
| 350 | 1500 | 905 ×500 ×50 | 350 | Single cylinder | φ125 ×50 |
| 500 | 1500 | 905 ×500 ×50 | 360 | Double cylinder | φ125 ×50 |
| 1000 | 1000 | 1000 ×500 ×55 | 415 | Single cylinder | φ150 ×50 |
| 1000 | 1700 | 1200 ×600 ×80 | 500 | Double cylinder | φ150 ×50 |

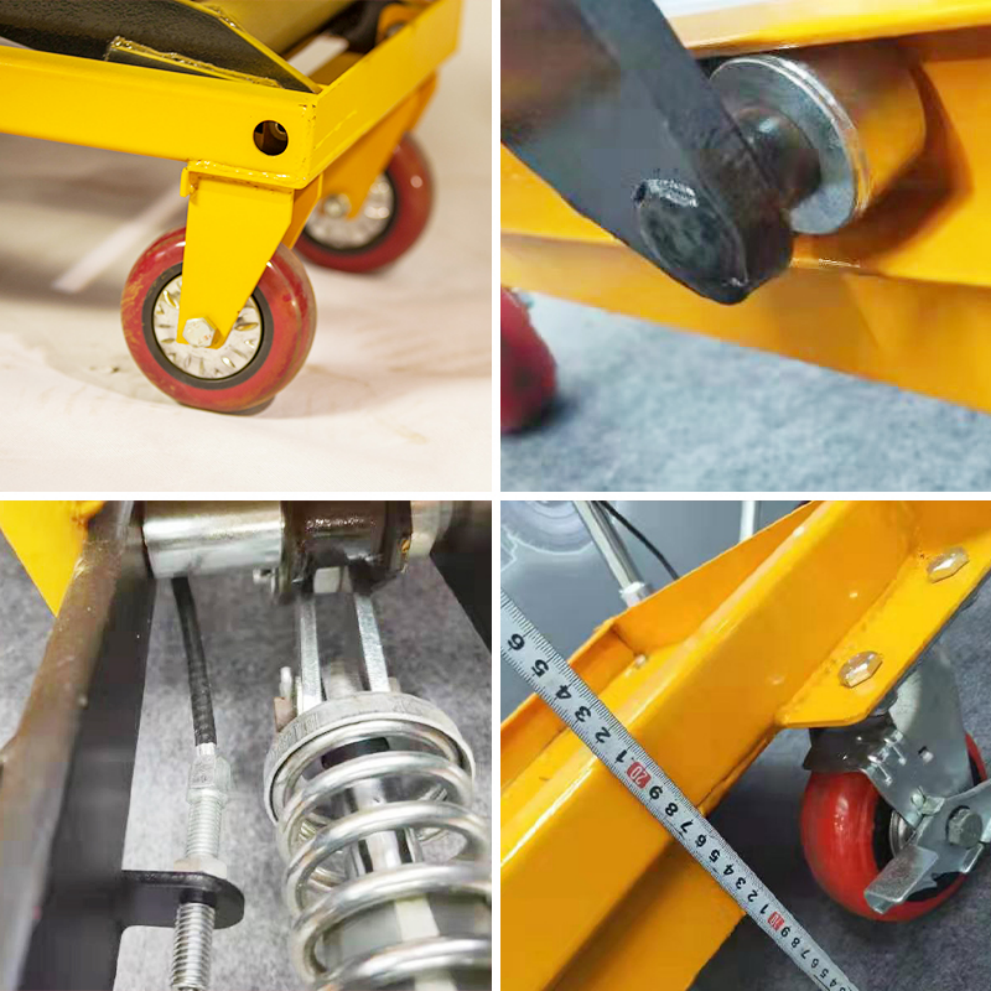

Feature of Manual Lifting Table Trolley:
✅Imported core components oil cylinder (good overall sealing, lifting force);
✅Thickened and strengthened forks (strong load-bearing capacity, corrosion-resistant and not easily deformed);
✅The use of shot blasting process to strengthen the product cleaning embroidery, effectively improve the service life;
