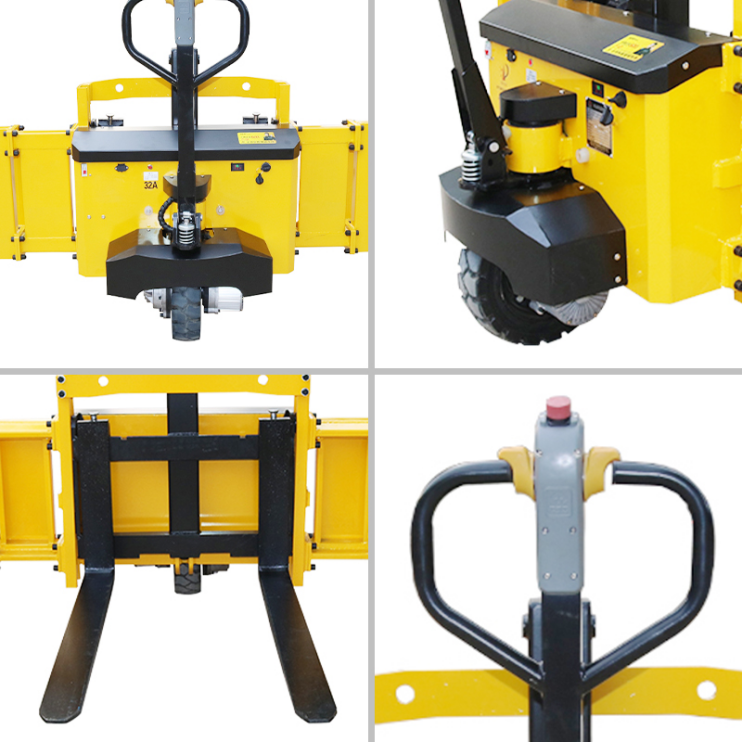

Lifting Pallet Truck
HSL22
Lifting pallet truck is widely used in logistics turnover, warehousing and handling, construction sites, shopping malls, brick factories, factory workshops, etc.
Quantity:
Lifting pallet truck----Conquer Slopes, Lift Heavy Loads!
Engineered for rugged terrain also called lifting pallet truck or scissor pallet lift, our Lifting pallet truck features heavy-duty polyurethane wheels for superior grip and puncture resistance on rocks, mud, and slopes. High capacity forklift's reinforced steel chassis supports loads up to 1–2 tons, while the manual hydraulic pump ensures smooth lifting without power dependency. Integrated slope brake locks prevent rollback on inclines, and the low-center design enhances stability. Ideal for farms, construction sites, orchards, and warehouses with uneven ground. Durable, agile, and built to thrive where standard hand trucks fail.
Technical Parameter:
| Model | Unit | All terrain pallet truck |
| Capacity | kg | 2000 |
| Wheel type | Solid Rubber | |
| Fork ground clearance | mm | 50 |
| Max height | mm | 250 |
| Lifting height | mm | 200 |
| Inner width of fork | mm | 750-1250mm |
| Fork length | mm | 1050 |
| Maximum driving speed full load / no load | km/h | 4/4.5 |
| Climbing slope, full load / no load | % | 5/8 |
| Drive motor | KW | 1.0 |
| Lifting motor | KW | 0.8 |
| Battery voltage / rated capacity | V/Ah | 72v20ah（Optional 30ah） |
| Overall dimension (L X W X h) | mm | 1700 X1550 X 1130 |
| Brake: electronic brake vehicle weight | kg | 430 |
Lifting pallet truck is widely used in logistics turnover, warehousing and handling, construction sites, shopping malls, brick factories, factory workshops, etc.
