Keli ZSFY a 30t
ZSFY Load Cell
The Keli ZSFY A 30T is a fully integrated and high-performance load cell module designed for industrial heavy-duty weighing applications. This complete module solution centers around a robust load cell 30ton sensor, pre-assembled with essential mounting components, offering a reliable and ready-to-install system for accurate force measurement.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: ZSFY
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10~50000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: ZSFY
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10~50000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15-35Day
Quantity:
keli zsfy a 30t, load cell 30ton, load cell module keli zsfy a 30t, load cell 30ton, load cell module keli zsfy a 30t, load cell 30ton, load cell module keli zsfy a 30t, load cell 30ton, load cell module keli zsfy a 30t, load cell 30ton, load cell module
The Keli ZSFY A 30T is a fully integrated and high-performance load cell module designed for industrial heavy-duty weighing applications. This complete module solution centers around a robust load cell 30ton sensor, pre-assembled with essential mounting components, offering a reliable and ready-to-install system for accurate force measurement.

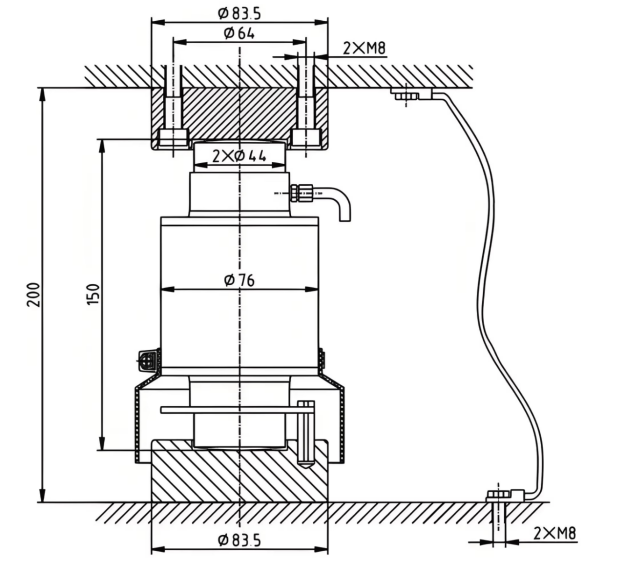

Keli ZSFY a 30t Load Cell Module Dimension: mm
Keli ZSFY a 30t Load Cell Module Technical Parameter:
| Rated Load: | 10/15/20/30/40/50t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Tem. Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Max. Safe Over Load: | 150%F.S |
| Creep Error(30min) | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Output Resistance: | 702±2Ω | Cable: | Length=12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Keli ZSFY a 30t Load Cell Module Key Features & Design:
Integrated load cell 30ton: The core of this load cell module is a high-precision load cell 30ton unit, engineered for outstanding accuracy, long-term stability, and overload protection.
Complete Modular Design: As a load cell module, it typically includes the sensor, mounting brackets, bearing pads, and necessary hardware. This simplifies installation, ensures correct alignment, and reduces on-site assembly time and errors.
Durable & Protected: The load cell 30ton element is manufactured from high-strength alloy steel with a hermetic seal. The overall load cell module is built to withstand harsh industrial conditions such as dust, vibration, and moisture.
Plug-and-Play Functionality: The module design facilitates easy integration into new or existing weighing systems, streamlining the setup process for applications like platform scales and hopper weighing.
Integrated load cell 30ton: The core of this load cell module is a high-precision load cell 30ton unit, engineered for outstanding accuracy, long-term stability, and overload protection.
Complete Modular Design: As a load cell module, it typically includes the sensor, mounting brackets, bearing pads, and necessary hardware. This simplifies installation, ensures correct alignment, and reduces on-site assembly time and errors.
Durable & Protected: The load cell 30ton element is manufactured from high-strength alloy steel with a hermetic seal. The overall load cell module is built to withstand harsh industrial conditions such as dust, vibration, and moisture.
Plug-and-Play Functionality: The module design facilitates easy integration into new or existing weighing systems, streamlining the setup process for applications like platform scales and hopper weighing.
Keli ZSFY a 30t Load Cell Module Typical Applications:
This versatile Keli ZSFY A 30t load cell module is ideal for:
þ Truck scales and axle weighers
þ Industrial tank and silo weighing
þ Large platform scales and floor scales
þ Force monitoring in heavy machinery
This versatile Keli ZSFY A 30t load cell module is ideal for:
þ Truck scales and axle weighers
þ Industrial tank and silo weighing
þ Large platform scales and floor scales
þ Force monitoring in heavy machinery
The Keli ZSFY A 30t load cell module provides a complete, robust, and user-friendly solution for 30-ton capacity weighing. By offering a pre-configured load cell module with a high-quality load cell 30ton sensor at its heart, it guarantees reliable performance, reduces installation complexity, and ensures accurate measurement in demanding industrial environments.
