Keli QS a30t
Keli QS
The Ningbo Saintbond QS A30T is a robust and high-precision load cell designed for heavy-duty industrial weighing applications. With a 30-ton capacity, this sensor utilizes a double-ended shear beam design, making it an ideal solution for platform scales, hopper and tank weighing, as well as process control systems where reliability and accuracy are critical.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: QS
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10~50000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: QS
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 10~50000kg
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15 ~ 35Day
Quantity:
keli qs a30t, loadcell, double ended shear beam keli qs a30t, loadcell, double ended shear beam keli qs a30t, loadcell, double ended shear beam keli qs a30t, loadcell, double ended shear beam keli qs a30t, loadcell, double ended shear beam
The Ningbo Saintbond QS A30T is a robust and high-precision load cell designed for heavy-duty industrial weighing applications. With a 30-ton capacity, this sensor utilizes a double-ended shear beam design, making it an ideal solution for platform scales, hopper and tank weighing, as well as process control systems where reliability and accuracy are critical.

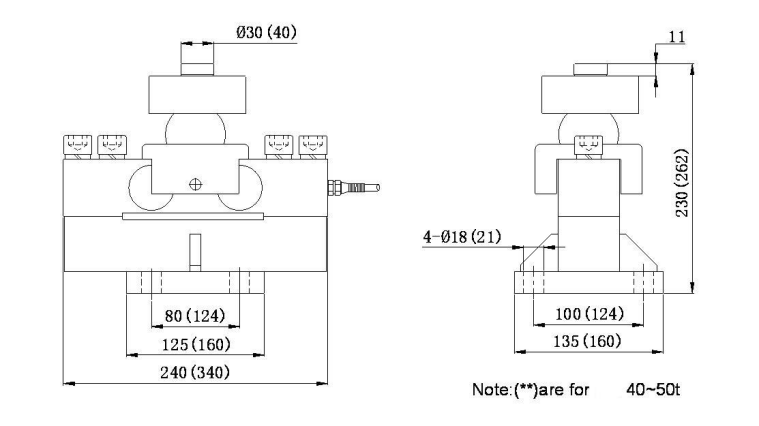

Double Ended Shear Beam keli QS A30t Loadcell Dimension: mm
Double Ended Shear Beam keli QS A30t Loadcell Technical Parameter:
| Rated Load: | 5/10/20/25/30/40/50t | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | Alloy/Stainless Steel |

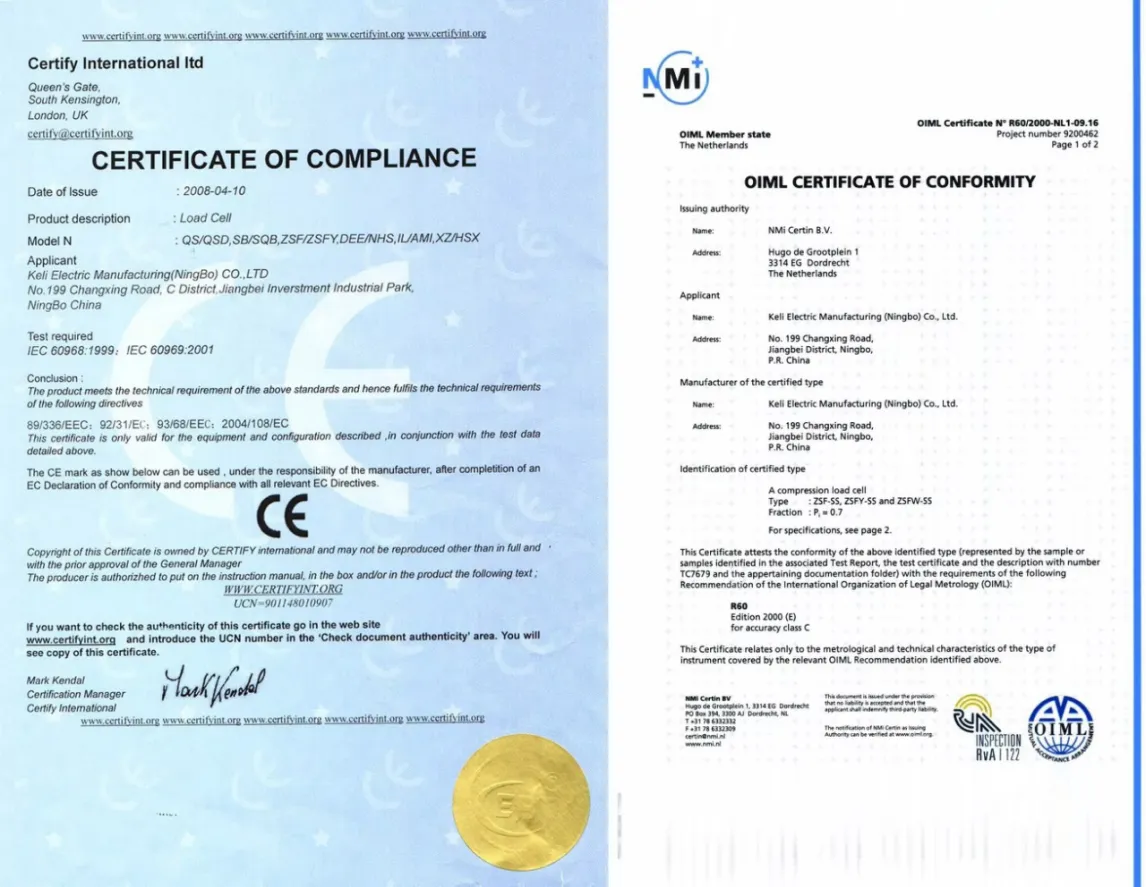

| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Cable: | Length=13m |
Double Ended Shear Beam keli QS A30t Loadcell Key Features & Design:
Double-Ended Shear Beam Structure: As a true double-ended shear beam model, the QS A30T is supported at both ends and loaded in the center. This design provides excellent resistance to side forces and torsional moments, ensuring stable and accurate measurement even under challenging load conditions.
Durable Construction: Manufactured from high-strength alloy steel with a hermetic seal (typically IP67/IP68), this load cell is built to withstand harsh industrial environments, including dust, moisture, and temperature variations.
Easy Installation & Maintenance: The compact and standardized design allows for straightforward installation. Its double-ended shear beam configuration simplifies mounting onto existing structures, reducing setup time and cost.
Double-Ended Shear Beam Structure: As a true double-ended shear beam model, the QS A30T is supported at both ends and loaded in the center. This design provides excellent resistance to side forces and torsional moments, ensuring stable and accurate measurement even under challenging load conditions.
Durable Construction: Manufactured from high-strength alloy steel with a hermetic seal (typically IP67/IP68), this load cell is built to withstand harsh industrial environments, including dust, moisture, and temperature variations.
Easy Installation & Maintenance: The compact and standardized design allows for straightforward installation. Its double-ended shear beam configuration simplifies mounting onto existing structures, reducing setup time and cost.
Double Ended Shear Beam keli QS A30t Loadcell Typical Applications:
þ This Double Ended Shear Beam keli QS A30t Loadcell is commonly used in:
þ Truck and platform scales
þ Industrial silo and tank weighing systems
þ Belt weighers and conveyor systems
þ Force measurement in manufacturing processes
þ This Double Ended Shear Beam keli QS A30t Loadcell is commonly used in:
þ Truck and platform scales
þ Industrial silo and tank weighing systems
þ Belt weighers and conveyor systems
þ Force measurement in manufacturing processes
The Saintbond QS A30T double-ended shear beam load cell offers a reliable and cost-effective sensing solution for high-capacity weighing. Its robust double-ended shear beam construction ensures long-term performance and accuracy, making it a trusted component in demanding industrial applications.
