How to connect the wiring of the Weighing Junction Box

How to connect the wiring of the Weighing Junction Box

Keyword: weighing junction box, ss junction box, 10mm cable junction box

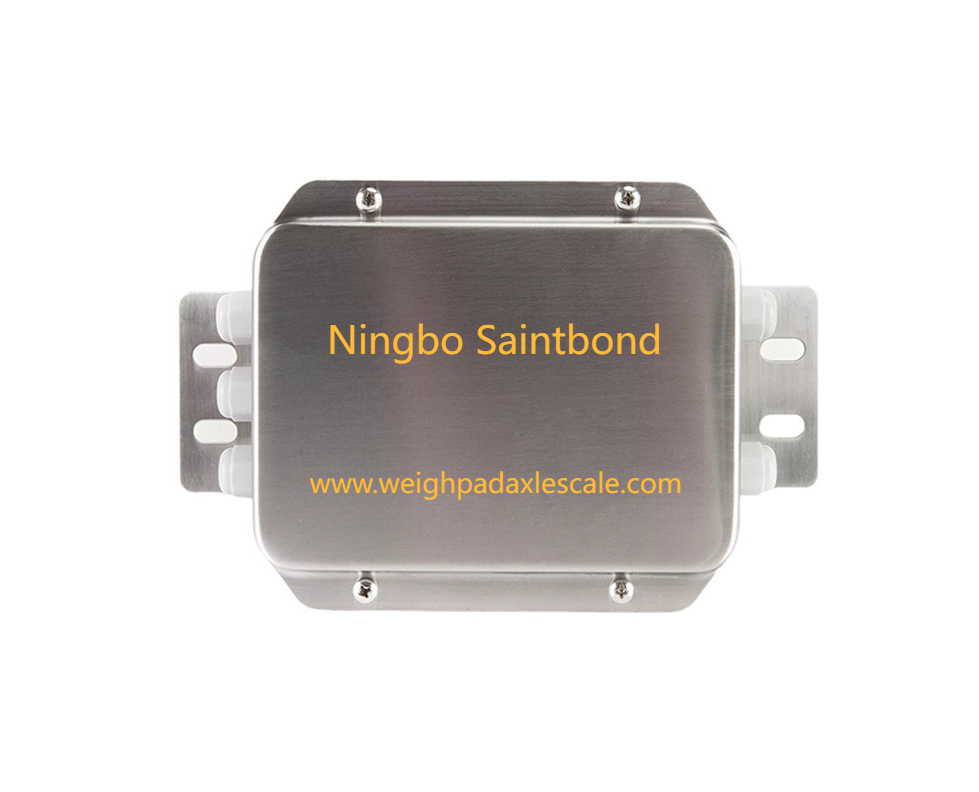

The weighing junction box is an important component that connects the scale sensor with external devices such as weighing displays, computers, etc. It plays a role in connection and protection.

Specifically, the main functions of weighing junction box include:

Transmission signal: The scale sensor transmits weighing data to the weighing display or computer through the weighing junction box, achieving accurate measurement of weight.

Adjust signal: The weighing junction box can adjust the signal output by the sensor to make the weighing data more accurate.

Protecting sensors: The weighing junction box can provide protection for sensors, prevent sensor damage, and ensure the normal operation of the scale system.

In addition, the weighing junction box has the following importance in the scale system:

Connection reliability: Ensure the reliability of the connection between the scale sensor and external devices to prevent interference and loss during data transmission.

Environmental adaptability: Protect sensors from damage caused by external environmental influences.

If the digital weighing sensor junction box in the weighing system malfunctions or has poor connections, it will cause the weighing system to not work properly, affecting the accuracy and stability of the data. Therefore, when choosing a weighing system, attention should also be paid to the quality and performance of the junction box.

The wiring connection steps for the weighing junction box are as follows:

Preparation: First, fix 10mm cable junction box in the appropriate position on the scale body and open the top cover of the 10mm cable junction box. Thread the cable of the weighing sensor and the instrument signal cable into the corresponding interface of the junction box.

Connecting cables: Connect all cables according to the instructions, ensuring that the cables are connected to the correct pads or terminals. For four core or six core cables, distinguish positive and negative excitation power supplies, positive and negative feedback, and positive and negative signals according to color codes to ensure that they are not connected incorrectly.

Sealing and fixing: Tighten all nuts and block unused interfaces with sealing rubber gaskets or putty. At the same time, connect the outer shielding of all cables to the grounding column of the junction box. After ensuring that the input and output wires in the junction box of the digital weighing sensor are connected, tighten, secure, and seal the joints, place desiccants, and do a good job of moisture prevention.

Attention:

Moisture proof treatment: After the wiring is completed, put in a desiccant and do a good job of moisture-proof to prevent moisture from affecting the use of the digital weighing sensor ss junction box.

Grounding treatment: Ensure effective grounding to prevent damage to the electronic truck scale during lightning strikes.

Sealed joint: Tighten the waterproof joint to ensure that the wires are not loose.

Fixed position: The position of the junction box must be fixed and cannot be moved arbitrarily.

By following the above steps and precautions, it can be ensured that the wiring of the digital weighing sensor ss junction box is correctly connected, ensuring the normal use of the scale.
