How to adjust the angle difference of the weighing sensor

How to adjust the angle difference of the weighing sensor

Keyword: angle difference of the weighing sensor, scales plus junction box，scales plus junction box supplier

The angle difference of a weighing sensor refers to the difference between the measured value and the true value caused by external factors or equipment itself during the measurement process of the weighing sensor. This difference is usually caused by factors such as the installation angle of the sensor, temperature changes, vibration, and electromagnetic interference.

The adjustment of the angle difference of the weighing sensor usually requires following the following steps:

1. Adjust the weighing sensor horizontally to the optimal state to avoid any tilting. If the installation conditions limit the ability to fully adjust the level, error compensation can be used to improve measurement accuracy.

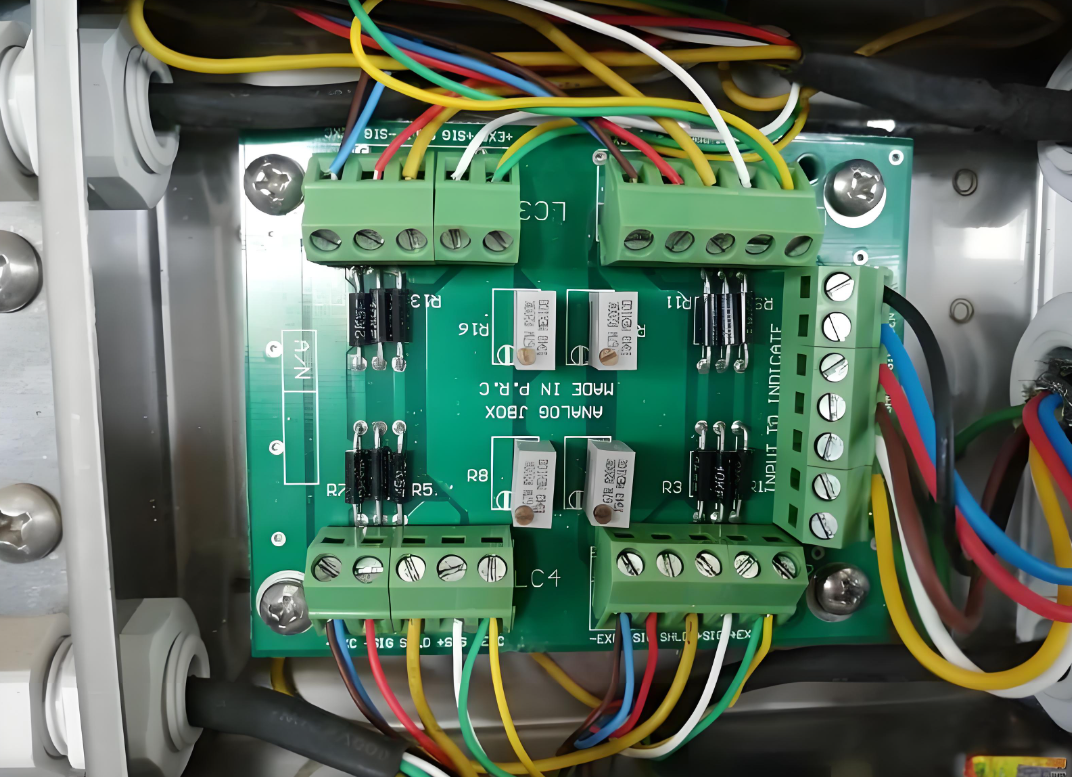

2. Adjust the angle difference of the weighing sensor junction box, open the junction box and disconnect all connecting wires, and use a magnet to adjust and compensate for the magnetic field. With scales plus junction box, The common way is to use positional correspondence to replace the original coils A and B with three mutually perpendicular coils, and compensate for the unbalanced force caused by tilt by applying additional coils.

3: If there are still errors in the adjusted and compensated sensor, compensation can be achieved by adjusting the internal linear potentiometer or replacing the strain gauge. In some cases, the output of the sensor can also be processed, including amplification, compensation, etc., to eliminate errors.

After adjustment, it is necessary to check the stability of the sensor and ensure its long-term reliable operation. In addition, different weighing sensors have different adjustment methods, which need to be operated according to specific models and product instructions. Please note that these steps may vary depending on the model and manufacturer of the sensor, so it is important to carefully read the relevant documentation or consult a professional before operating.

Ningbo Saintbond is scales plus junction box supplier, Please contact with us if you need.
