Fixed Axle Load Scale
WS1179-2
Fixed Axle Load Scale is widely applied to weighing works in transportation, construction, energy, environmental protection, and other low-value materials industry, Fixed Axle Weighing Scale Weigh In Motion can be installed in a shallow or deep pit for a permanent vehicle weighing solution, mobile weighbridge price consists of static or dynamic axle load scales that are usually installed directly in the road. Unlike traditional weighbridges, an axle load scale can determine the weight for each individual axis.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:

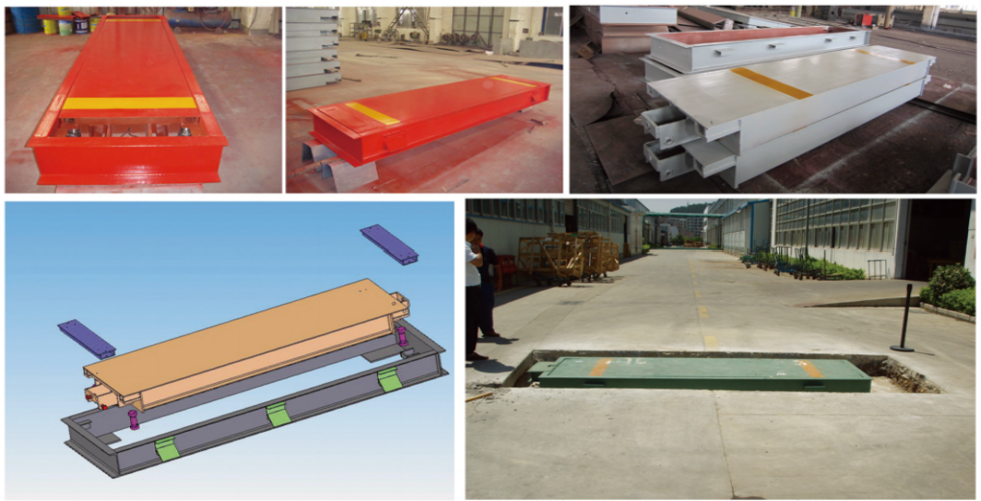

Fixed Axle Load Scale with steel structure, which can be fixed on site, V can be easily moved by forklift when it needs to be moved, without foundation; The mobile weighbridge price weighing table adopts a structural form in which multiple sealing sensors are embedded at the bottom of the steel weighing table, with high weighing accuracy and excellent sealing.
Fixed Axle Load Scale is a measuring device that measures the axle (group) of the vehicle, and then obtains the weight (total weight) of the whole vehicle through accumulation, Fixed Axle Weighing Scale Weigh In Motion with reinforced platform which allows you to calculate the weight of a vehicle in transit, summing the various axles, weighed dynamically. mobile weighbridge price are designed for a flush floor installation.
The Fixed Axle Weighing Scale Weigh In Motion can be used for either weighing in motion or as a static scale, Fixed Axle Load Scale platform which allows you to calculate the weight of a vehicle in transit, summing the various axles.
| Model | WS1179 | ||
| Size(WxL) | 3.2mx0.8m | 3.2mx2.2m | 3.2mx3.4m |
| Capacity | 30t | 50t | 80t |
| Static precision | Class II | ||
| Dynamic precision | Higher than 1/200 | ||
| Safe overload | 150% F.S | ||
| Weighing speed | ≤5km/h | ||
| Power | AC and DC power supply | ||
| Features: |
| 1:Applicable for occasions that have no high precision requirement, such as overload detection, logistics loading; |
| 2:Occupying small space; |
| 3:Static and dynamic dual-use; |
| 4:With a special designed cover for easy installation and maintenance; |
| 5:The testing system for overloading can be combined when the axle weigher equips with the light curtains, ensing loops, tyre discriminator,surveillance cameral system and central control system; |
