Fixed Axle Weigher
WS1179
Fixed Axle Weigher consists of static or dynamic axle load scales that are usually installed directly in the road. Unlike traditional weighbridges, an axle load scale can determine the weight for each individual axis, Fixed and Portable Axle Scales is widely applied to weighing works in transportation, construction, energy, environmental protection, and other low-value materials industry, portable weighbridge for sale can be installed in a shallow or deep pit for a permanent vehicle weighing solution.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:

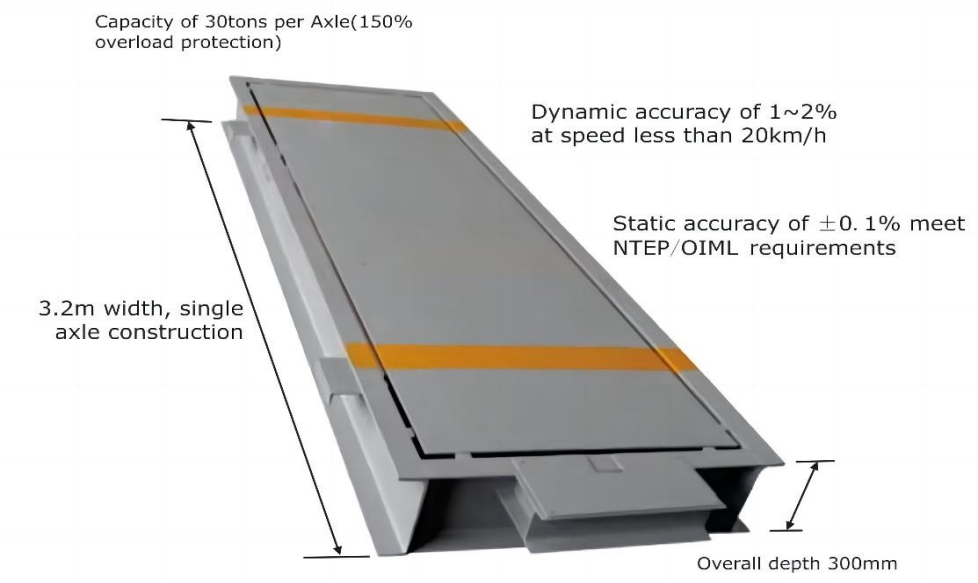

Fixed Axle Weigher with steel structure, which can be fixed on site, Fixed Axle Weigher can be easily moved by forklift when it needs to be moved, without foundation; The Fixed and Portable Axle Scales weighing table adopts a structural form in which multiple sealing sensors are embedded at the bottom of the steel weighing table, with high weighing accuracy and excellent sealing.
portable weighbridge for sale is a measuring device that measures the axle (group) of the vehicle, and then obtains the weight (total weight) of the whole vehicle through accumulation, Fixed and Portable Axle Scales with reinforced platform which allows you to calculate the weight of a vehicle in transit, summing the various axles, weighed dynamically. Fixed Axle Weigher are designed for a flush floor installation.
The system of Fixed and Portable Axle Scales can be used for either weighing in motion or as a static scale, Fixed and Portable Axle Scales platform which allows you to calculate the weight of a vehicle in transit, summing the various axles.
| Model | WS1179 | ||
| Size(WxL) | 3.2mx0.8m | 3.2mx2.2m | 3.2mx3.4m |
| Capacity | 30t | 50t | 80t |
| Static precision | Class II | ||
| Dynamic precision | Higher than 1/200 | ||
| Safe overload | 150% F.S | ||
| Weighing speed | ≤5km/h | ||
| Power | AC and DC power supply | ||
| Features: |
| 1:Applicable for occasions that have no high precision requirement, such as overload detection, logistics loading; |
| 2:Occupying small space; |
| 3:Static and dynamic dual-use; |
| 4:With a special designed cover for easy installation and maintenance; |
| 5:The testing system for overloading can be combined when the axle weigher equips with the light curtains, ensing loops, tyre discriminator,surveillance cameral system and central control system; |
