Explosion Proof Electronic Crane
WS2601-Ex
Explosion Proof Crane Scale engineered for hazardous zones (Zone 0/1/21/22) with flammable gases, vapors, or combustible dust, this Explosion Proof Crane Scale achieves intrinsic safety via ATEX/IECEx Ex ia IIC T4 Ga certification. Its stainless-steel sealed housing eliminates spark risks, while 0.03% high-precision weighing (up to 300t) ensures accuracy.
Quantity:
Explosion Proof Crane Scale engineered for hazardous zones (Zone 0/1/21/22) with flammable gases, vapors, or combustible dust, this Explosion Proof Crane Scale achieves intrinsic safety via ATEX/IECEx Ex ia IIC T4 Ga certification. Its stainless-steel sealed housing eliminates spark risks, while 0.03% high-precision weighing (up to 300t) ensures accuracy. (Intrinsically Safe Crane Scales, Explosion Proof Electronic Crane, Explosion Proof scale crane)
Intrinsically Safe Crane Scales uses intrinsically safe batteries, sensors and instruments to form a direct view explosion-proof electronic hanging scale with intrinsically safe function, which is very suitable for use in explosive dangerous places.
Explosion Proof scale crane features include overload cutoff, IP67-rated dust/water resistance, military-grade shockproof sensors, and anti-interference technology.
Explosion Proof Electronic Crane Ideal for refineries, mining, chemical plants, and grain silos. Supports remote display/control for safe operation, enabling reliable lifting in explosive atmospheres without shutdowns.
Key Advantages
✔️ ATEX/IECEx Certified (Ex ia) | ✔️ 0.03% Accuracy | ✔️ 300t Capacity
✔️ Spark-Proof Construction | ✔️ Overload Protection | ✔️ Remote Monitoring
Technicla Parameter:
| Product No. | Capacity | Division | N.W | Package Size |
| (Ton) | (kg) | (kg) | (m) | |
| WS2601-Ex(1~3) | 1~3t | 0.2/0.5/1 | 15 | 242×290×458 |
| WS2601-Ex-5 | 5t | 2/1 | 20 | 242×290×564 |
| WS2601-Ex-10 | 10t | 5/2 | 25 | 242×290×768 |
| WS2601-Ex-15 | 15t | 10/5 | 32 | 242×290×768 |
| WS2601-Ex-20 | 20t | 10/5 | 38 | 242×290×768 |
✅Explosion proof sign: EX IB Ⅱ CT5;
✅Accuracy grade: III;

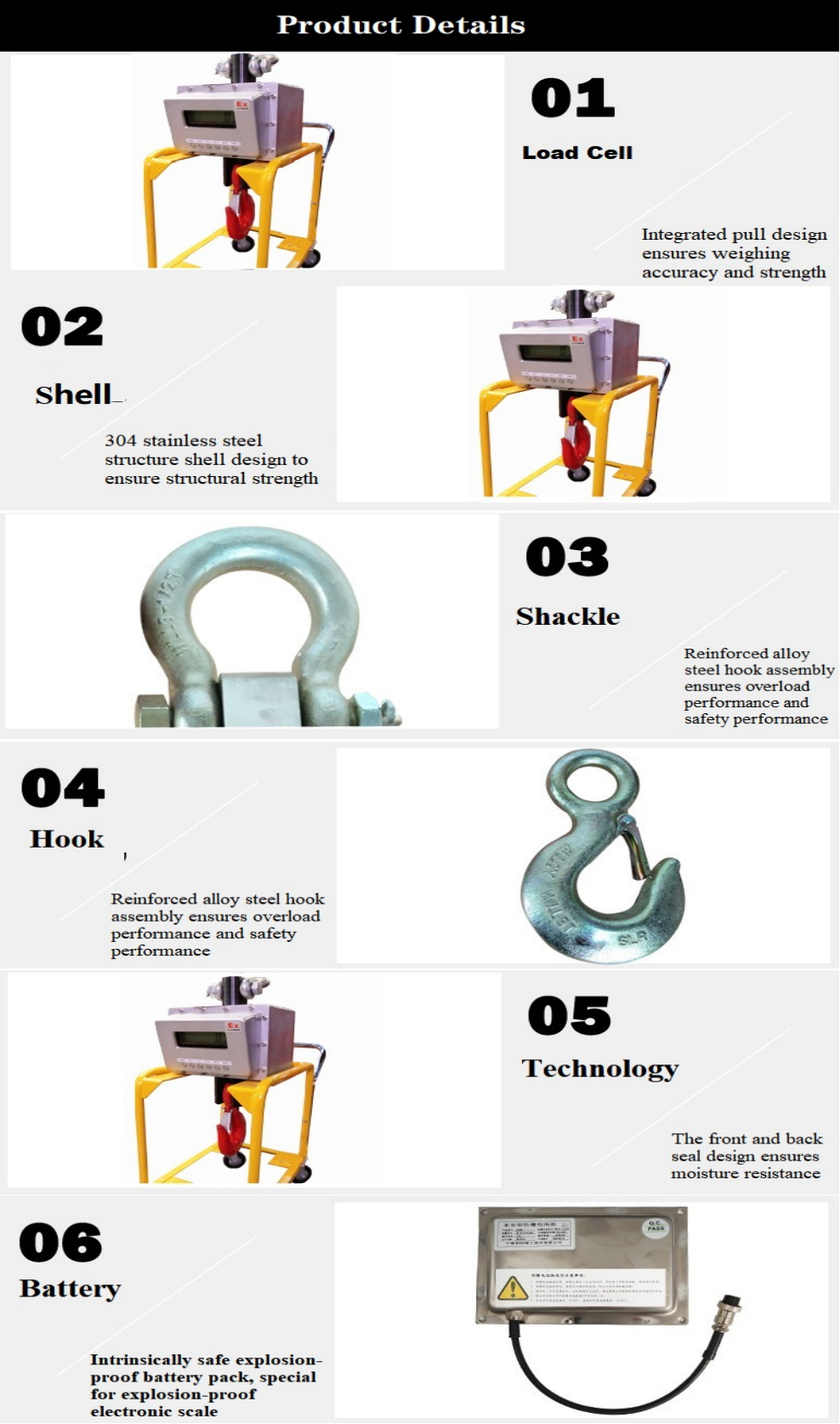

✅Main components: stainless steel scale body, main board, intrinsically safe sensor (ex Ⅱ CT6), hook, lifting ring, intrinsically safe battery pack (code e0823);
✅Weighing range: 100kg~30t;
✅Display resolution: 1000~30000;
✅Indexing value: 0.001~50;
✅Safety overload: 150% FS;
✅Display mode: 6-bit segment code LCD, word height 30mm;
✅Charging mode: remove the battery pack and charge in the safe area;
✅Standby time: about 70 hours at full charge;
Product Function:
✅Setting zero, peeling, accumulating, weighing, storing and preset tare weight;
✅Maintenance function: peak value maintenance, data maintenance and automatic maintenance;
✅Locking weight function;
✅Store 10 times of weighing data, shut down and save;
✅Power saving function, idle mode and automatic shutdown;
✅It has the function of under voltage indication and under power shutdown;
✅Infrared remote control operation;
✅Communication interface: RS232 / RS485 (optional);
