Crane Hook Scales
WS2004
Crane hook scales: Accurately weigh heavy loads suspended from cranes with our heavy-duty overhead crane scale. crane hook scales' features a bright display for clear readings, robust construction for industrial environments, and high-precision sensors.crane hook scales Ideal for shipping, construction, and manufacturing. Lifting scales ensure safety and efficiency in your lifting operations.
Quantity:
Crane hook scales: Accurately weigh heavy loads suspended from cranes with our heavy-duty overhead crane scale. crane hook scales' features a bright display for clear readings, robust construction for industrial environments, and high-precision sensors.crane hook scales Ideal for shipping, construction, and manufacturing. Lifting scales ensure safety and efficiency in your lifting operations. (crane hook scales, crane scale 1000kg, o scale crane)
Features:
Crane hook scales WS2004 Multi-weighing units: Kg, lb, N are selectable, generally kg is the default unit. Multi-function operation: Tare; Zero; Auto zero tracking; Total; Hold; Overload warning, Oration through remote controller functions. User-friendly design: Cast aluminum housing for maximum protection; Large red 5 digit LED display (digit height: 30mm ); Battery Operated with low battery indication; Automatic switch-off power-saving function.

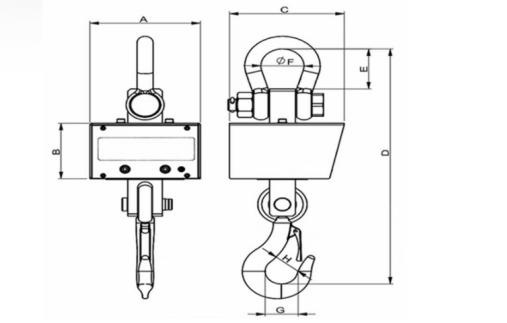

Dimentions:
| Cap. | A | B | C | D | E | F | G | H | N.W | G.W |
| (Kg) | (mm) | (kg) | (kg) | |||||||
| 1000 | 195 | 125 | 200 | 460 | 95 | 54 | 45 | 38 | 10 | 12 |
| 2000 | 195 | 125 | 200 | 460 | 95 | 54 | 45 | 38 | 10 | 12 |
| 3000 | 195 | 125 | 200 | 460 | 95 | 54 | 45 | 38 | 10 | 12 |
| 5000 | 195 | 125 | 200 | 560 | 120 | 78 | 56 | 48 | 14 | 16 |
| 10000 | 195 | 125 | 200 | 620 | 125 | 90 | 72 | 62 | 22 | 24 |
| 15000 | 220 | 150 | 230 | 720 | 125 | 96 | 80 | 72 | 35 | 45 |
| 20000 | 260 | 190 | 320 | 820 | 145 | 122 | 102 | 86 | 60 | 70 |
| 30000 | 260 | 190 | 320 | 960 | 155 | 140 | 122 | 105 | 88 | 100 |
| 40000 | 320 | 290 | 360 | 1360 | 280 | 195 | 150 | 130 | 220 | 247 |
| 50000 | 320 | 290 | 360 | 1360 | 280 | 195 | 150 | 130 | 220 | 247 |
Main Technical Data:
| Standard: | According to OIML class III | ||
| Display: | 30mm (1.2'') 5digits LCD/LED | ||
| Zero Range: | 4% F.S. | ||
| Tare Range : | 20% F.S. | ||
| Stable Time: | ≤10 seconds | ||
| Overload Indication: | 100% F.S. + 9e | ||
| Max. Safety Load: | 125% F.S. | ||
| Ultimate Load: | 400% F.S. | ||
| Battery Life: | ≥70 hours | ||
| Battery Type: | Fully sealed Lead-Acid battery, 6V/4.5Ah | ||
| Adapter: | DC8.5V/1000mA | ||
| Operating Temp.: | - 10 ℃ ~ + 40 ℃ | ||
| Operating Humidity: | ≤85% RH under 20 ℃ |
Specification:
| Model | Max Cap. | Min. Weigh | Division |
| (Kg) | (Kg) | (Kg) | |
| WS2004-1 | 1000 | 0.5 | 0.2 |
| WS2004-2 | 2000 | 1 | 0.5 |
| WS2004-3 | 3000 | 1 | 0.5 |
| WS2004-5 | 5000 | 2 | 1 |
| WS2004-10 | 10000 | 5 | 2 |
| WS2004-15 | 15000 | 5 | 2 |
| WS2004-20 | 20000 | 10 | 5 |
| WS2004-30 | 30000 | 30 | 10 |
| WS2004-40 | 40000 | 40 | 20 |
| WS2004-50 | 50000 | 50 | 20 |
