Electric Scissor Lift Trolley
LPT002

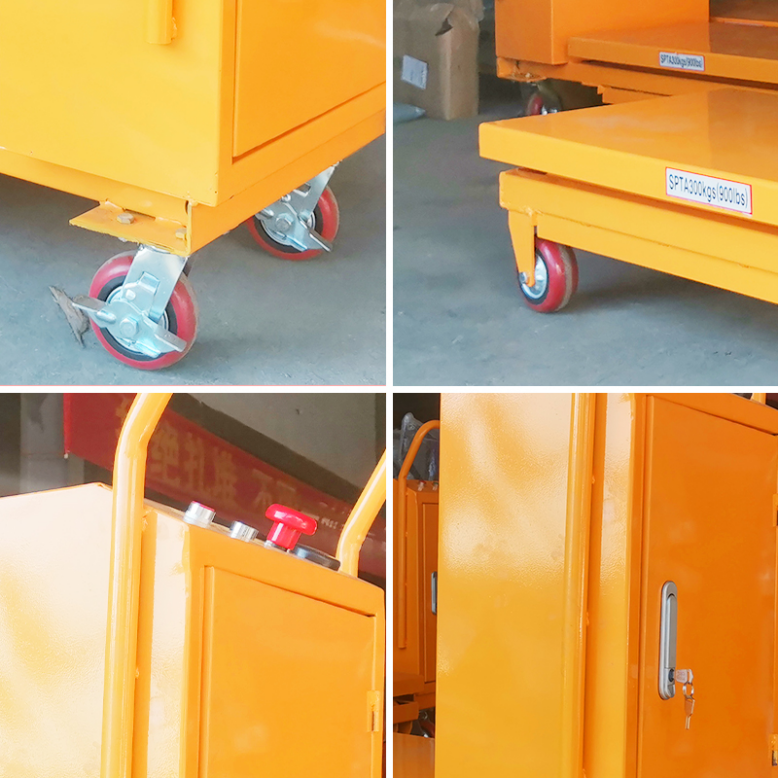

The Electric Scissor Lift Trolley delivers powerful, hands-free vertical lifting for demanding industrial environments. Powered by a rechargeable 24V DC motor, electric lift trolley effortlessly elevates loads up to 1000kg through a smooth scissor mechanism, with adjustable heights typically ranging from 900mm to 4000mm.Lift trolleys's Key features include a robust steel platform, intuitive push-button controls, 360° swivel casters with brakes, and automatic safety locks. Designed for continuous operation in warehouses, assembly lines, and logistics centers, it eliminates manual lifting while ensuring precision positioning. IP54-rated components provide dust/water resistance. Includes battery indicator and overload protection for enhanced productivity and safety.
Quantity:
The Electric Scissor Lift Trolley delivers powerful, hands-free vertical lifting for demanding industrial environments. Powered by a rechargeable 24V DC motor, electric lift trolley effortlessly elevates loads up to 1000kg through a smooth scissor mechanism, with adjustable heights typically ranging from 900mm to 4000mm.Lift trolleys's Key features include a robust steel platform, intuitive push-button controls, 360° swivel casters with brakes, and automatic safety locks. Designed for continuous operation in warehouses, assembly lines, and logistics centers, it eliminates manual lifting while ensuring precision positioning. IP54-rated components provide dust/water resistance. Includes battery indicator and overload protection for enhanced productivity and safety.
Technical Parameter of Electric Scissor Lift Trolley :
| Model | Capacity | Lifitng Height | Table Size | Min Height | Motor | Cylinder | Battery |
| (kg) | (mm) | (mm) | (mm) | (v/kw) | (AH) | ||
| DP300/500 | 300/500 | 900 | 950×500×50 | 280 | 12/0.8 | 75×1 | 60 |
| DPS350/500 | 350/500 | 1500 | 905×500×50 | 360 | 12/0.8 | 65×1 | 60 |
| DPS500-2 | 500 | 2000 | 905×500×50 | 480 | 12/0.8 | 75×1 | 60 |
| DP800/1000 | 800/1000 | 1000 | 1200×600×80 | 380 | 12/1.6 | 65×2 | 120 |
| DPS800/1000 | 800/1000 | 1700 | 1200×600×80 | 500 | 12/1.6 | 65×2 | 120 |
| SJY35-200 | 350 | 2000 | 1200×600×50 | 360 | 12/0.8 | 65×1 | 100 |
| SJY30-300 | 300 | 3000 | 1250×600 | 650 | 12/0.8 | 75×1 | 100 |
| SJY30-400 | 300 | 4000 | 1250×600 | 750 | 12/0.8 | 75×1 | 100 |
Core Advantages of Electric Scissor Lift Trolley :
✅ Electric Operation: Quiet, zero-emission lifting
✅ 1000kg Capacity: Heavy-duty performance
✅ 4000mm Max Height: Extended vertical range
✅ Safety Locks + Braked Casters: Secure stability
✅ IP54 Rating: Reliable in harsh conditions
Electric Scissor Lift Trolley Ideal for: Pallet handling, production line feeding, equipment maintenance.
Feature of Electric Scissor Lift Trolley :
✅Adopt hight quality pump station,made the lifting steady and powerful;
✅Adopt VARTA maintenance-free battery,low cost and high efficient;
✅Built-in charger，specification:220V,50Hz;
✅Design with overload protection,safe and reliable;
✅Installed digital display and low-voltage alarm lamp;
✅Conform to european EN1570:1999 standard;
