Dynamic Axle Weighing

WS1199-1

Dynamic axle weighing are an advanced wireless, compact, portable axle weigher, ideal for maximising vehicle load, portable axle weigh pads are ideal for weighing small and large vehicles, this can include vans, cars, trucks, tractor trailers, portable wheel load scales providing a variety and ease of vehicle load monitoring solutions and survey.

Delivery

FOB

minimum order

1 set

Supply Ability

20000set / Week

Country of Origin

Ningbo,China

Stock Time

5~30Day

Quantity:

Contact Now

add to cart

Dynamic axle weighing from Ningbo Saintbond are designed to accurately and efficiently measure the weight of vehicles in motion. The data collected from portable axle weigh pads can be used to enforce weight regulations, monitor vehicle performance, and identify potential safety hazards on the road. portable wheel load scales are an innovative solution that can help streamline the weighing process for commercial vehicles, increasing efficiency and reducing congestion at a facility or on roads and highways.

Dynamic axle weighing provides a fast and accurate portable wheel load scales facility for vehicles of all sizes, weights and axle configurations.

Dynamic axle weighing is a fast, accurate and economical way to monitor commodities and truck load limit weights that are coming into or leaving your facilities, portable axle weigh padsfor hands free operation. Quickly drive across the in motion axle scale to get an accurate weight of each axle and gross weight.

Dynamic axle weighing consists of static or portable wheel load scales that are usually installed directly in the road. Unlike traditional weighbridges, an portable wheel load scales can determine the weight for each individual axis. Dynamic axle weighing are used to convert the signal generated by the sensor installed in the ground into weight.

Axle Scale for Highways

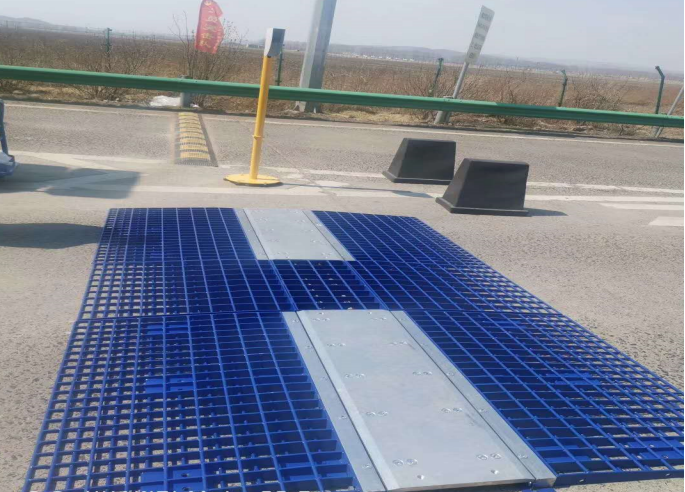

The WS1192Dynamic axle weighing is customized and developed for the highway entrance overload control project. After the transportation department requires all trucks to undergo overload detection on highways, each highway intersection is equipped with overload detection equipment. However, due to various reasons, currently only one to two detection lanes are installed on the entrance lane. When the detection equipment malfunctions or the traffic volume suddenly increases, traffic congestion or even inability to detect may occur, At this point, it is necessary to have backup detection equipment that can quickly add temporary lanes or replace faulty ones. In response to this situation, our company has developed a high-speed return dedicated movable axle scale weighing instrument as an emergency backup equipment.

This Dynamic axle weighing supports protocol customization and can seamlessly connect with existing over limit systems. It thickens the weighing platform, improves its impact resistance, and places the instrument directly in the toll booth, adding laser separation function; It can automatically recognize vehicle models and reverse functions, achieving seamless switching with existing equipment. It is an ideal backup over limit detection equipment for highway entrance overload control.

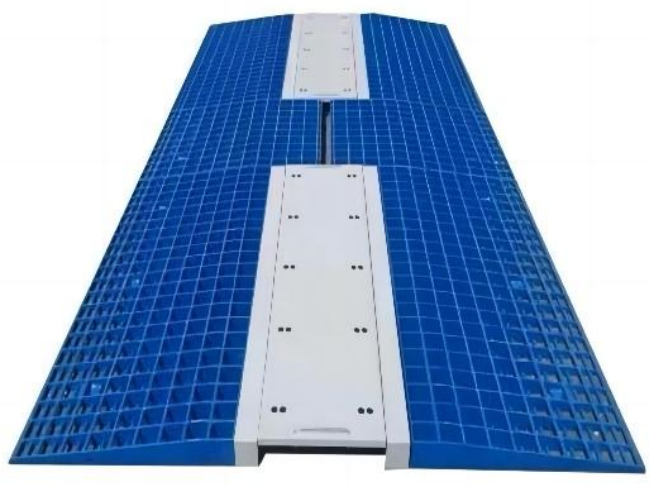

The portable wheel load scales plate and slope material structure have been redesigned and upgraded. The portable wheel load scales plate uses new aviation alloy materials, which increase thickness and reduce weight, and has a mesh weaving structure. Therefore, this set of mobile car weighing instruments is easy to operate, has better load-bearing and waterproof performance, is lightweight and easy to carry and transport.

Weighing Capacity:

Wheel weight: 0-20 tons Axle weight: 0-40 tons Total weight: 0-100 tons

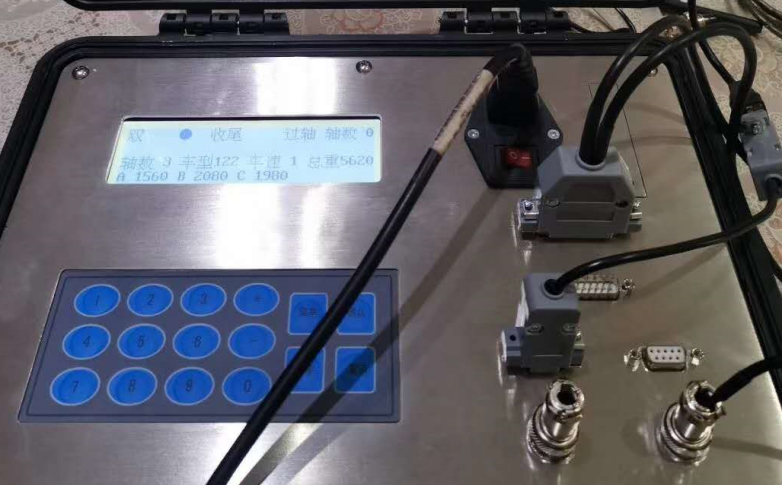

Display: 240 x 120 LCD dot matrix to form a Chinese menu.

3: 24 bit high-speed A/D conversion, conversion speed: 1000 times/second;

4: Accuracy: Static: ≤ 20% F.S ± 0.3% F.S, ＞ 20% F.S ± 0.5% F.S;

Dynamic: ≤ 20% F.S ± 1% F.S,>20% F.S ± 3% F.S;

5: Recommended speed: 1-10 kilometers per hour;

6: Load Cell Power Supply: 5VDC, 1ADC;

7: Working Temperature: -30-80 ℃;

8: Relative Humidity: ＜95%;

9: Waterproof Level: Weighing Indicator IP65, Weighing Plate IP67;

10: Volume:Scale platform: 1180 x 350 x 55mm, instrument: 380 x 300 x 160mm;
