Weight Pads for Trucks

WS1199-6

Ningbo saintbond weight pads for trucks for both static and dynamic applications, portable axles designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, weigh tronix truck scales are designed for creating static wheel and axle weighing and dynamic axle weighing stations.

Delivery

FOB

minimum order

1 set

Supply Ability

20000set / Week

Country of Origin

Ningbo,China

Stock Time

5~30Day

Quantity:

Contact Now

add to cart

Portable axles from Ningbo Saintbond are designed to accurately and efficiently measure the weight of vehicles in motion. The data collected from portable axles can be used to enforce weight regulations, monitor vehicle performance, and identify potential safety hazards on the road. weigh tronix truck scales are an innovative solution that can help streamline the weighing process for commercial vehicles, increasing efficiency and reducing congestion at a facility or on roads and highways.

Portable axles is a fast, accurate and economical way to monitor commodities and truck load limit weights that are coming into or leaving your facilities, weigh tronix truck scales for hands free operation. Quickly drive across the in motion axle scale to get an accurate weight of each axle and gross weight.

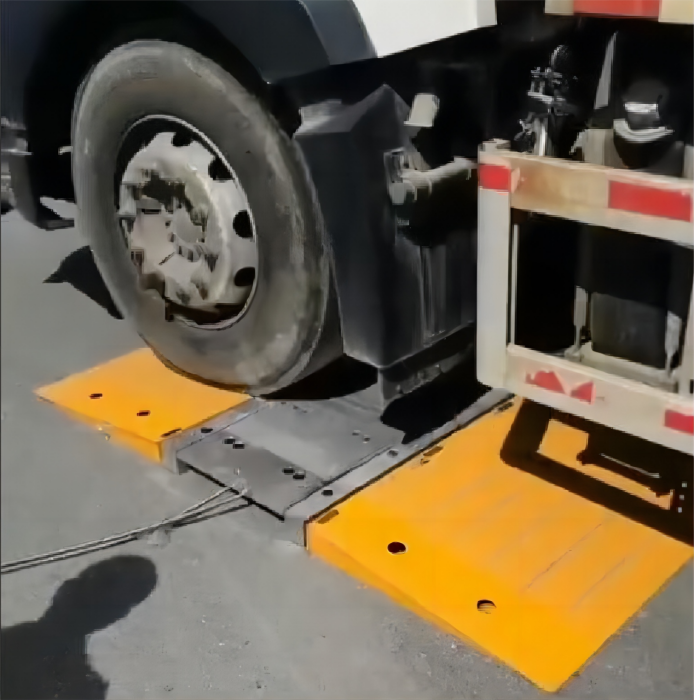

Portable axles consists of static or weight pads for trucks that are usually installed directly in the road. Unlike traditional weighbridges, an portable axles can determine the weight for each individual axis. weight pads for trucks are used to convert the signal generated by the sensor installed in the ground into weight.

Axle scale Portable axles is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles,Axle scales Portable axles are an economical, adaptable and portable solution for vehicle and truck weighing.An portable axles scale measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This type of weight pads for trucks is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. Axle scales weight pads for trucks allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

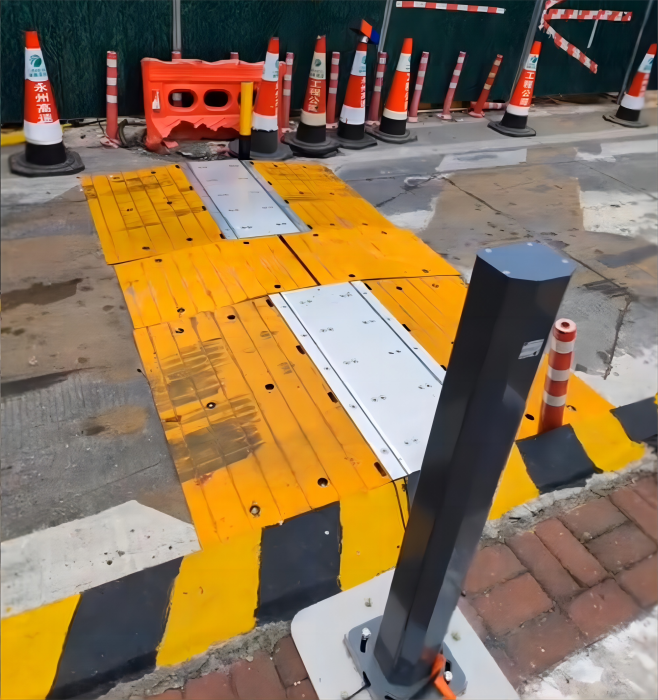

Axle Scale for Highways

The WS1192 axle scale weight pads for trucks is customized and developed for the highway entrance overload control project. After the transportation department requires all trucks to undergo overload detection on highways, each highway intersection is equipped with overload detection equipment. However, due to various reasons, currently only one to two detection lanes are installed on the entrance lane. When the detection equipment malfunctions or the traffic volume suddenly increases, traffic congestion or even inability to detect may occur, At this point, it is necessary to have backup detection equipment that can quickly add temporary lanes or replace faulty ones. In response to this situation, our company has developed a high-speed return dedicated movable axle scale weighing instrument as an emergency backup equipment.

This axle scale weight pads for trucks supports protocol customization and can seamlessly connect with existing over limit systems. It thickens the weighing platform, improves its impact resistance, and places the instrument directly in the toll booth, adding laser separation function; It can automatically recognize vehicle models and reverse functions, achieving seamless switching with existing equipment. It is an ideal backup over limit detection equipment for highway entrance overload control.

The axle scale weight pads for trucks plate and slope material structure have been redesigned and upgraded. The portable axles scale plate uses new aviation alloy materials, which increase thickness and reduce weight, and has a mesh weaving structure. Therefore, this set of mobile car weighing instruments is easy to operate, has better load-bearing and waterproof performance, is lightweight and easy to carry and transport.

Weighing Capacity:

Wheel weight: 0-20 tons Axle weight: 0-40 tons Total weight: 0-100 tons

Display: 240 x 120 LCD dot matrix to form a Chinese menu.

3: 24 bit high-speed A/D conversion, conversion speed: 1000 times/second;

4: Accuracy: Static: ≤ 20% F.S ± 0.3% F.S, ＞ 20% F.S ± 0.5% F.S;

Dynamic: ≤ 20% F.S ± 1% F.S,>20% F.S ± 3% F.S;

5: Recommended speed: 1-10 kilometers per hour;

6: Load Cell Power Supply: 5VDC, 1ADC;

7: Working Temperature: -30-80 ℃;

8: Relative Humidity: ＜95%;

9: Waterproof Level: Weighing Indicator IP65, Weighing Plate IP67;

10: Volume:Scale platform: 1180 x 350 x 55mm, instrument: 380 x 300 x 160mm;
