cwc Caravan Weight Control
WS1101RVW-1
cwc caravan weight control help you in monitoring the load on your vehicle and prevent accidents from occurring from overloading, smart weight scale rv are important tools for those who are frequent travelers, caravan weight scales for sale from Ningbo Saintbond is the ideal product for all vehicles, including cars, bikes, trucks, delivery vans etc.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( cwc caravan weight control, smart weight scale rv, caravan weight scales for sale cwc caravan weight control, smart weight scale rv, caravan weight scales for sale cwc caravan weight control, smart weight scale rv, caravan weight scales for sale cwc caravan weight control, smart weight scale rv, caravan weight scales for sale cwc caravan weight control, smart weight scale rv, caravan weight scales for sale )
The CWC Caravan Weight Control is an innovative, user-friendly system designed to provide caravan, RV, and trailer owners with precise, real-time weight measurement. It eliminates the guesswork from loading, helping you prevent overloading, ensure optimal vehicle balance, and travel with confidence and safety.
The CWC Caravan Weight Control is an innovative, user-friendly system designed to provide caravan, RV, and trailer owners with precise, real-time weight measurement. It eliminates the guesswork from loading, helping you prevent overloading, ensure optimal vehicle balance, and travel with confidence and safety.
How Smart Weight Scale RV Works:
The smart weight scale rv system uses precision strain gauge or pressure sensors placed at key load-bearing points. As weight is applied to the caravan, these sensors measure the force and send the data to a central processing unit. The caravan weight scales for sale calculated weight is then transmitted wirelessly to a compact display mounted in your tow vehicle's cabin, providing you with instant feedback.
The smart weight scale rv system uses precision strain gauge or pressure sensors placed at key load-bearing points. As weight is applied to the caravan, these sensors measure the force and send the data to a central processing unit. The caravan weight scales for sale calculated weight is then transmitted wirelessly to a compact display mounted in your tow vehicle's cabin, providing you with instant feedback.
Who Smart Weight Scale RV's For:
✅ The CWC Caravan Weight Control is the essential tool for:
✅ All caravan and travel trailer owners
✅ RV and motorhome users
✅ Horsebox and livestock trailer operators
✅ Anyone who needs to transport cargo and prioritize safety on the road
✅ The CWC Caravan Weight Control is the essential tool for:
✅ All caravan and travel trailer owners
✅ RV and motorhome users
✅ Horsebox and livestock trailer operators
✅ Anyone who needs to transport cargo and prioritize safety on the road

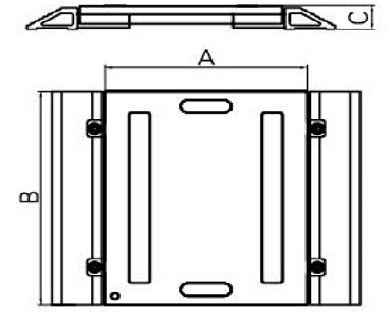

WS1101RV cwc Caravan Weight Control Dimension:
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000Kg | 4pcs LC348H LoadCell,10m Cable, Capacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348H LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348H LoadCell,10m Cable, Capacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348H LoadCell,10m Cable, Capacity:10000/15000/200000Kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 100~300m (Optional) | ||
WS1101RV cwc Caravan Weight Control Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101RV cwc Caravan Weight Control Wireless Weighing Indicator: (Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:800m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
