Caravan Weight Control Scales
WS1101RVW
rv scales near me from Ningbo Saintbond is the ideal product for all vehicles, including cars, bikes, trucks, delivery vans etc, rv wheel scales are important tools for those who are frequent travelers, caravan weight control scales help you in monitoring the load on your vehicle and prevent accidents from occurring from overloading.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( rv scales near me, rv wheel scales, caravan weight control scales rv scales near me, rv wheel scales, caravan weight control scales rv scales near me, rv wheel scales, caravan weight control scales rv scales near me, rv wheel scales, caravan weight control scales rv scales near me, rv wheel scales, caravan weight control scales rv scales near me, rv wheel scales, caravan weight control scales )
Know Your Load. Travel with Confidence!
Master Your RV's Weight for Safer, More Efficient Journeys
Know Your Load. Travel with Confidence!
Master Your RV's Weight for Safer, More Efficient Journeys
WhoIs Caravan Weight Control Scales For?
The caravan axle weighing scales is an essential tool for:
All RV Owners: From Class A motorhomes to travel trailers and fifth wheels.
Full-Time RVers: Who need to manage their load constantly.
Safety-Conscious Families: Ensuring a secure journey for loved ones.
RV Dealers and Service Centers: For professional diagnostics and setup.
The caravan axle weighing scales is an essential tool for:
All RV Owners: From Class A motorhomes to travel trailers and fifth wheels.
Full-Time RVers: Who need to manage their load constantly.
Safety-Conscious Families: Ensuring a secure journey for loved ones.
RV Dealers and Service Centers: For professional diagnostics and setup.
Stop risking your safety and your investment, Please come to rv scales near me !
Benefitof rv wheel scales / caravan weight control scales: Accurately measures the weight on each individual wheel, axle, and the entire side of your RV. Ensure you are always within your vehicle's Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Rating (GAWR), and tire limits.

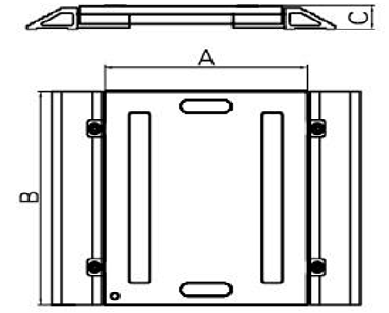

WS1101RV Caravan Weight Control Scales Dimension: mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000Kg | 4pcs LC348H LoadCell,10m Cable, Capacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348H LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348H LoadCell,10m Cable, Capacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348H LoadCell,10m Cable, Capacity:10000/15000/200000Kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 100~300m (Optional) | ||
WS1101RV Caravan Weight Control Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101RV Caravan Weight Control Scales Weighing Indicator: ( Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:800m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
Caravan Weight Control Scales Applications:
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
