Automated Weighbridge
WST030-10
Automated weighbridge are designed to manage and track the critical information created at the time of weighing and label products in an easy and flexible manner, computerised weigh bridge is a stand alone system which allows 24 hours 7 days a week weighingoperations without the need of operator, dump truck weight scale can be customized with many add-ons like camera plate recognition, surveillance cameras, traffic barriers, traffic lights, etc.
Quantity:
A computerised weigh bridge is a big undertaking for any business. It requires substantial investment in term of time and space to make processes faster in the industrial setup. Related industries are aware of is how much time and resources a computerised weigh bridge requires to operate.
The primary method of automated weighbridge is to switch to an un-manned system. Anautomated weighbridge -also known as a driver operated weighbridge – is a weighbridge where the input, identification, and data are handled by the vehicle driver rather than a dedicated computerised weigh bridge operator. Unmanned RFID computerised weigh bridge System can be a stand-alone system or even a fully integrated IoT based, central monitoring dump truck weight scale system which allows 24 hours 7 days a week weighing operations without the need of operator. Due to the system's user-friendly interface and ruggedness it is totally operated by the truck driver. The System comes with an intelligent and integrated application that makes any digital weighbridge to a smart RFID unattended terminal. The dump truck weight scale system can be customized with many add-ons like RFID Integration, Vehicle dump truck weight scale Position System, Existing vehicle weighing software, camera plate recognition, surveillance cameras, PA system and with loudspeaker, boom barriers, traffic lights, and integration with available SAP, Oracle, ERP.

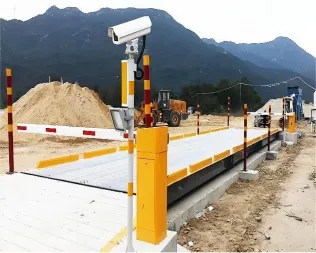

RFID automated weighbridge Weighing Unmanned truck scale.
This Reader can up to 15 meters reading range and fast reading,
It comes with high IP rate that can standing in hard weather or ourdoor condition.
Many clients choose this in Parking lot / weighting automation/ Product line tracking project.
Automated Weighbridge Features:
1):10mm thick smooth plate or checker plate;
2): 300mm high U-beam 6 pieces, 2 pieces C-channel;
3): With OIML approved double shear beam load cells;
4): Inclusive Yaohua indicators with RS232 port and weighing software;
5): Materials: carbon steel materials, U-mold beams;
6): Surface finishing: sandblasting, hot painting and anti rust painting;
7): Load cells: LC110-30t load cells or LC108 load cell;
8): Cutting: all cutting was made by prisma cutting machine;
9): If you have any other special requests, we can also try it for you;
Technical Parameter:
| Model | Max Weighing | Division | Counts | Size | Accuracy Grade |
| SCS-10 | 10 tons | 5 kg | 2000n | 2×4 m | OIML III |
| SCS-20 | 20 tons | 10 kg | 2000n | 3×5 m | OIML III |
| SCS-50 | 50 tons | 20kg | 2500n | 3×7 m | OIML III |
| SCS-50 | 50 tons | 20 kg | 2500n | 3×8 m | OIML III |
| SCS-60 | 60 tons | 20 kg | 3000n | 3×9 m | OIML III |
| SCS-60 | 60 tons | 20 kg | 3000n | 3×10 m | OIML III |
| SCS-80 | 80 tons | 40 kg | 2000n | 3×12 m | OIML III |
| SCS-80 | 80 tons | 40 kg | 2000n | 3×14 m | OIML III |
| SCS-100 | 100 tons | 40 kg | 2500n | 3×16 m | OIML III |
| SCS-120 | 120 tons | 40 kg | 3000n | 3×18 m | OIML III |
| SCS-150 | 150 tons | 50 kg | 3000n | 3.2×18 m | OIML III |
| SCS-200 | 200 tons | 100 kg | 2000n | 3.4×20 m | OIML III |
| SCS-300 | 300 tons | 100 kg | 3000n | 3.6×24 m | OIML III |
**Remark: Tailor made according to your requirement is available**
**Counts=Max weighing/division***
1: The electronic part has analog, digital and explosion-proof three-species configuration;
2: Optional parts such as printer, large screen, etc;
3: There has pit or pitless type foundation and pitless type method more widely used;
4: A variety of explosion-proof modes are available;
Pit Weighbridge:
Advantages: Small cover an area, no need for slopes, convenient to use, which is more suitable for users with smaller venues;
Disadvantages: When installing, it is necessary to choose a place with high terrain, which is convenient for drainage, and maintenance and repair operations may be difficult;

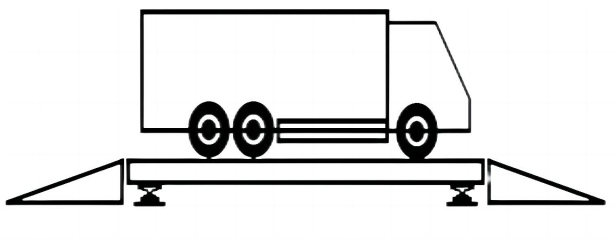

Pitless Weighbridge:
Advantages: Easy to install, easy to maintain and repair, beneficial for ventilation of the scale body, prolonging its service life, higher than the ground for drainage, suitable for customers with larger sites, or those who have already poured concrete on the ground and do not want to dig foundation pits again.
Disadvantage: It requires a dedicated slope for guidance and occupies a large area.
