Automated Weighbridge System

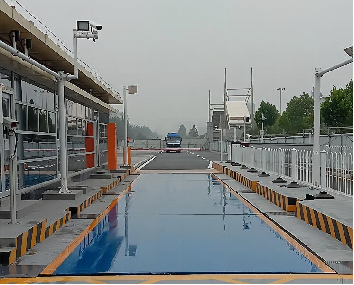

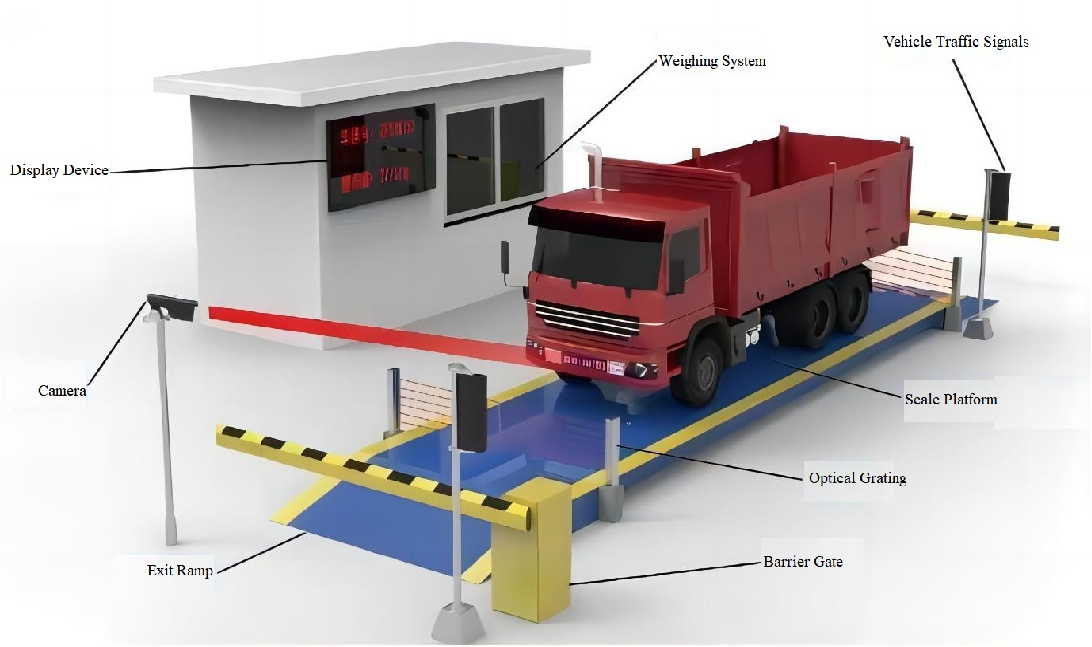

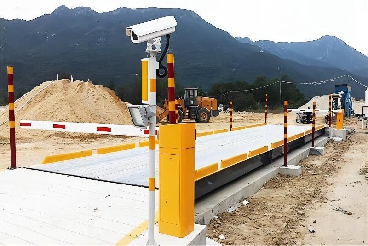

A heavy vehicle weighbridge is a big undertaking for any business. It requires substantial investment in term of time and space to make processes faster in the industrial setup. Related industries are aware of is how much time and resources a weighing bridge machine requires to operate. The primary method of automating a weighbridge is to switch to an un-manned system. An Unmanned weighbridge -also known as a driver operated weighbridge – is a weighbridge where the input, identification, and data are handled by the vehicle driver rather than a dedicated weighbridge operator. Unmanned RFID Weighbridge System can be a stand-alone system or even a fully integrated IoT based, central monitoring system which allows 24 hours 7 days a week weighing operations without the need of operator. Due to the system's user-friendly interface and ruggedness it is totally operated by the truck driver. The Automated Weighbridge System comes with an intelligent and integrated application that makes any digital weighbridge to a smart RFID unattended terminal. The Automated Weighbridge System can be customized with many add-ons like RFID Integration, Vehicle Position Automated Weighbridge System, Existing vehicle weighing software, camera plate recognition, surveillance cameras, PA system and with loudspeaker, boom barriers, traffic lights, and integration with available SAP, Oracle, ERP. RFID Automatic Weighbridge Weighing Unmanned truck scale. This Reader can up to 15 meters reading range and fast reading, It comes with high IP rate that can standing in hard weather or ourdoor condition. Many clients choose this in Parking lot / weighting automation with Automated Weighbridge System/ Product line tracking project.



1):10mm thick smooth plate or checker plate;

2): 300mm high U-beam 6 pieces, 2 pieces C-channel;

3): heavy vehicle weighbridgeWith OIML approved double shear beam load cells;

4): Inclusive Automated Weighbridge System indicators with RS232 port and Automated Weighbridge System;

5):  heavy vehicle weighbridge Materials: carbon steel materials, U-mold beams;

6): Surface finishing: sandblasting, hot painting and anti rust painting;

7): Automated Weighbridge System Load cells: LC110-30t load cells or LC108 load cell;

8): Cutting: all cutting was made by prisma cutting machine;

9): If you have any other special requests for Automated Weighbridge System, we can also try it for you;





1: The electronic part has analog, digital and explosion-proof three-species configuration;

2: Optional parts such as printer, large screen, etc;

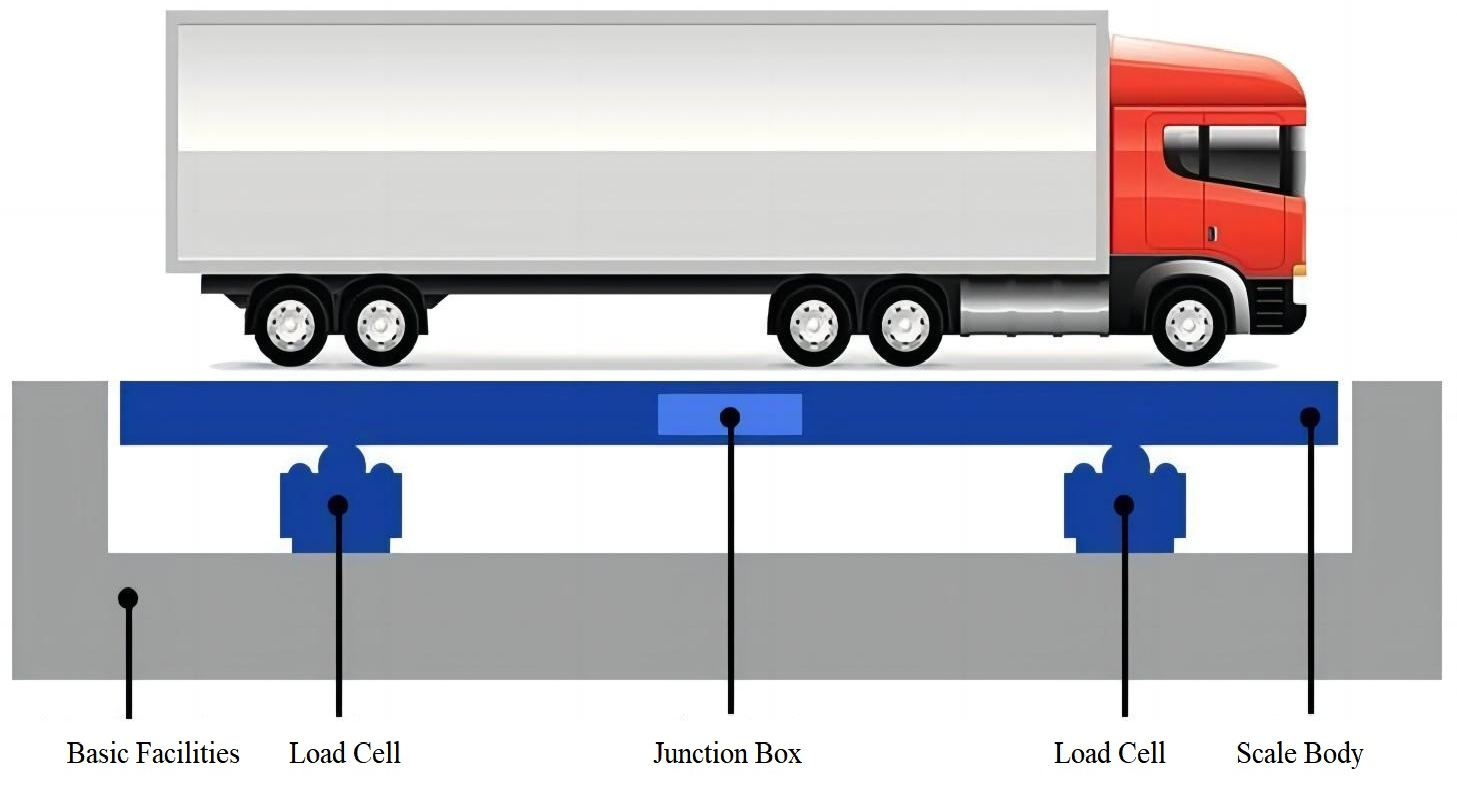

3: There has pit or pitless type foundation and pitless type method more widely used;

4: A variety of explosion-proof modes are available;



There are two installation for Automated Weighbridge System methods to choose from:

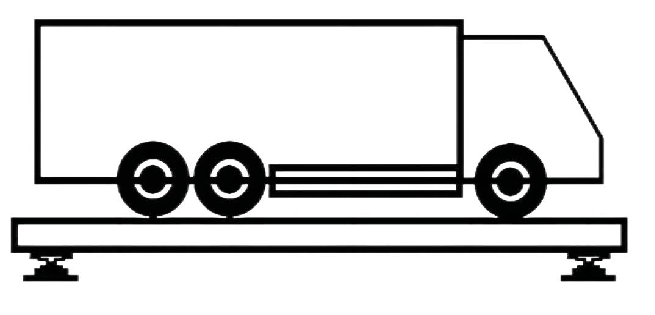

Small cover an area, no need for slopes, convenient to use, which is more suitable for users with smaller venues;

Disadvantages: When installing weighing bridge machine, it is necessary to choose a place with high terrain, which is convenient for drainage, and maintenance and repair operations may be difficult;

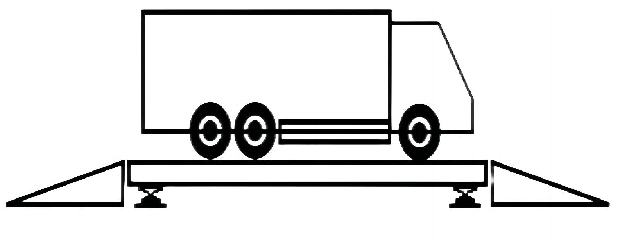

Easy to install, easy to maintain and repair, beneficial for ventilation of the scale body, prolonging its service life, higher than the ground for drainage, suitable for customers with larger sites, or those who have already poured concrete on the ground and do not want to dig foundation pits again.

Disadvantage: It requires a dedicated slope for guidance and occupies a large area.
