Analysis of the advantages and disadvantages of weigh bridge load cell and column type load cell

Analysis of the advantages and disadvantages of weigh bridge load cell and column type load cell

Keyword: weigh bridge load cell, column type load cell , the load cell

I: Column type load cell

Column type load cell is the load cell that uses the deformation of electrode or piezoresistive plates to detect the force situation. Its main advantages include:

1. High sensitivity, able to detect small deformations and forces.

2. High precision, able to provide relatively accurate data.

3. Short response time, able to provide data in a short period of time.

4. Relatively low cost, suitable for some cost sensitive application scenarios.

However, column type load cell also have some drawbacks, mainly including:

Due to its design limitations, it can only detect linear deformations and is difficult to handle nonlinear situations.

2. It is greatly affected by environmental factors such as temperature and humidity, which can easily lead to errors.

3. Low reliability, short lifespan, requiring frequent maintenance and replacement.

4. The application scenario is limited and not suitable for some high demand industrial production fields.

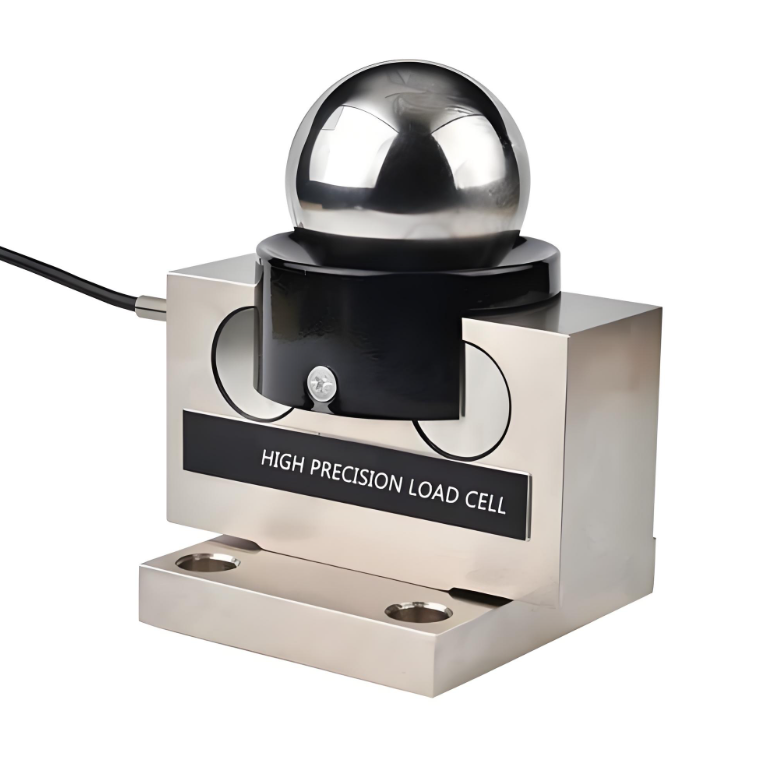

II: Weigh bridge load cell

Weigh bridge load cell is a sensor that uses the variation of the bridge to detect the force situation. Its main advantages include:

1. High precision, able to provide very accurate data.

2. Able to handle nonlinear situations with a wide range of applications.

3. High reliability, long lifespan, no need for frequent maintenance and replacement.

4. It has a wide range of applications and can be used in multiple fields.

However, Weigh bridge load cells also have some drawbacks, mainly including:

1. Low sensitivity, unable to detect small deformations and forces.

2. The response time is long and data cannot be provided in a short period of time.

3. High cost, not suitable for some cost sensitive application scenarios.

4. The requirements for the power supply are high, and it is necessary to ensure the stability and reliability of the power supply.

In summary, whether to choose a column type load cell or a Weigh bridge load cells depends on the specific application scenario and requirements. If you need to detect small deformations and forces, you can choose column type load cell; If dealing with nonlinear situations, Weigh bridge load cells can be chosen. At the same time, factors such as sensitivity, accuracy, response time, reliability, cost, and application range need to be considered in selecting the most suitable the load cell.
