Aircraft Weighing System

WS1101A1

WS1101 aircraft weighing system are portable vehicle weighing scales ideal for mobile and temporary applications. They offer an adaptable solution for vehicle weighing. With unmatched accuracy, Ningbo Saintbond aircraft weighing system capture wheel or axle weights.

Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;

Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);

Quantity:

Contact Now

add to cart

(aircraft weight and balance scales, aircraft weighing system, Portable Vehicle Weighing Scale aircraft weight and balance scales, aircraft weighing system, Portable Vehicle Weighing Scale aircraft weight and balance scales, aircraft weighing system, Portable Vehicle Weighing Scale)

An accurate, durable, and aircraft weighing system is essential for monitoring loads, avoiding overloading, and preventing premature mechanical failure. Ningbo Saintbond manufactures a range of high-quality aircraft weight and balance scales foraircraft wheels and axles, making it an essential tool for maintenance and safety checks weighing applications.

Step-by-Step Instructions:

Accompanied by comprehensive step-by-step instructions, our aircraft weighing makes setup and operation a breeze. The manual provides detailed guidance to ensure you get the most accurate results every time.

Safety Features:

Robust Construction

Constructed with high-quality Aviation aluminum materials, The WS1101 Series aircraft weight and balance scales for sale is designed to withstand rigorous use. Its robust construction ensures long-lasting durability and reliability, minimizing the risk of damage or an uncommanded roll off event.

Safe Operation:

Safety is paramount, and our aircraft weight and balance scales for sale is engineered with features to protect both the user and the equipment. Powder coated surfaces, overload protection, and our over run end options all contribute to a safe operating environment.

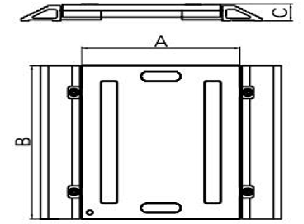

WS1101 Portable Vehicle Weighing Scale Dimension(mm):

Type	Size(A×B×C)	Capacity	Description
Type	(mm)	(Each Weigh Pad)	(Each Pad)
WS1101W	300×400×56.5	500~8000Kg	4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500Kg
	400×500×56.5	1000~10000Kg	4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000Kg
	450×700×56.5	5000~15000Kg	6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000Kg
	500×900×56.5	5000~20000Kg	8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000Kg

WS1101 Portable Vehicle Weighing Scale Technical Parameter:

Rated load:1/2/3/5/6/10/20t	Compensated temp.range:-10~+50℃
Dynamic error: 3~5%F.S (5~10km/h)	Static error:0.3~0.5%F.S
Static comprehensive error: 0.1~0.5%F.S	Insulation resistance:≥5000 MΩ(100VDC)
Rated output:1.0±0.1 mV/V	Use temp.range:-30~+80℃
Non-linearity:0.2%F.S	Temp.effect on zero: 0.03 F.S/10℃
Error on corners: 0.2%F.S	Temp.effect on span:0.05 F.S/10℃
Repeatariy: 0.05%F.S	Safe overload:120%
Zero balance: ±1%F.S	Ultimate overload:150%
Excitation voltage:9~15VDC	Defend grade: IP66
Recommended voltage:10 V	Weight Itself:12/25/28/40/55/65kg

WS1101 Portable Vehicle Weighing Scale Benefits:

✅ Accuracy of ±0.1% of Reading;

✅ Large, Easy-to-Read, LCD Displays on Scales & Indicator;

✅ Indicator Displays Individual & Total Weight;

✅ Wireless Connectivity Option: Remote monitoring and data transmission available through an optional wireless communication module;

✅ Fast & Efficient Weighing: The ultra-low-profile design allows for quick aircraft positioning, reducing downtime;

✅ Lightweight &Portable-Smaller and lighter than other aircraft scales, making it ideal for frequent use and transport;

✅ Cost-Effective Operation: Runs on AA batteries, eliminating the need for power cables or frequent recharging.·Minimal Maintenance-Electronic load cells provide stable and repeatable readings with low servicing requirements;

✅ Versatile Application: Designed for small and medium aircraft, supporting routine maintenance, weight balancing, and safety compliance checks;

✅ Reliable Performance in Various Conditions: Integrated temperature compensation and digital filtering ensure high accuracy indifferent environments;

✅ Calculates Center of Gravity;

Weighing Applications:
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;

Choosethe Saintbond for a trusted and efficient wheel weigher that meets the demands of modern aviation operations.
