Aircraft Platform Scales
WS1101A
WS1101 Low-Profile High Capacity Aircraft Platform Scales are used for large fixed wing military transport or strategic aircraft, or commercial narrow and widebody aircraft for maintenance and weight and balance operations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Quantity:
WS1101 Low-Profile High Capacity platform scales aircraft are used for large fixed wing military transport or strategic aircraft, or commercial narrow and widebody aircraft for maintenance and weight and balance operations.
Employed in sets of three to twenty-four scales, these low-profile platform scales aircraft are used for aircraft with wheel weights up to 10,0001b~80,000 lb (5,000kg ~ 40,000kg.)
Platform scales aircraft are low-profile to minimize towing distance for ramps and single person portable for fast deployment and storage. The unique design eliminates the need to lift or carry the platform scales aircraft from the transport cart to the required position on the hangar floor. With a large active weighing platform leading the industry for low-profile aircraft platform scales, this enables easier aircraft tire placement on the scales simplifying weighing procedures.
Ningbo Saintbond is the WS1101 Series platform scales aircraft supplier. the platform scales aircrafts are a low cost and reliable scale system available to operators for weighing light aircraft to determine center of gravity. WS1101 aircraft platform scales systems is the safest, most cost effective and reliable weighing equipment available on the market.

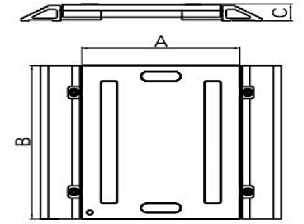

WS1101 Aircraft Platform Scales Dimension(mm):
| Type | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weigh Pad) | (Each Pad) | |
| WS1101W | 300×400×56.5 | 500~8000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500Kg |
| 400×500×56.5 | 1000~10000Kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000Kg | |
| 450×700×56.5 | 5000~15000Kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000Kg | |
| 500×900×56.5 | 5000~20000Kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000Kg |
WS1101 Aircraft Platform Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Aircraft Platform Scales Weighing Applications:
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
✅ Wheel weighing;
✅ Axle weighing;
✅ Vehicle weighing;
✅ Aircraft / Caravans weighing;
✅ Large Vehicles /Trucks /Tankers /Trailers /Heavy Duty Equipment;
✅ Custom sized container weighing;
For more detailed information, please contact Ningbo Saintbond at: saintbond@saintbond.com
