a12e scale

A12

Weighing indicator XK3190-a12 weighing indicator adopts fast speed, high precision ∑-Δ A/D conversion technology and special anti-vibration software technology, a12 weighing scale widely applied in electronic platform scale,electronic floor scale,mechanic-electronic conversion scale and so on alike static weighing system equipped with 1~4 load cell.

Quantity:

Contact Now

add to cart

a12e scale Introduction:

a12e scale Standard Function:

✅High precision A/D conversion with readability 1/30000

✅Call and display inner code to replace weight observing and analysis tolerance

✅Special digital filtering technology to strengthen anti-vibration ability

✅Able to set up zero-tracking range, zero(auto/manual) range

✅Able to set up digital filter intensity、range and stable time

✅With counting function (unit weight data save protection in case of power off)

✅Selectable backlight mode

✅AC/DC power supply, with built-in rechargeable 6V/4AH battery

✅Alarm for low battery and auto power off at low battery

✅Optional of RS232 interface with selectable baud rate and communication method

✅Optional of scoreboard interface sending by 20mA current loop

a12e scale Nonstandard Function( Optional, please inform sales staff if need):

✅KG/LB switch function

✅Auto calculating average function ( For livestock scale)

a12e scale Technical Parameter:

✅A/D conversion method: ∑-Δ;

✅A/D conversion speed: 10 times/sec.;

✅Max. A/D conversion bits: 20;

✅Input signal range: -10mV~15mV;

✅Input sensitivity: ≥1μV/e;

✅Load cell excitation: DC 5V; I≤150mA;

✅Max. connection number of load cell: 4 at 350 ohm;

✅Load cell connection mode: 6 wire;

✅Verified counts: 3000;

✅Max. external counts: 30000;

✅Max. internal resolution: 300000;

✅Division: 1/2/5/10/20/50 optional;

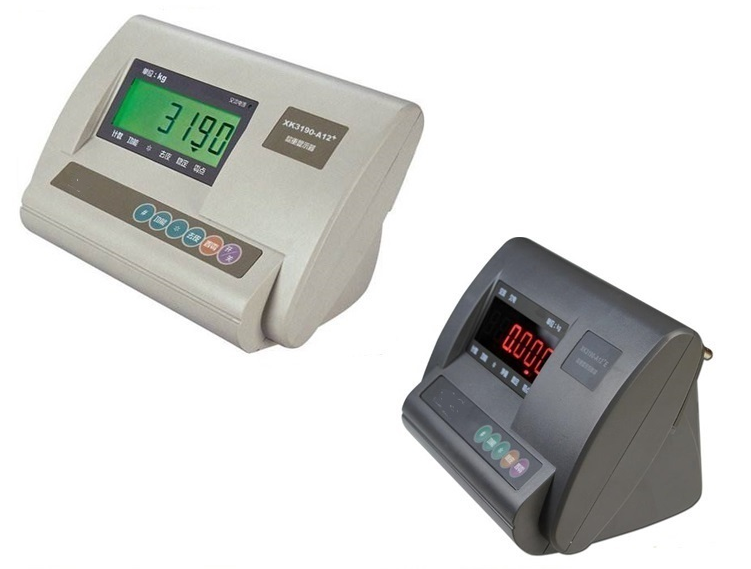

✅Display(XK3190-A12): 6 bits LCD, 6 status indications;

✅Display(XK3190-A12E): 6 bits LED, 6 status indications;

✅Display range: -2000~150000(d=10);

✅Optional: Scoreboard interface serial sending signal by current loop with baud rate 600;

✅Transmission distance: Current loop≤2000 meters;

✅Interface type: RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method;

✅Baud rate seletable:1200/2400/4800/9600;

✅Transmission distance: RS232C≤30 meters;

✅Power supply: AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery;
