column load cell is a type of measuring component. By using simulation and experimental methods, the percentage error of the direct output value of the bridge and the percentage error of the output value after strain data fusion using neural networks were explored under various eccentric and oblique load conditions for different height column strain weigh cells.

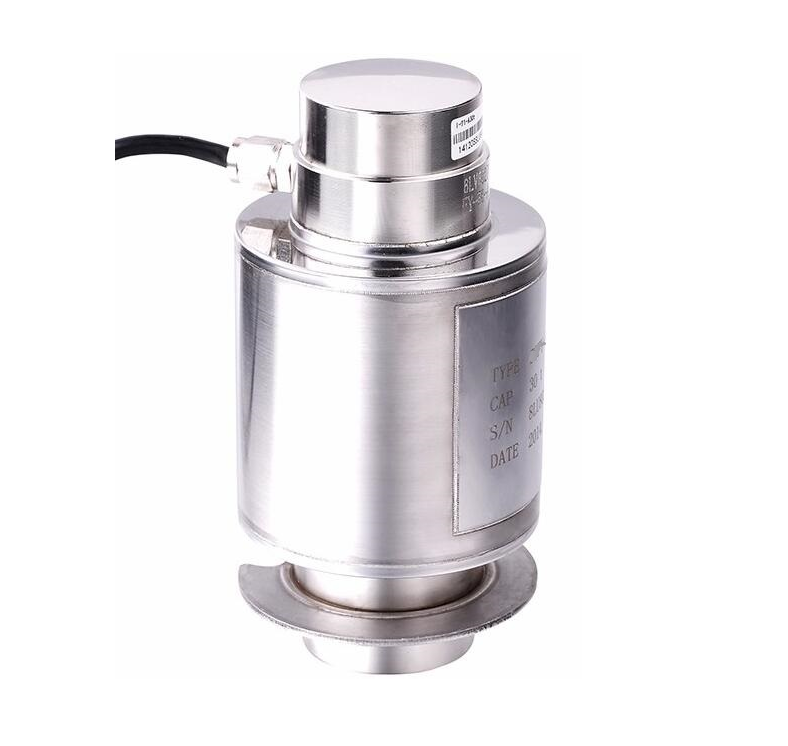

column load cell structure:

During the measurement process, gravity acts on the elastic body, causing deformation. This strain (positive or negative) is converted into an electronic signal by strain gauges attached to the elastic body. In addition to the essential strain gauges and weigh cells elastomers,weigh cells usually also include a protective shell for the weigh cells strain gauges, sealing elements, etc.

Advantages of column load cell:

◎High precision: The error of the column weigh cells is controlled below 0.05%, and non-contact sensing technology is used to ensure the accuracy of the measurement data.

◎Good stability: It is not affected by environmental factors such as temperature and humidity, and can maintain stability even in extreme environments.

◎Large measurement range: It can measure various physical quantities such as temperature, pressure, flow rate, vibration, etc., and the measurement range can be adjusted according to needs.

◎High reliability: The equipment has a simple structure, few components, stable overall performance, and high anti-interference ability.

◎Easy to install and maintain: Easy to install, just fix on the measuring object, and durable and easy to maintain.

◎High load capacity: able to withstand large weights, ensuring the weighing capacity for heavy loads.

◎Protective shell: equipped with a protective shell to prevent external environmental damage and improve service life.

◎Good sealing: prevents impurities such as moisture and dust from entering, ensuring the stability and reliability of the sensor.

◎Simple and compact structure: small size, light weight, sturdy and durable, with minimal material and labor consumption.

◎Good rigidity: high natural frequency, good dynamic response, conducive to dynamic measurement.

◎Not sensitive to vibration: allows for a certain level of vibration, with superior overload and impact resistance compared to other sensors.

◎Small azimuth error: After using single-layer or double-layer membrane welding sealing technology, the azimuth error is small.

Application scenarios of column load cell:

column load cell are widely used in various fields such as industrial real-time data acquisition, engineering monitoring, weighing systems, and weigh cells due to their advantages of high precision, high stability, and large load capacity. For example, in automated production lines,weighbridge load cell is used to measure the weight and size of products, in bridge and building health monitoring, weighbridge load cell is used to detect stress changes, and in logistics and warehousing systems for precise weighing.
