portable truck scale

Wireless Dynamic Portable Truck Scale

WS1110WD-3
The Wireless Dynamic Portable Truck Scales is a revolutionary weighing system that combines high-precision load cells, robust wireless technology, and a modular, portable design.Portable Truck Scales fundamentally transforms the concept of truck weighing by turning a static "scale" into a "mobile weighing station" that can be deployed in minutes.

Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:5~30t
Material: Aluminum Alloy
Protection Class:IP67/68

Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
minimum order
1 sheet
Country of Origin
China
Quantity:
Contact Now
add to cart
All Products
portable truck scale, portable truck scales, portable truck scales for sale portable truck scale, portable truck scales, portable truck scales for sale portable truck scale, portable truck scales, portable truck scales for sale portable truck scale, portable truck scales, portable truck scales for sale portable truck scale, portable truck scales, portable truck scales for sale
The Wireless Dynamic Portable Truck Scales is a revolutionary weighing system that combines high-precision load cells, robust wireless technology, and a modular, portable design.Portable Truck Scales fundamentally transforms the concept of truck weighing by turning a static"scale"into a"mobile weighing station"that can be deployed in minutes. This is the ultimate solution for industries requiring fast, accurate, and flexible weighing at any location, without the need for permanent installation. Ningbo Saintbond portable truck scales for sale from factory.

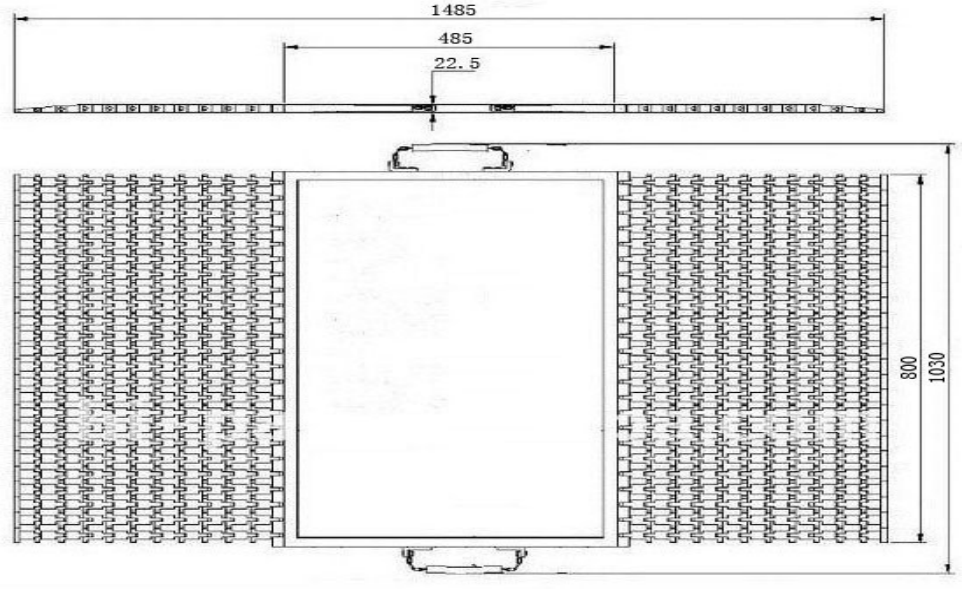

WS1110WD Portable Truck Scales Dimension:mm


WS1110WD Portable Truck Scales Technical Parameter:
Rated load:10/15/20/30t  (Each Weigh Pad)Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3~5 (5~10km/h)Static error (%F.S):0.3~0.5
Static comprehensive error(%F.S): 0.1~0.5Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05Safe overload(%): 120
Zero balance(%F.S): ±1Ultimate overload(%): 150
Excitation voltage(VDC): 9~15Netweight(kg): 28
Recommended voltage(V): 10Defend grade: IP66
Dynamic comprehensive error(%F.S): 3~5 (5~10km/h)

WS1110WD Portable Truck Scales Applications:
Logistics & Freight: On-site load checking for compliance, freight billing, and overload prevention.
Waste & Recycling: Weighing incoming trucks at transfer stations, scrap yards, and landfills.
Agriculture & Farming: Weighing harvests (grain, cotton, potatoes) and livestock feed directly in the field or on the farm.
Construction & Mining: Managing material inventory (sand, gravel, aggregate) and tracking vehicle loads on temporary job sites.
Law Enforcement & Ports: Mobile weight enforcement for roadside checkpoints and container verification.
Military & Emergency Response: Rapid deployment of weighing capability in remote or disaster-stricken areas.

 WS1110WD Portable Truck Scales Wire Indicator ( Optional):
WI380 Wireless Dynamic IndicatorMWI03 Wired Dynamic Indicator
✅ There are two models of single channel and double channel, in which the double channel can detect the partial load coefficient of the vehicle;✅  There are two models of single channel and double channel, in which the double channel can detect the partial load coefficient of the vehicle;
✅ Very excellent dynamic detection performance, high precision;✅  Very excellent dynamic detection performance, high precision;
✅ Backlit dot matrix liquid crystal display, clearly visible day and night;✅ Backlit dot matrix liquid crystal display, clearly visible day and night;
✅ Full Chinese display and printing, user interface is very friendly;✅  Full Chinese display and printing, user interface is very friendly;
✅ Conveniently input complete car number including province and city name;✅  Conveniently input complete car number including province and city name;
✅ Can input the name of the detection unit and the name of the inspector;✅  Can input the name of the detection unit and the name of the inspector;
✅ Built-in Chinese printer, printing complete inspection voucher;✅  Built-in Chinese printer, printing complete inspection voucher;
✅ Automatically determine whether the limit is exceeded: can store the detection record of 1300 cars;✅  Automatic determination of whether the limit; It can store the test records of 1300 vehicles.
✅ Complete retrieval and statistics function;✅  Complete retrieval and statistics function;
✅ AC and DC dual use, real-time display of battery capacity, the battery can be maintained for 40 hours, and can automatically shut down;✅  AC and DC dual use, real-time display of battery capacity, the battery can be maintained for 40 hours, and can automatically shut down;
✅ Detection instrument can work independently, and has a complete interface, can upload monitoring data to the computer at any time.✅  Detection instrument can work independently, and has a complete interface, can upload monitoring data to the computer at any time.
