Wireless Car Scales
WS1104WD-1
Ningbo saintbond wireless car scales for both static and dynamic applications, rail car scale designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, portable trailer weight scales are designed for creating static wheel and axle weighing and dynamic axle weighing stations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
( wireless car scales, rail car scale, portable trailer weight scales wireless car scales, rail car scale, portable trailer weight scales wireless car scales, rail car scale, portable trailer weight scales wireless car scales, rail car scale, portable trailer weight scales wireless car scales, rail car scale, portable trailer weight scales wireless car scales, rail car scale, portable trailer weight scales)
Weigh Smart, Tow Safe: Introducing the Ultimate Portable Trailer Weight Scales
Weigh Smart, Tow Safe: Introducing the Ultimate Portable Trailer Weight Scales
StopGuessing. Start Knowing.
Are you tired of the dangerous guesswork of loading your trailer? Overloading is a leading cause of accidents, tire blowouts, and costly fines. It's time to take control of your safety and your payload with our next-generation Portable Trailer Weight Scales.
Our innovative scales provide professional-grade weight measurement right in your driveway, garage, or job site. Gain the confidence of knowing your trailer's exact weight distribution before you ever hit the road.

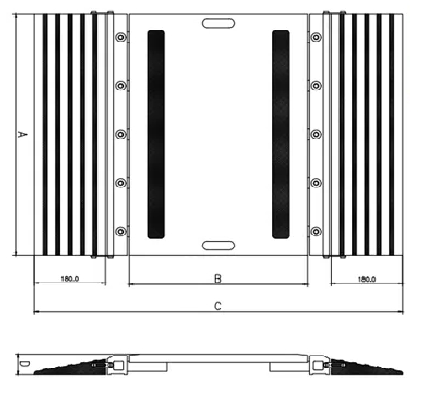

WS1104WD Portable Trailer Weight Scales Dimension: mm
| Capacity | A | B | C | D |
| 1~5t | 500 | 400 | 760 | 58 |
| 2~20t | 720 | 450 | 810 | 58 |
| 5~25t | 900 | 500 | 860 | 58 |
| Pad Size | 500×400×58mm | 720×450×58mm |
| Ramp Size | 500×180×45mm | 720×180×45mm |
| Pad Packing | 700×620×120mm | 800×650×120mm |
| Ramp Packing Size | 520×190×180mm | 730×190×180mm |
| Indicator Packing Size | 500×350×240mm | 500×350×240mm |
| Indicator Weight | 9kg | 9kg |
| Pad and Packaging Weight (1Pcs) | 32kg | 46kg |
| Ramp Weight (2 Pcs) | 7.6kg | 10.8kg |
| Single Pad Capacity | 10t | 15t |
| Allowed Axle Load | 20t | 30t |
| Safe Overload | 125% | |
| Ultimate overload | 150% | |
WS1104WD Portable Trailer Weight Scales Technical Parameter:
| Dynamic comprehensive error(%F.S): 1.5 (1~5km/h) 3 (5~10km/h) | ||||
| Static error (%F.S):0.1~0.3 | Compensated temp.range:-10~+50℃ | |||
| Rated load:1~25t | Static error:0.1~0.3%F.S | |||
| Dynamic error: 3%F.S (5~10km/h) | Insulation resistance:≥5000 MΩ(100VDC) | |||
| Static comprehensive error: 0.1~0.5%F.S | Use temp.range:-30~+80℃ | |||
| Rated output:1.0±0.1 mV/V | Temp.effect on zero: 0.03 F.S/10℃ | |||
| Non-linearity:0.2%F.S | Temp.effect on span:0.05 F.S/10℃ | |||
| Error on corners: 0.2%F.S | Excitation voltage:9~15VDC | |||
| Repeatability: 0.05%F.S | Recommended voltage:10 V | |||
| Zero balance: ±1%F.S | Defend grade: IP66 | |||
| Wireless Transmission Frequency | 430MHz to 470MHz | |||
| Wireless Transmission Distance | 50~100meters (In Open Place) | |||
| PC Software | Optional, Customizable | |||
| Wireless | PC Software | Optional, Customizable | ||
| Mobile Bluetooth | Optional | |||
| Wireless Distance | 50~200m (Optional) | |||
WS1104WD Portable Trailer Weight Scales Weighing Indicator: (Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
Who Needs Portable Trailer Weight Scales?
✅ RV & Camping Enthusiasts: Ensure your travel trailer or fifth-wheel is loaded safely for family trips.
✅ Boat Owners: Accurately weigh your boat trailer, accounting for gear, fuel, and water.
✅ Landscapers & Contractors: Maximize payload without risking fines or damaging truck and trailer equipment.
✅ Farmers & Ranchers: Weigh livestock, hay, and equipment with ease.
✅ Racing Teams: Precisely measure the weight of car trailers for optimal towing and track performance.
✅ Anyone Who Tows: From utility trailers to horse trailers, if you tow it, you need to know its weight.
✅ RV & Camping Enthusiasts: Ensure your travel trailer or fifth-wheel is loaded safely for family trips.
✅ Boat Owners: Accurately weigh your boat trailer, accounting for gear, fuel, and water.
✅ Landscapers & Contractors: Maximize payload without risking fines or damaging truck and trailer equipment.
✅ Farmers & Ranchers: Weigh livestock, hay, and equipment with ease.
✅ Racing Teams: Precisely measure the weight of car trailers for optimal towing and track performance.
✅ Anyone Who Tows: From utility trailers to horse trailers, if you tow it, you need to know its weight.
Don't let uncertainty put your safety and investment at risk. Portable Trailer Weight Scales are more than just a tool—they are an essential part of your towing routine.
