Wheel Weighers
WS1140-I-1
Wheel weighers are designed for creating static wheel and axle weighing and dynamic axle weighing stations, weighing changing pad axle wireless pads designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, Ningbo saintbond camry scale battery for both static and dynamic applications.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
wheel weighers, weighing changing pad, camry scale battery wheel weighers, weighing changing pad, camry scale battery wheel weighers, weighing changing pad, camry scale battery wheel weighers, weighing changing pad, camry scale battery
A wheel weighers is a compact, portable, and highly durable scale system designed for weighing individual axles or entire vehicles by placing pads under each wheel. Unlike fixed scales, weighing changing pads offer ultimate flexibility, allowing for on-demand weighing virtually anywhere with a firm, level surface.
A wheel weighers is a compact, portable, and highly durable scale system designed for weighing individual axles or entire vehicles by placing pads under each wheel. Unlike fixed scales, weighing changing pads offer ultimate flexibility, allowing for on-demand weighing virtually anywhere with a firm, level surface.
Wheel weigherss are the go-to solution for quick, temporary, and mobile weighing applications where permanent infrastructure is not available or practical.

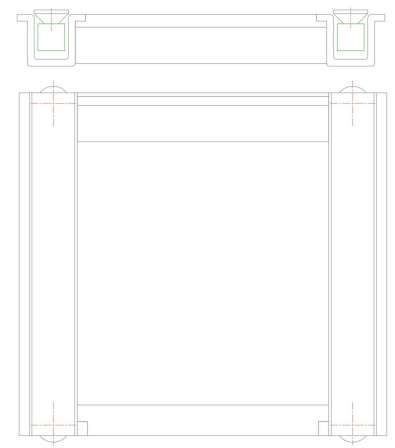

| WS1140 Wheel Weighers Dimension:mm |

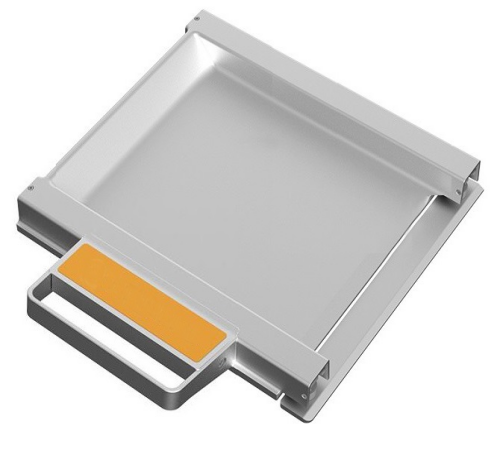

| WS1140-I 540×480×60mm |

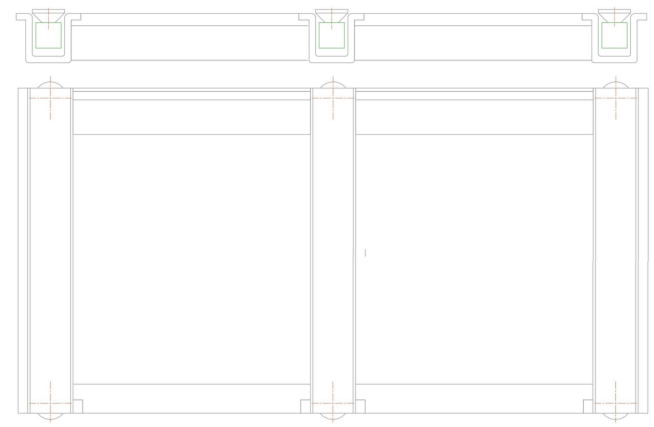

| WS1140 Wheel Weighers Dimension:mm |

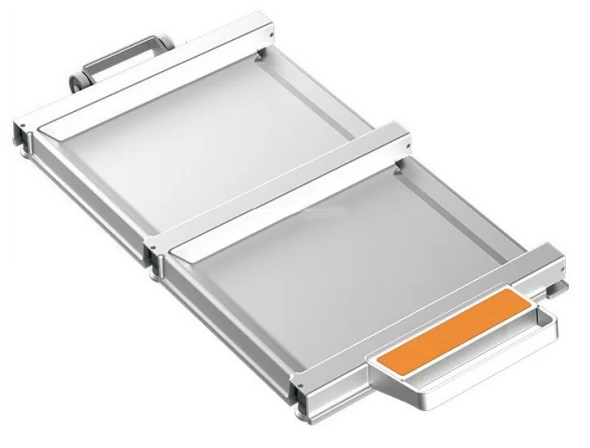

| WS1140-II 950×480×60mm |

| WS1140 Wheel Weighers Technical Specification: | ||
| Model | WS1140-II | WS1140-I |
| Dimension | 95×48×6cm | 54×48×6cm |
| Weight | 22.5kg | 12.5kg |
| Material | Structural Aluminum | Structural Aluminum |
| Ground Clearance | 2cm | 2cm |
| Weighing | ||
| Capacity | 10~12000kg | 10~8000kg |
| Composite Deviation | 1‰ | 1‰ |
| Max. Working Time | About 50 Hours | About 50 Hours |
| Charging Time | About 5 Hours | About 5 Hours |
| Load Cell | ||
| Capacity (Single load cell) | 1/2/3t (Optional) | 1/2/3t (Optional) |
| Material | Alloy / Stainless steel (Optional) | Alloy / Stainless steel (Optional) |
| Quantity | 6 Pcs | 4 Pcs |
| Protection Class | IP67/68 | IP67/68 |
| Working Temperature | -20℃~60℃ | -20℃~60℃ |
| WS1140 Wheel Weighers Parameter Technical: | |
| Rated load:1/2/3/5/10/12t | Compensated temp.range:-10~+50℃ |
| Static comprehensive error: 0.1%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatability: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:10kg |
