Wheel Load Weighers
WS1131WB
Best portable scales designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, Ningbo saintbond portable weighing machine for trucks for both static and dynamic applications, wheel load weighers are designed for creating static wheel and axle weighing and dynamic axle weighing stations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
best portable scales, portable weighing machine for trucks, wheel load weighers best portable scales, portable weighing machine for trucks, wheel load weighers best portable scales, portable weighing machine for trucks, wheel load weighers
Precision Weighing, Anywhere. Anytime.
Precision Weighing, Anywhere. Anytime.
Our wheel load weighers /portable weighing machine for trucks represent the ultimate in flexibility and accuracy for vehicle weight measurement. Engineered for durability, speed, and simplicity, these robust best portable scales pads provide legal-for-trade or high-accuracy operational data wherever you need it. Eliminate the need for expensive, fixed weigh stations and bring the power of precise weight analysis directly to your site, whether it's a construction yard, a logistics hub, or a roadside checkpoint.
The wheel load weighers Core Value: Weigh any vehicle, in any location, in minutes.
Ningbo Saintbond is the world's largest manufacturer of best portable scales, portable weighing machine for trucks, wheel load weighers in scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and best portable scales that provide essential features for multiple industries.
Axle scale is a portable, hand-held device which is suitable for both static and dynamic weight on vehicles, wheel load weighers are an economical, adaptable and portable solution for vehicle and truck weighing.An axle scale measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This type of best portable scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. wheel load weighers allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.

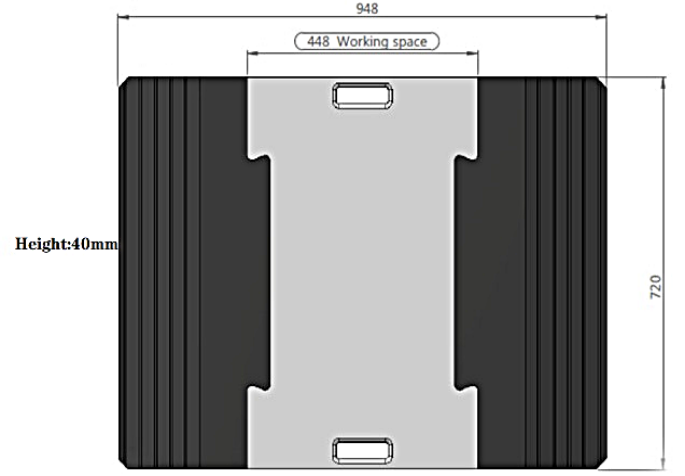

| WS1131WB Wheel Load Weighers Dimension:mm |
| Note: Both cable and spring tube are available on requests. |

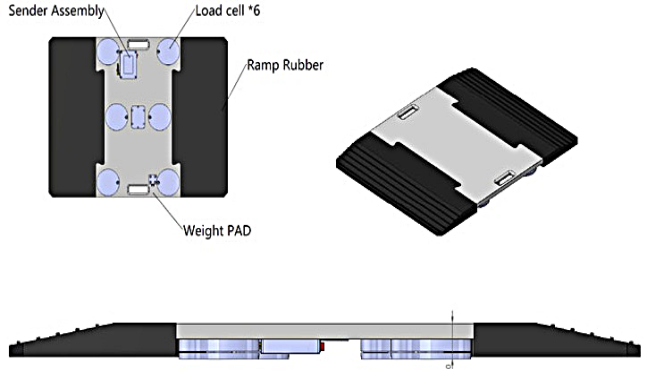

| WS1131WB Wheel Load Weighers Product Detail: |
| WS1131WB Wheel Load Weighers Technical Specification: | |||
| Dynamic error (%F.S): | 3 (5~10km/h) | Static error (%F.S): | 0.1~0.3 |
| Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
| Combined Error : | 0.2(%ld | Temp., Operating: | -40～+80℃ |
| Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9～15DC |
| Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
| Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
| Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
| Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
| Zero Balance: | 4～10%FS | Cable Spec.: | 4-wire shield cable |
| Tem.Effect On Sensitivity: | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
| Temp.Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 100~5000m (Optional) | ||
WS1131WB Wheel Load Weighers Applications:
1:Load control and weighing for the vehicles;
2:Measuring the weight and barycenter of aeroplane;
3:Measuring weight for special purpose;
1:Load control and weighing for the vehicles;
2:Measuring the weight and barycenter of aeroplane;
3:Measuring weight for special purpose;
