Truck Scale Weight
WS1110W-2

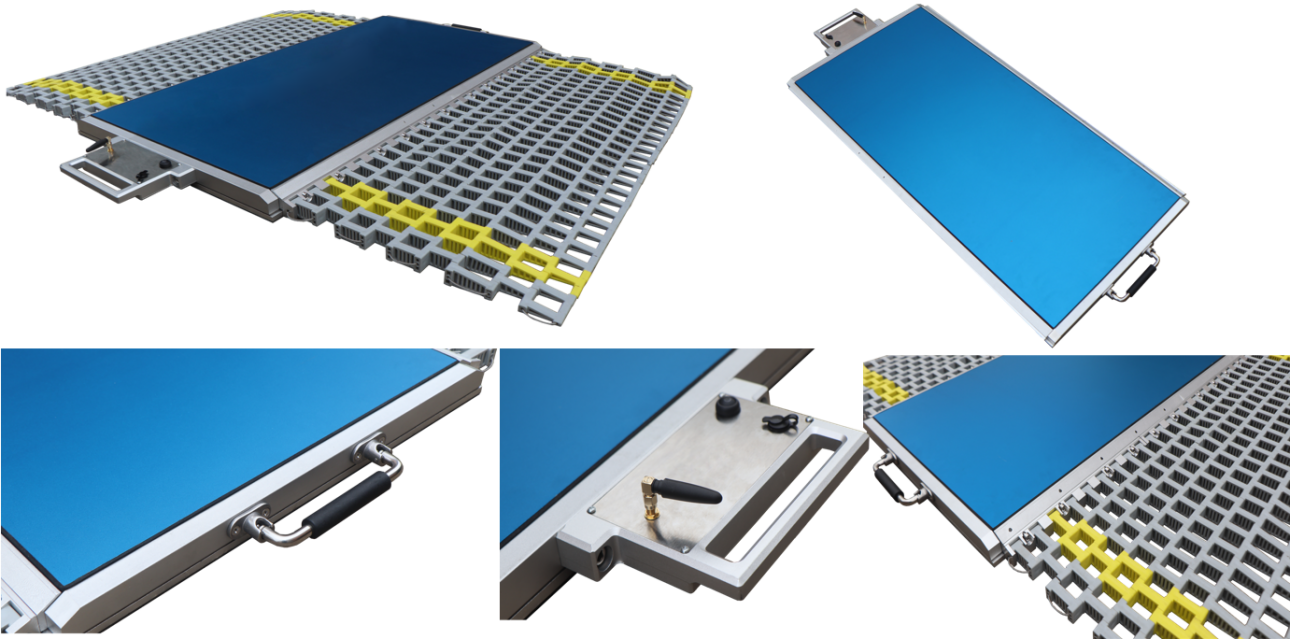

Portable Trailer Scale/ truck scale weight: Revolutionize Your Weighing Operations with Ultimate Portability and Precision
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
20-35Day
Quantity:
truck load weight scale, truck scale weight, portable trailer scale truck load weight scale, truck scale weight, portable trailer scale truck load weight scale, truck scale weight, portable trailer scale truck load weight scale, truck scale weight, portable trailer scale truck load weight scale, truck scale weight, portable trailer scale truck load weight scale, truck scale weight, portable trailer scale
Portable Trailer Scale/ truck scale weight: Revolutionize Your Weighing Operations with Ultimate Portability and Precision
Tired of costly trips to the weighbridge and scheduling nightmares? The Ningbo Saintbond Portable Trailer Scale is the all-in-one solution for farmers, transporters, logistics companies, and aggregate handlers who need accurate, on-demand weight data right at their site. Gain instant control over your payloads, maximize efficiency, and ensure compliance without ever leaving your location.

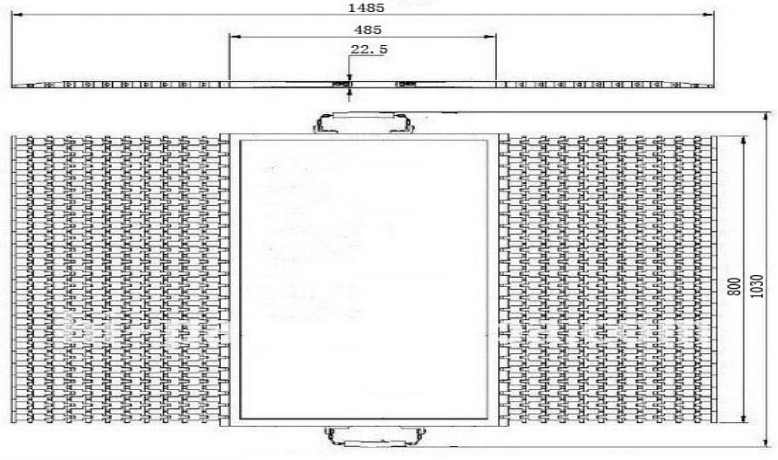

WS1110 Truck Load Weight Scale Dimension:mm
WS1110 Truck Load Weight Scale Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 3~5 (5~10km/h) | |
WS1110 Truck Load Weight Scale Weighing Indicator: (Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | System non-linearity ＜0.01%; | |
| Battery Life: | ≥50 hours | Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
How WS1110 Truck Load Weight Scale Works ?
The Ningbo Saintbond system makes weighing incredibly straightforward:
Deploy:Lay out truck scale weight pads on a firm, flat surface.
Connect:Link the pads to the portable digital indicator.
Tare:Place the scale on the pads and zero out the indicator to account for the trailer's tare weight.
Load & Weigh: Drive the loaded trailer onto the scales. Get a stable, gross weight reading in seconds.
Calculate:The indicator automatically calculates the net weight (Gross - Tare = Net Payload).
The Ningbo Saintbond system makes weighing incredibly straightforward:
Deploy:Lay out truck scale weight pads on a firm, flat surface.
Connect:Link the pads to the portable digital indicator.
Tare:Place the scale on the pads and zero out the indicator to account for the trailer's tare weight.
Load & Weigh: Drive the loaded trailer onto the scales. Get a stable, gross weight reading in seconds.
Calculate:The indicator automatically calculates the net weight (Gross - Tare = Net Payload).
Who WS1110 Truck Load Weight Scale's For?
Agriculture:Farmers, co-ops, and grain elevators for weighing harvests, livestock, and feed.
Transport & Logistics: Trucking companies for verifying axle weights and total payloads.
Construction & Quarries: For weighing aggregates, asphalt, demolition debris, and equipment.
Waste & Recycling: To measure scrap metal, municipal solid waste, and recyclables.
Rental Companies: Ideal for companies renting out heavy machinery and needing to verify weights.
Agriculture:Farmers, co-ops, and grain elevators for weighing harvests, livestock, and feed.
Transport & Logistics: Trucking companies for verifying axle weights and total payloads.
Construction & Quarries: For weighing aggregates, asphalt, demolition debris, and equipment.
Waste & Recycling: To measure scrap metal, municipal solid waste, and recyclables.
Rental Companies: Ideal for companies renting out heavy machinery and needing to verify weights.
Stop Wasting Time and Money on Fixed Weighbridges.
Take control of your productivity and profitability today.
Discover the Ningbo Saintbond difference. Weigh smarter, not harder.
WS1110 Truck Load Weight Scale Product Detail Information:
