Truck Portable Scale
WS1110W-8
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
30Day
Quantity:
portable axle weighing systems, truck portable scale, portable vehicle weighing scales hire portable axle weighing systems, truck portable scale, portable vehicle weighing scales hire portable axle weighing systems, truck portable scale, portable vehicle weighing scales hire
Ningbo Saintbond Portable Axle Weighing Systems /truck portable scale— Precision and Reliability for Your Business
Ningbo Saintbond offers a modern, cost-effective, and professional solution for truck portable scale and axle load monitoring. We guarantee high product quality, competitive prices, and comprehensive technical support.
WS1110Portable Axle Weighing Systems Dimension:mm
WS1110Portable Axle Weighing Systems Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 3~5 (5~10km/h) | |
WS1110Portable Axle Weighing Systems Weighing Indicator: ( Optional )
| Cable Version | Wireless Version | |||
| Static | MWI01 |  | WI280 |  |
| MWI02 |  | WI680II |  | |
| Dynamic | MWI03 |  | WI380 |  |
WS1110 Portable Axle Weighing Systems Application Areas:
Road Enforcement: Overload control for vehicle axles and gross weight.
Logistics & Transport: Optimizing truckloads and monitoring fuel efficiency.
Industry & Warehousing: Fast weighing for goods receipt and dispatch.
Construction:Weighing of special equipment and dump trucks.
Agriculture:Load control for agricultural machinery.
Road Enforcement: Overload control for vehicle axles and gross weight.
Logistics & Transport: Optimizing truckloads and monitoring fuel efficiency.
Industry & Warehousing: Fast weighing for goods receipt and dispatch.
Construction:Weighing of special equipment and dump trucks.
Agriculture:Load control for agricultural machinery.
Ready to purchase truck portable scale/ portable vehicle weighing scales hire? Contact us today for a free consultation and a personalized commercial proposal!

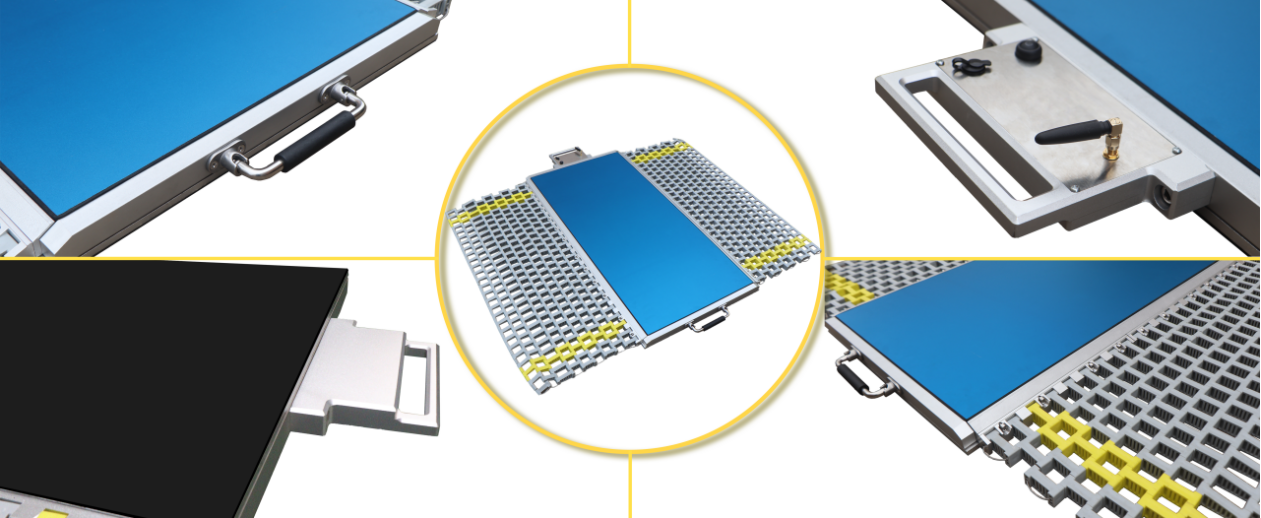

WS1110Portable Axle Weighing Systems Product Details:
