Truck Axle Scale
WS1101W-4
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
truck axle scale, truck axle scales, portable scales to weigh trucks truck axle scale, truck axle scales, portable scales to weigh trucks truck axle scale, truck axle scales, portable scales to weigh trucks
Ningbo Saintbond Truck Axle Scales / portable scales to weigh trucks
Precision Weighing for Safety, Compliance, and Efficiency
Precision Weighing for Safety, Compliance, and Efficiency
Ningbo Saintbond specializes in manufacturing high-performance truck axle scales / portable scales to weigh trucks, engineered to deliver reliable and legally compliant weight measurements. Our robust weighing solutions are trusted by transportation companies, logistics hubs, and weight enforcement stations worldwide for ensuring safety and optimizing fleet operations.
WS1101 Truck Axle Scales Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Truck Axle Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |
WS1101 Truck Axle Scales Weighing Indicator: ( Optional )
| Cable Version | Wireless Version | |||
| Static | MWI01 |  | WI280 |  |
| MWI02 |  | WI680II |  | |
| Dynamic | MWI03 |  | WI380 |  |
WS1101 Truck Axle Scales Key Features:
High Accuracy: Advanced sensor technology guarantees precise and repeatable results, fully compliant with national weighing standards.
Heavy-Duty Construction: Built with high-strength materials to withstand harsh environments and intensive daily use.
High Accuracy: Advanced sensor technology guarantees precise and repeatable results, fully compliant with national weighing standards.
Heavy-Duty Construction: Built with high-strength materials to withstand harsh environments and intensive daily use.
WS1101 Truck Axle Scales Flexible Configuration:
Portable Axle Scales: For temporary checkpoints, on-site weighing, and mobile operations.
Pit-Mounted (Fixed) Scales: For permanent installation in weigh stations, warehouses, and production facilities.
User-Friendly Operation: An intuitive interface and seamless integration with peripherals like printers and management software streamline your workflow.
Portable Axle Scales: For temporary checkpoints, on-site weighing, and mobile operations.
Pit-Mounted (Fixed) Scales: For permanent installation in weigh stations, warehouses, and production facilities.
User-Friendly Operation: An intuitive interface and seamless integration with peripherals like printers and management software streamline your workflow.
WS1101 Truck Axle Scales Key Benefits:
Avoid Overload Fines: Ensure compliance with legal weight limits and enhance road safety.
Optimize Fleet Efficiency: Maximize load distribution and vehicle utilization with precise axle weight data.
Reduce Operating Costs: Durable design minimizes maintenance needs and extends equipment service life.
Avoid Overload Fines: Ensure compliance with legal weight limits and enhance road safety.
Optimize Fleet Efficiency: Maximize load distribution and vehicle utilization with precise axle weight data.
Reduce Operating Costs: Durable design minimizes maintenance needs and extends equipment service life.
Request a Free Quote or Product Details Today!
Contact Ningbo Saintbond to find the ideal portable scales to weigh trucks weighing solution for your specific application.
Contact Ningbo Saintbond to find the ideal portable scales to weigh trucks weighing solution for your specific application.

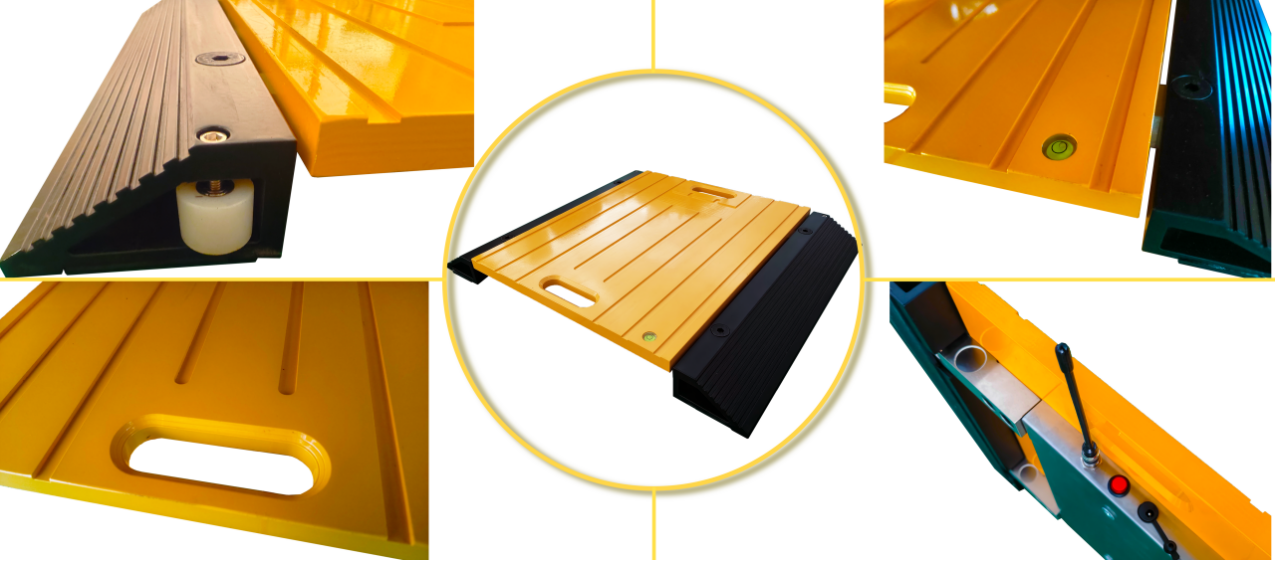

WS1101 Truck Axle Scales Product Detail Informations:
