Static Weighing Scale
WS1104W
Ningbo saintbond Static weighing scale for both static and dynamic applications, portable wheel scales axle wireless pads designed for creating static wheel and axle weighing stations, avoiding the hassle of connecting cables between the pads and the indicator, cheap race car scales are designed for creating static wheel and axle weighing and dynamic axle weighing stations.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Ningbo Saintbond portable wheel scales measures the individual weight of a vehicle’s axles and can provide the total weight of a vehicle. This portable wheel scales is an ideal solution for applications with limited space and temporary or seasonal weighing needs. After one axle is weighed, the vehicle drives forward for the next axle to be weighed. portable wheel scales allow operators to monitor overloads and underloads, ensuring outgoing product is maximized while maintaining compliance with road weight limits.
Ningbo Saintbond is the world’s largest manufacturer of Static weighing scale, portable wheel scales ,cheap race car scalesin scaling technology. From complete wireless communication between scales, remote devices, and software, to industry-leading battery life, we offer a comprehensive range of products to fit any weighing application. Ningbo Saintbond sells quality, China-made in-ground and portable axle weighing systems that provide essential features for multiple industries.
Ningbo Saintbond manufactures Static weighing scale, portable wheel scales ,cheap race car scales to weigh trucks and other commercial vehicles in a variety of industries, including transportation, logistics, construction, energy, aggregates and custom vehicle modification. Our wide range of Static weighing scale, portable wheel scales ,cheap race car scales helps customers maintain compliance with legal vehicle weight restrictions, optimize payload to improve efficiency and safety, and save operating costs by tracking inbound and outbound shipments.
Aluminum-alloy; Ultra thin portable wheel scales design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

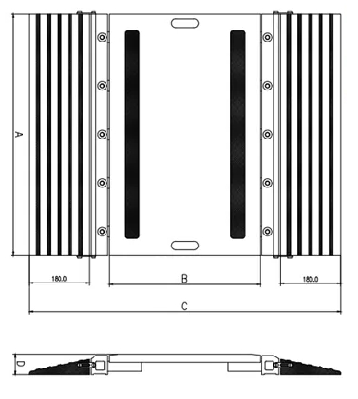

WS1104W Portable Wheel Wcales Dimension: mm
| Capacity | A | B | C | D |
| 1~5t | 500 | 400 | 760 | 58 |
| 2~20t | 720 | 450 | 810 | 58 |
| 5~25t | 900 | 500 | 860 | 58 |
WS1104W Portable Wheel Wcales Technical Parameter:
| Dynamic comprehensive error(%F.S): 1.5 (1~5km/h) 3 (5~10km/h) | ||
| Static error (%F.S):0.1~0.3 | Compensated temp.range:-10~+50℃ | |
| Rated load:1~25t | Static error:0.1~0.3%F.S | |
| Dynamic error: 3%F.S (5~10km/h) | Insulation resistance:≥5000 MΩ(100VDC) | |
| Static comprehensive error: 0.1~0.5%F.S | Use temp.range:-30~+80℃ | |
| Rated output:1.0±0.1 mV/V | Temp.effect on zero: 0.03 F.S/10℃ | |
| Non-linearity:0.2%F.S | Temp.effect on span:0.05 F.S/10℃ | |
| Error on corners: 0.2%F.S | Excitation voltage:9~15VDC | |
| Repeatability: 0.05%F.S | Recommended voltage:10 V | |
| Zero balance: ±1%F.S | Defend grade: IP66 | |
| Wireless | PC Software | Optional, Customizable |
| Mobile Bluetooth | Optional | |
| Wireless Distance | 50~200m (Optional) | |
WS1104W Portable Wheel Wcales Weighing Indicator:
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | ◎Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | ◎Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | ◎Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | ◎The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | ◎System non-linearity＜0.01%; | |
| Battery Life: | ≥50 hours | ◎Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | ◎Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | ◎Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | ◎Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
