Semi Scale
WST003-4
Commercial truck scales near me designed and built with vey high quality materials, this represents the most efficient solution for saving time, space, and money in comparison to the classic weigh bridges currently available on the market, semi scale is called so because it is mounted in a pit. A pit is dug into and the foundation along with pillars and other support is casted with concrete and the bridge deck is mounted in this pit so that the surface of the bridge is kept at the same level as road level, cattle weigh bridge is ideal for applications in the construction and recycling industry where short-term weighing is more prevalent.
Quantity:
Ningbo Saintbond semi scale, commercial truck scales near me or cattle weigh bridge is a large set of scales, usually mounted permanently on a steel or concrete foundation, that is used to weigh entire rail or road vehicles and their contents. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated. semi scale can be surface mounted with a ramp leading up a short distance and the weighing equipment underneath or they can be pit mounted with the weighing equipment and platform in a pit so that the weighing surface is level with the road.
Specifications:
| size | Length of module | QTY of bearing frame | Actual length(m) |
| 3X6 | 5.55 | 2 | 6.25 |
| 3X8 | 3.55+3.55 | 3 | 8.15 |
| 3X9 | 4.55+3.55 | 3 | 9.15 |
| 3X10 | 4.55+4.55 | 3 | 10.15 |
| 3X12 | 5.55+5.55 | 3 | 12.15 |
| 3X15 | 4.55+4.55+4.55 | 4 | 15.05 |
| 3X16 | 4.55+5.55+4.55 | 4 | 16.05 |
| 3X18 | 5.55+5.55+5.55 | 4 | 18.05 |
| 3X20 | 4.55+4.55+4.55+4.55 | 5 | 19.95 |
| 3X21 | 5.55+4.55+4.55+4.55 | 5 | 20.95 |
| 3X22 | 5.55+4.55+4.55+5.55 | 5 | 21.95 |
| 3X24 | 5.55+5.55+5.55+5.55 | 5 | 23.95 |
Description:
1.The WST003 series semi scale are the newest products which is suitable for container shipment. The semi scale is robust and has the highest quality paint finish available in the industry. These commercial truck scales near me equipped with high accuracy load cell and intelligent weighing terminal.
2.The semi scale has low module, it is only 230mm and 2 pcs 3x18m can be delivered in one 20' container, the actual length is 18m for 3x18m truck scale, not the 17.4m. it is designed for the trucks may be frequently overloaded.
3.The cattle weigh bridge weighing system is built on high-accuracy and good working reliability. The system provides weighing accuracy.
4.The WST003 cattle weigh bridge truck scales are designed to be transported in a standard sea container or on a flatbed truck without the added expense of a wide-load permit and extra safety precautions such as flashing lights and escort vehicles.
5.The cattle weigh bridge can also be disassembled and transported to another site, These scales are ideally suited for above-ground mounting where debris typically accumulates and must be periodically cleaned to insure that these materials do not affect the scale operation like that of many competitive models which are not so easily cleaned.
6.The commercial truck scales near me entire weighing system also can be equipped with peripherals like printers, scoreboards, PCS and with commercial truck scales near me weighing software to meet the customer's specific requirements.
Applications:
1.Weighing
2.Net weight/tare
3.Weight accumulation
Competitive Advantage:
1.We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2.Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3.Easy installation, robust structure.

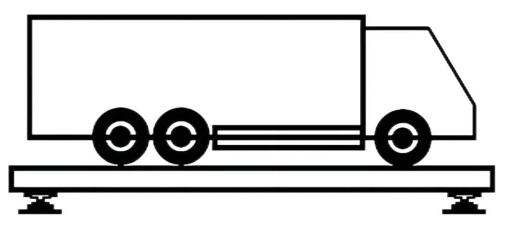

Pit Weighbridge:
Advantages: Small cover an area, no need for slopes, convenient to use, which is more suitable for users with smaller venues;
Disadvantages: When installing, it is necessary to choose a place with high terrain, which is convenient for drainage, and maintenance and repair operations may be difficult;

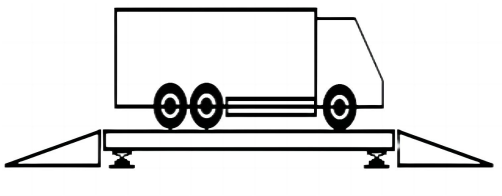

Pitless Weighbridge:
Advantages: Easy to install, easy to maintain and repair, beneficial for ventilation of the scale body, prolonging its service life, higher than the ground for drainage, suitable for customers with larger sites, or those who have already poured concrete on the ground and do not want to dig foundation pits again.
Disadvantage: It requires a dedicated slope for guidance and occupies a large area.
