Road Weigh in Motion
WS1197-7
Weigh in motion adalah are designed to automatically capture and record the weight readings of each individual axle loading, road weigh in motion is an established feature of axle weighing and was originally developed by Ningbo Saintbond, high speed weigh in motion allows the weighing of a truck while it is in motion. It has many advantages in terms of utility and efficiency over the traditional approach of static weighing.
Delivery
FOB
minimum order
1 set
Supply Ability
20000set / Week
Country of Origin
Ningbo,China
Stock Time
5~30Day
Quantity:
Vehicle dynamic weighing system High speed weigh in motion or dynamic weighing provides a fast and accurate portable weighing facility for vehicles of all sizes, weights and axle configurations.
High speed weigh in motion from Ningbo Saintbond are designed to accurately and efficiently measure the weight of vehicles in motion. The data collected from road weigh in motion can be used to enforce weight regulations, monitor vehicle performance, and identify potential safety hazards on the road. road weigh in motion an innovative solution that can help streamline the weighing process for commercial vehicles, increasing efficiency and reducing congestion at a facility or on roads and highways.
High speed weigh in motion offers a cost-effective solution to organisations by monitoring the weight of vehicles as they travel over a railway line, roadway, or across a mining site. There are many benefits to a weigh in motion adalah, such as they increase productivity, efficiency, instant identification of overload, comprehensive reporting and these, are also very cost-effective.

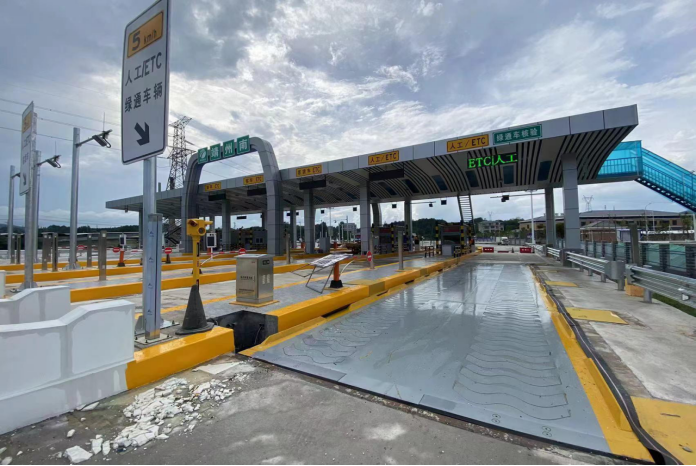

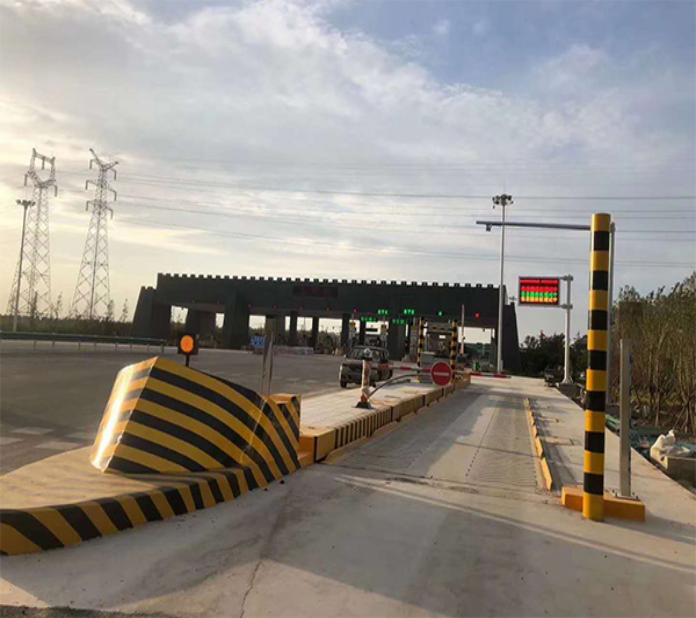

| The WS1197 series full vehicle dynamic highway vehicle automatic weighing system consists of a dynamic weighing equipment (full vehicle weighing platform), a weighing controller, a vehicle separator (light curtain), and an axle recognizer (integrated on the weighing platform). The dynamic weighing equipment is installed in the lane, and the vehicle separator is installed on the toll island, responsible for basic data collection; The weighing controller is installed on the toll island or in the toll booth, responsible for data processing. |
| The main technical parameters are as follows: |
| 1:Model: WS1197-100 (150); |
| 2:Weighing accuracy high speed weigh in motion: Total vehicle weight accuracy level: Level 1; |
| 3:Travel speed of high speed weigh in motion: ≤ 15 kilometers per hour; |
| 4:Scale platform specification: 21m x 3.0m (ordinary lane); 21m x 3.4m (ultra wide lane); The specific specifications of the weighing platform can be customized according to customer needs. |
| 5:Scale body: box structure; |
| 6:Maximum weighing: 150t; |
| 7:Maximum safety overload: 150% F.S; |
| 8:Service life: not less than 5 million trips; |
9:Detectable number of vehicle axles: ≤ 30 axles;   |
