Single Pulley Tension Sensor
LCS7013
The Single Pulley Tension Sensor from Ningbo Saintbond is a high-precision force measurement device engineered for accurate tension monitoring and control in industrial processes. Integrating a sensitive load cell within a robust pulley structure, this sensor directly replaces idler rollers on production lines.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC7013
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 1 ~ 50N
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Straight from Our Factory, Customized for Your Needs.
Brand Name: Saintbond
Product Orgin: China
Item No.: LC7013
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities: 1 ~ 50N
Material: Alloy / Stainless Steel
Protection Class:IP67/68
Your Application, Our Custom Load Cell Solution:
✅ Alloy /stainless stell construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ ODM/OEM;
✅ Logo customization
✅ Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Weighing Indicator.
Delivery
FOB EXW
minimum order
2 pieces
Supply Ability
20000pieces / Month
Country of Origin
China
Stock Time
15 ~ 35Day
Quantity:
load cell roller, load cell factory, Single Pulley Tension Sensor load cell roller, load cell factory, Single Pulley Tension Sensor load cell roller, load cell factory, Single Pulley Tension Sensor load cell roller, load cell factory, Single Pulley Tension Sensor
The Single Pulley Tension Sensor from Ningbo Saintbond is a high-precision force measurement device engineered for accurate tension monitoring and control in industrial processes. Integrating a sensitive load cell within a robust pulley structure, this sensor directly replaces idler rollers on production lines. It provides real-time measurement of the tension exerted by material passing over the pulley, serving as a core component in systems controlling web, wire, or strip tension. It is widely utilized across industries such as printing, packaging, textiles, paper manufacturing, wire & cable, and metal processing.

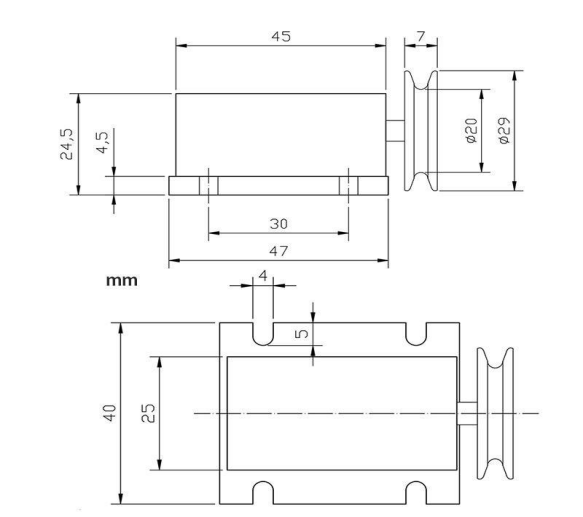

LCS7013 Single Pulley Tension Sensor Dimension: mm
LCS7013 Single Pulley Tension Sensor Technical Parameter:
| Capacity: | 1/2/5/10/20/50N | ||
| Rated Output: | 1.5mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
| Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
| Creep After 30 Minutes: | ±0.5% of rated output | Safe Overload: | 1.5 |
| Nonlinearity: | ±0.5% of rated output | Input Impedance: | 385 ohm ± 20 ohm |
| Repeatability: | ±0.5% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
| Temp. Effect On Output: | ≤0.02% of applied output/ºC | Rated Excitation: | 5V DC/AC |
| Temp. Effect On Zero: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
LCS7013 Single Pulley Tension Sensor Key Features:
Direct & Accurate Measurement: Functioning as a true load cell roller, this Single Pulley Tension Sensor measures tension directly at the point of contact. This design eliminates inaccuracies associated with indirect measurement methods, delivering highly reliable and precise data.
Robust Build & Simple Installation: The monolithic, heavy-duty design forms a complete pulley assembly. Installation is straightforward—simply replace an existing roller and connect the cable—requiring no complex machine modifications, which significantly reduces downtime and setup costs.
High Rigidity & Low Inertia: The pulley and internal mechanics are optimized for high radial stiffness, effectively resisting lateral forces. Its low rotational inertia minimizes impact on the dynamic response of high-speed systems, making it ideal for tension measurement during precision winding and unwinding.
Wide Capacity Range & High Reliability: Available in various capacities to suit diverse applications, from lightweight films to heavy-gauge materials. Featuring full sealing and alloy steel construction, it ensures long-term reliability and durability in challenging industrial environments.
Stable Signal Output: Equipped with precision strain gauges and temperature compensation circuits, it delivers a stable, low-noise output signal (mV/V, voltage, or current), enabling seamless integration with PLCs and dedicated tension controllers.
Direct & Accurate Measurement: Functioning as a true load cell roller, this Single Pulley Tension Sensor measures tension directly at the point of contact. This design eliminates inaccuracies associated with indirect measurement methods, delivering highly reliable and precise data.
Robust Build & Simple Installation: The monolithic, heavy-duty design forms a complete pulley assembly. Installation is straightforward—simply replace an existing roller and connect the cable—requiring no complex machine modifications, which significantly reduces downtime and setup costs.
High Rigidity & Low Inertia: The pulley and internal mechanics are optimized for high radial stiffness, effectively resisting lateral forces. Its low rotational inertia minimizes impact on the dynamic response of high-speed systems, making it ideal for tension measurement during precision winding and unwinding.
Wide Capacity Range & High Reliability: Available in various capacities to suit diverse applications, from lightweight films to heavy-gauge materials. Featuring full sealing and alloy steel construction, it ensures long-term reliability and durability in challenging industrial environments.
Stable Signal Output: Equipped with precision strain gauges and temperature compensation circuits, it delivers a stable, low-noise output signal (mV/V, voltage, or current), enabling seamless integration with PLCs and dedicated tension controllers.
LCS7013 Single Pulley Tension Sensor Primary Applications:

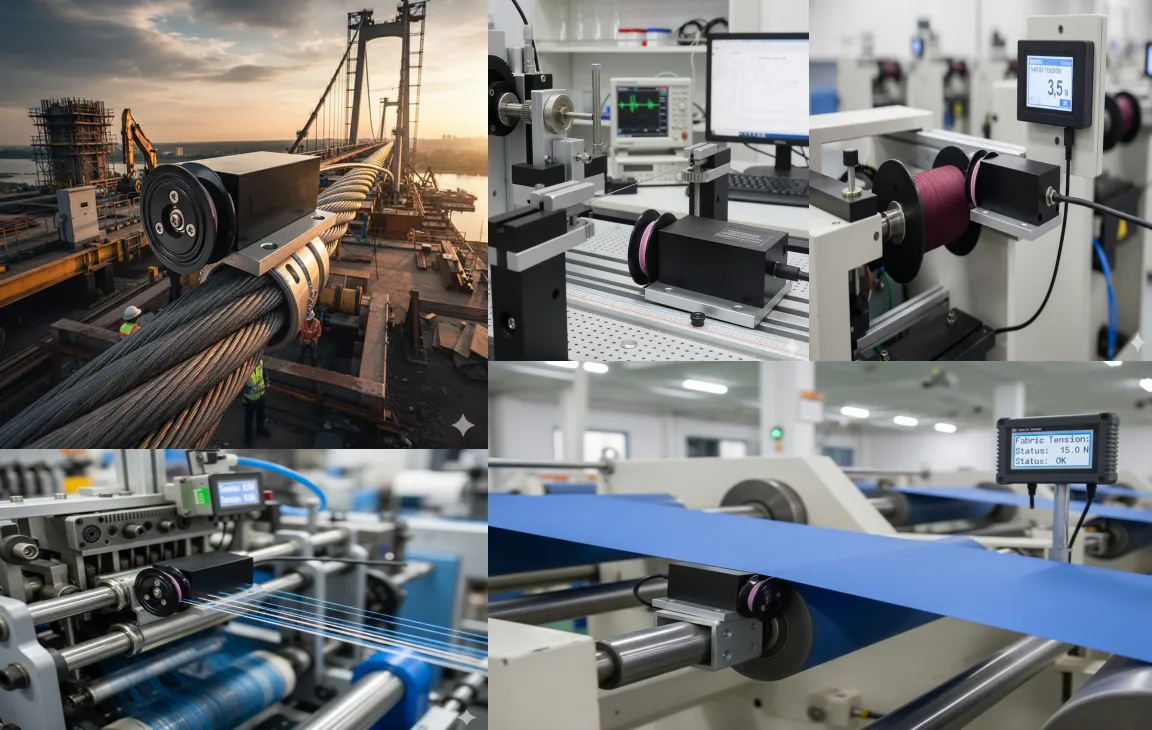

Web Tension Control: Used on coating, laminating, slitting, and printing lines to monitor and control the tension of materials like plastic films, paper, or foils in real-time, ensuring process quality and preventing stretching, wrinkling, or breaks.
Winding/Tension Control: As a core component for winding tension measurement, it is installed before a winder/rewinder to precisely control constant or taper tension, ensuring uniform and tight rolls while preventing layer damage or loose cores.
Unwinding Tension Control: Installed after an unwinding unit, it monitors feed tension, providing the feedback signal necessary for stable, closed-loop tension control during unwinding.
Process Tension Monitoring: Serves as a tension monitoring point at intermediate stages of a production line, supplying reliable data for process analysis and quality control.
Web Tension Control: Used on coating, laminating, slitting, and printing lines to monitor and control the tension of materials like plastic films, paper, or foils in real-time, ensuring process quality and preventing stretching, wrinkling, or breaks.
Winding/Tension Control: As a core component for winding tension measurement, it is installed before a winder/rewinder to precisely control constant or taper tension, ensuring uniform and tight rolls while preventing layer damage or loose cores.
Unwinding Tension Control: Installed after an unwinding unit, it monitors feed tension, providing the feedback signal necessary for stable, closed-loop tension control during unwinding.
Process Tension Monitoring: Serves as a tension monitoring point at intermediate stages of a production line, supplying reliable data for process analysis and quality control.
Ningbo Saintbond specializes in industrial weighing and force measurement solutions. As a professional load cell factory, we combine extensive technical expertise with deep industry application knowledge to deliver reliable, high-performance components.
The Single Pulley Tension Sensor (or load cell roller) from Ningbo Saintbond, with its integrated design, superior accuracy, and ease of installation, is an optimal choice for modern tension control systems. It effectively enhances production line performance, ensures product quality, and improves operational efficiency.
