Dynamic Axle Weigher
WS1110D-1
Dynamic Axle Weigher / truck axle scales portable, high-precision weighing system for real-time vehicle axle load measurement. Features advanced sensors, ±3% accuracy, and rugged IP67 protection. Easy setup in 3 mins, works in -30°C~70°C. Wireless data transmission, 50-hour battery life. Truck axle scales tandem axle load scale Ideal for roadside enforcement, logistics, and overload control. Ensures compliance with transport regulations efficiently.
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Quantity:
( Dynamic Axle Weigher , truck axle scales , tandem axle load scale Dynamic Axle Weigher , truck axle scales , tandem axle load scale Dynamic Axle Weigher , truck axle scales , tandem axle load scale Dynamic Axle Weigher , truck axle scales , tandem axle load scale Dynamic Axle Weigher , truck axle scales , tandem axle load scale )
Dynamic Axle Weigher / truck axle scales portable, high-precision weighing system for real-time vehicle axle load measurement. Features advanced sensors, ±3% accuracy, and rugged IP67 protection. Easy setup in 3 mins, works in -30°C~70°C. Wireless data transmission, 50-hour battery life. Truck axle scales tandem axle load scale Ideal for roadside enforcement, logistics, and overload control. Ensures compliance with transport regulations efficiently. （ dynamic axle weigher, truck axle scales, tandem axle load scale）
Dynamic Axle Weigher / truck axle scales Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

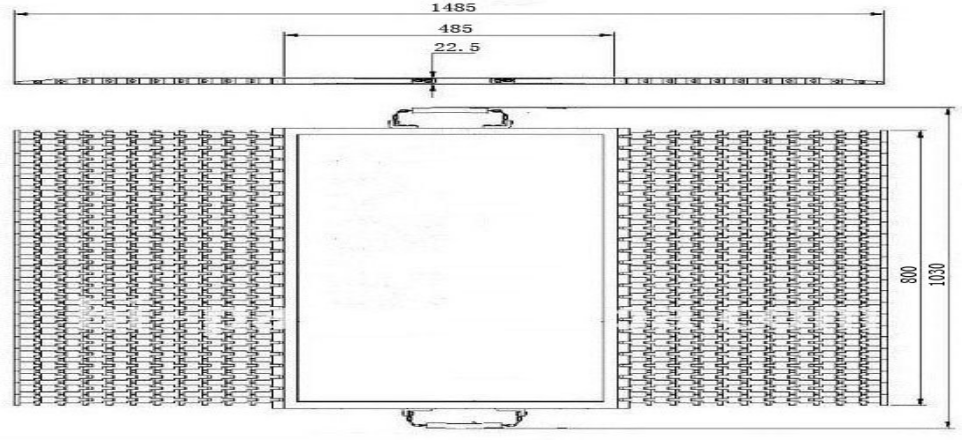

WS1110D Dynamic Axle Weigher Dimension:mm
Note: The size and capacity can be customized according to customer requirements;
WS1110D Dynamic Axle Weigher Wireless Specification:
| A/D Conversion Method | Σ-Δ 24bit |
| Input Signal Range | –19.5mV~19.5mV |
| Load Cell Excitation | DC 5V |
| Max. Connection Number Of Load Cell | 1~4 |
| Load Cell Connection Mode | 4 wire |
| Operating Temperature | -10°C~40 °C |
| Allowable Working Temperature | -40 °C ~70 ° C |
| Wireless Transmission Frequency | 430MHz to 470MHz |
| Wireless Transmission Distance | 100~300meters (In Open Place) |
| PC Software | Optional, Customizable |
WS1110D Dynamic Axle Weigher Technical Specification
| Rated Load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic Error (%F.S): 3 ~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static Comprehensive Error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated Output(Mv/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-Linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error On Corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero Balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation Voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended Voltage(V): 10 | Defend grade: IP66 /IP67 |
