Axle Weigher
WS1110W-3
An Axle Weigher / axle weighing scales is a precision weighing system designed to measure the individual axle, axle-group, and gross vehicle weights (GVW) of trucks and other multi-axle vehicles. Unlike traditional, large pit-mounted scales, modern axle weighers are often portable, low-profile, and highly modular, allowing for flexible deployment without permanent infrastructure. They are the cornerstone tool for road weight enforcement, load optimization, and safety compliance worldwide.
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:1~200t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 sheet
Supply Ability
20000sheet / Month
Country of Origin
China
Stock Time
20-35Day
Quantity:
axle weigher, axle weighing scales, portable vehicle scales axle weigher, axle weighing scales, portable vehicle scales axle weigher, axle weighing scales, portable vehicle scales axle weigher, axle weighing scales, portable vehicle scales axle weigher, axle weighing scales, portable vehicle scales axle weigher, axle weighing scales, portable vehicle scales
An Axle Weigher / axle weighing scales is a precision weighing system designed to measure the individual axle, axle-group, and gross vehicle weights (GVW) of trucks and other multi-axle vehicles. Unlike traditional, large pit-mounted scales, modern axle weighers are often portable, low-profile, and highly modular, allowing for flexible deployment without permanent infrastructure. They are the cornerstone tool for road weight enforcement, load optimization, and safety compliance worldwide.

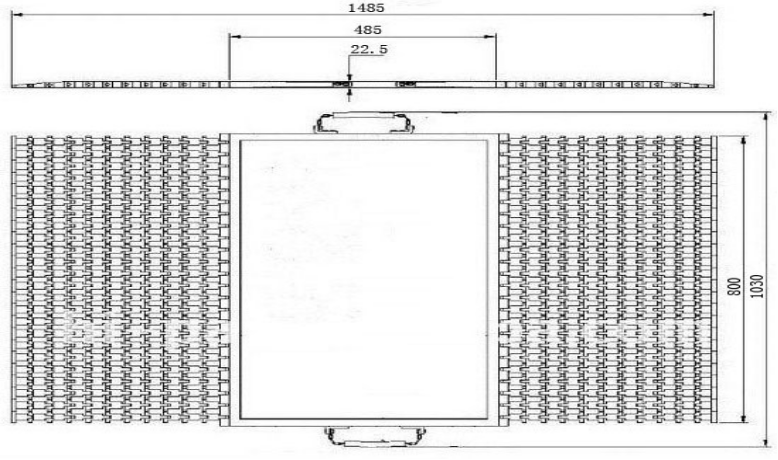

WS1110 Portable Vehicle Scales Dimesion:mm
WS1110 Portable Vehicle Scales Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 3~5 (5~10km/h) | |
WS1110 Portable Vehicle Scales Weighing Indicator: ( Optional)
| WI280 / WI680 Static Wireless Weighing Indicator: | WI380 Dynamic Wireless Weighing Indicator: | ||
  |  | ||
| Wireless Frequency: | 430~485MHz | Full-scale temperature coefficient: 5ppm/℃; | |
| Wireless Distance: | Min:50~100m(In Open Area) | Inner resolution: 24 bits; | |
| A/D Conversion Rate: | ≥50times/seconds | Sampling speed: 200 times/second; | |
| Operating Temp. Range: | -20～+80℃ | The speed of display renewal:12.5times/sec; | |
| Operating Humidity: | ≤85%RH under 20℃ | System non-linearity ＜0.01%; | |
| Battery Life: | ≥50 hours | Impulse source of sensor: DC 5V±2%; | |
| Non-Linearity: | 0.01%F.S | Operating temperature range: 0℃--40℃; | |
| Stable Time: | ≤5 Seconds | Power supply sink (without the sensor): 70mA(no printing and no back lighting), 1000mA(printing); | |
| Citation: | GB/T7551-2008/ OIML R60 | Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A); | |
WS1110 Axle Weighing Scales Typical Applications:
Mobile Weight Enforcement: Used by DOT and law enforcement for setting up temporary checkpoints to identify and penalize overloaded vehicles evading fixed weigh stations.
Construction & Mining: Monitoring payloads on incoming and outgoing trucks to ensure safety, prevent road damage, and manage billing.
Logistics & Freight: Verifying container and trailer loads for compliance with shipping documents and optimizing load distribution.
Agriculture: Weighing harvest yields directly in the field or at temporary collection points.
Aviation & Military: Weighing aircraft, military vehicles, and cargo in remote or temporary locations.
Mobile Weight Enforcement: Used by DOT and law enforcement for setting up temporary checkpoints to identify and penalize overloaded vehicles evading fixed weigh stations.
Construction & Mining: Monitoring payloads on incoming and outgoing trucks to ensure safety, prevent road damage, and manage billing.
Logistics & Freight: Verifying container and trailer loads for compliance with shipping documents and optimizing load distribution.
Agriculture: Weighing harvest yields directly in the field or at temporary collection points.
Aviation & Military: Weighing aircraft, military vehicles, and cargo in remote or temporary locations.
WS1110 Axle Weighing Scales System Components:
A complete axle weigher system typically includes:
Weighing Platforms: 2 or more portable modules.
Weight Indicator/Instrument: A ruggedized display with a built-in processor and software.
Approach Ramps: For smooth vehicle ascent and descent.
Cabling or Wireless Kits: For communication between platforms and the indicator.
A complete axle weigher system typically includes:
Weighing Platforms: 2 or more portable modules.
Weight Indicator/Instrument: A ruggedized display with a built-in processor and software.
Approach Ramps: For smooth vehicle ascent and descent.
Cabling or Wireless Kits: For communication between platforms and the indicator.
The modern Axle Weigher / axle weighing scales is the definitive solution for dynamic, portable, and precise vehicle weighing. Its unparalleled combination of accuracy, durability, and mobility makes it an indispensable asset for ensuring road safety, enforcing regulations, and optimizing logistical operations. Investing in our axle weigher system means choosing efficiency, compliance, and cutting-edge technology.
For detailed quotations, full technical datasheets, or an on-site demonstration, please do not hesitate to contact our sales team.

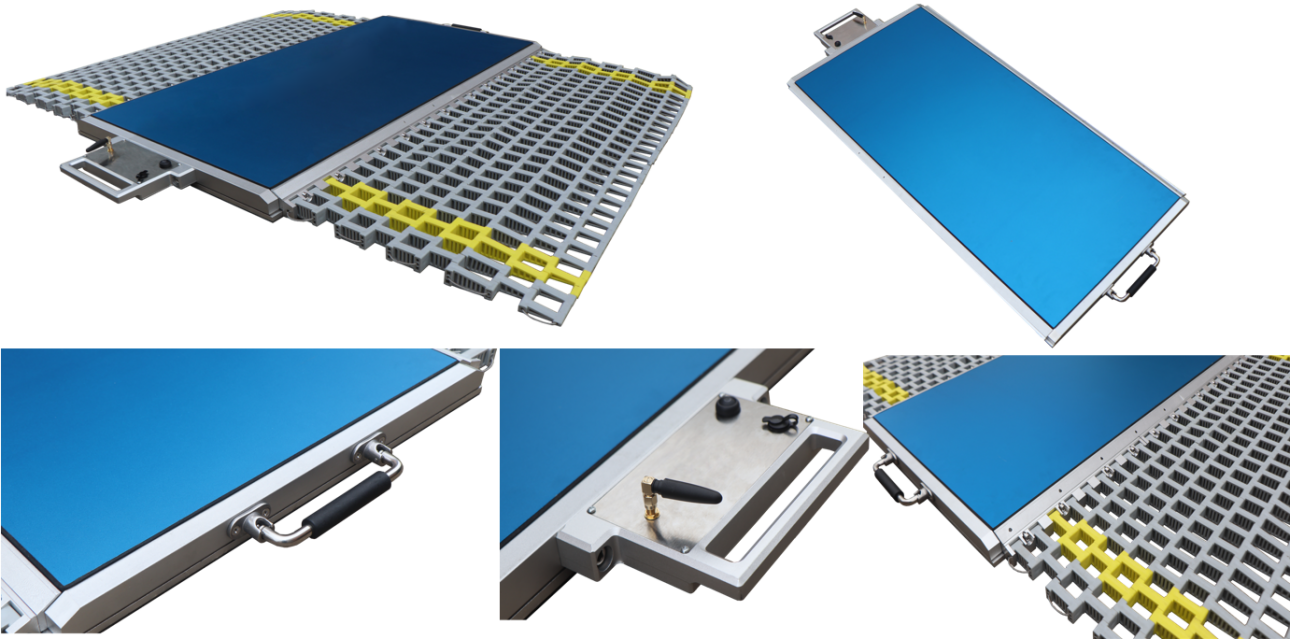

WS1110 Axle Weighing Scales Detail Informations:
