Axle Load Scale
WS1101W-6
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1101
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
Exw Fob
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
15-30Day
Quantity:
axle load scale, portable axle scales for sale, portable scales for trailers axle load scale, portable axle scales for sale, portable scales for trailers axle load scale, portable axle scales for sale, portable scales for trailers
Ningbo SAINTBOND - Professional Axle Load Scale & portable scales for trailers Weighing Solutions
Ningbo SAINTBOND, is a leading manufacturer and solution provider specializing in high-precision, axle load scales and portable scales for trailers weighing systems. With a strong commitment to innovation, quality, and customer satisfaction, we serve a global clientele in logistics, law enforcement, waste management, and various industrial sectors.
Our core mission is to deliver reliable and efficient weighing technology that enhances operational efficiency, ensures safety, and supports regulatory compliance.
WS1101 Axle Load Scale Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Axle Load Scale Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |

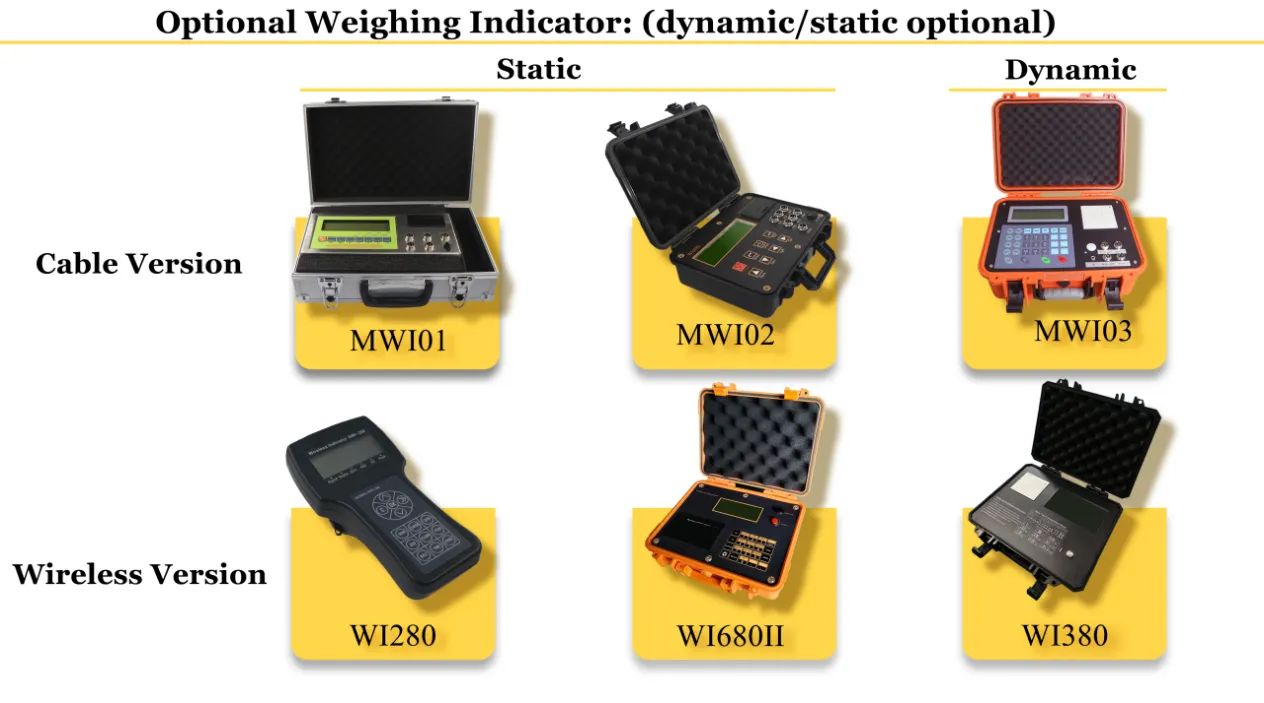

WS1101 Axle Load Scale Optional Weighing Indicator:
WS1101 Axle Load Scale Typical Applications:
þHighway Overload Pre-control Systems
þLaw Enforcement & Weigh-in-Motion (WIM) Stations
þLogistics & Freight Management Centers
þRecycling & Waste Management Facilities
þConstruction & Quarry Sites
þAgricultural and Bulk Material Handling
þAirport Cargo and Port Logistics
þHighway Overload Pre-control Systems
þLaw Enforcement & Weigh-in-Motion (WIM) Stations
þLogistics & Freight Management Centers
þRecycling & Waste Management Facilities
þConstruction & Quarry Sites
þAgricultural and Bulk Material Handling
þAirport Cargo and Port Logistics
Why Choose Ningbo SAINTBOND?
Factory-Direct Pricing: Competitive costs without compromising on quality.
Proven Quality & Reliability: Rigorous quality control at every stage of production.
Extensive Export Experience: Proven track record of supplying products to markets worldwide.
Professional Engineering Team: Dedicated to R&D and providing expert technical solutions.
Factory-Direct Pricing: Competitive costs without compromising on quality.
Proven Quality & Reliability: Rigorous quality control at every stage of production.
Extensive Export Experience: Proven track record of supplying products to markets worldwide.
Professional Engineering Team: Dedicated to R&D and providing expert technical solutions.
Let us be your trusted partner for all your weighing solutions. Request a quote or product catalog today!

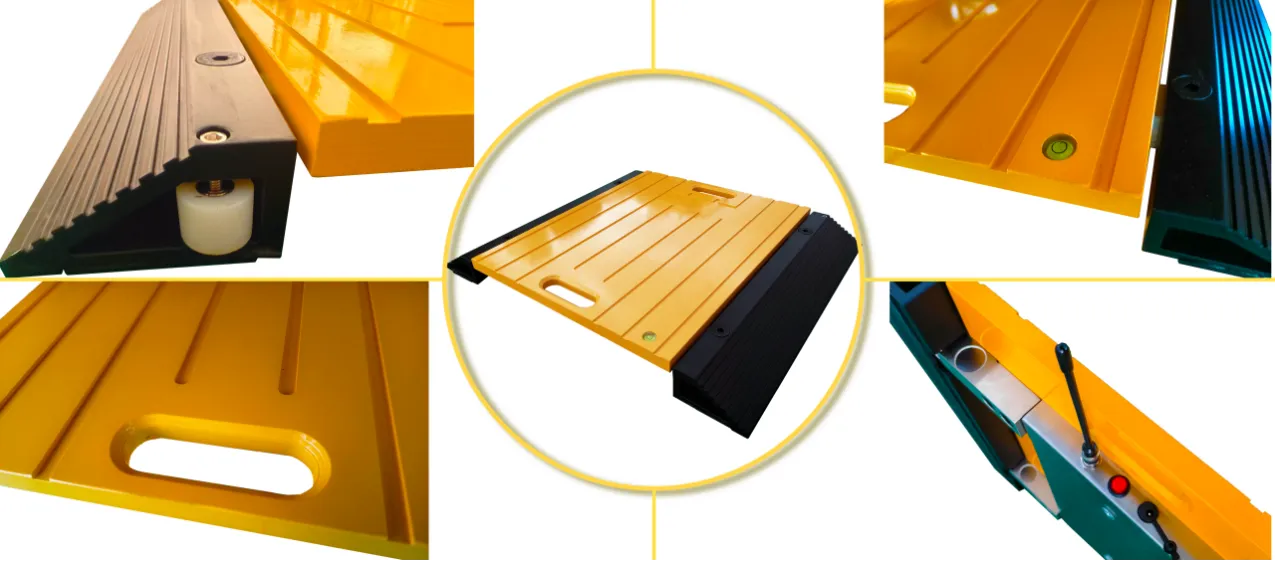

WS1101 Axle Load Scale Detail Informations:
