Portable Weighbridge Pads
WS1110-4
Portable Weighbridge Pads /truck axle weight gauge– Durable, high-precision weighing solutions for on-site applications. Made from robust steel or composite materials, these portable pads provide accurate weight measurements for trucks, forklifts, and heavy equipment. Truck axle weight gauge /portable axle scales for sale easy to transport, quick to set up, and suitable for uneven terrain. Ideal for logistics, agriculture, and construction. Weather-resistant and low-maintenance. Ensure compliance and efficiency anywhere!
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Place of Origin: Ningbo,China
Brand Name: Saintbond
Certification: National and International CE Certification
Material: Aviation Aluminum
Weighing Method: Dynamic weighing and static weighing are optional;
Connection Method: Wired and wireless versions are optional;
Customizable: Capacity, Dimension, Software;
Easy and Fast Assembly;
Minimum Infrastructure Cost;
Minimum Service and Maintenance Cost;
Vehicle Weighing:
✅ Weighing of the axle of a vehicle;
✅ Calculation of the total weight of the vehicle;
✅ The overall weight of the vehicle is calculated by adding up all the axle loads;
✅ An axle can also be weighed dynamically while the vehicle drives over the axle load scale (Weigh In Motion);
Quantity:
Portable Weighbridge Pads /truck axle weight gauge– Durable, high-precision weighing solutions for on-site applications. Made from robust steel or composite materials, these portable pads provide accurate weight measurements for trucks, forklifts, and heavy equipment. Truck axle weight gauge /portable axle scales for sale easy to transport, quick to set up, and suitable for uneven terrain. Ideal for logistics, agriculture, and construction. Weather-resistant and low-maintenance. Ensure compliance and efficiency anywhere! ( portable weighbridge pads, truck axle weight gauge, portable axle scales for sale )

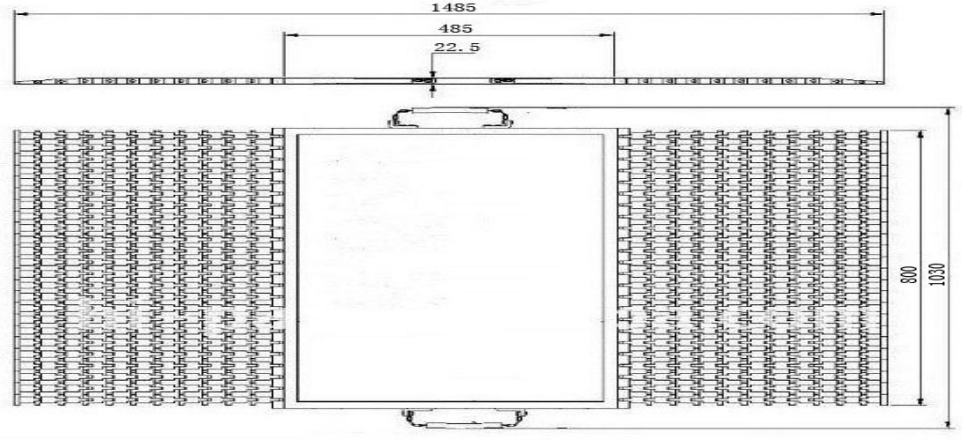

WS1110 Portable Weighbridge Pads Dimension: mm
Note:The size and capacity can be customized according to customer requirements;
WS1110 Portable Weighbridge Pads Technical Parameter:
| Rated load:10/15/20/30t (Each Weigh Pad) | Compensated temp.range(℃): -10~+50 |
| Dynamic error (%F.S): 3~5 (5~10km/h) | Static error (%F.S):0.3~0.5 |
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) |
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 |
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 |
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 |
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 |
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 |
| Excitation voltage(VDC): 9~15 | Netweight(kg): 28 |
| Recommended voltage(V): 10 | Defend grade: IP66 |
| Dynamic comprehensive error(%F.S): 1.5 (1~5km/h) 3 (5~10km/h) | |
