Portable Wheel Scales
WS1101C-7
Supply Model: Original Manufacturer
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Brand Name: Saintbond
Product Orgin: China
Item No.:WS1110
Shipping Port: Ningbbo,Or designated by the customer
Payment:100% payment before shipment
Capacities:Capacities:1~1000t
Material: Aluminum Alloy
Protection Class:IP67/68
Your Application, Our Custom Weigh Pad Solution:
✅ Aluminum Alloy construction: We can customize raw materials based on what the customer needs;
✅ Capacity, Size, & Output
✅ Cable Length;
✅ OEM/ODM Manufacturer;
✅ Logo customization
✅ Weighing Mode: Dynamic or Static Selectable;
✅ Connection: Wired or Wireless (Selectable);
Delivery
EXW FOB
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
China
Stock Time
30Day
Quantity:
portable wheel scales, axle weigh bridges, wheel weighing scales portable wheel scales, axle weigh bridges, wheel weighing scales portable wheel scales, axle weigh bridges, wheel weighing scales
Ningbo Saintbond axle weigh bridges /wheel weighing scales: Weigh Anywhere, Weigh with Ease
Ningbo Saintbond axle weigh bridges /wheel weighing scales are innovative, heavy-duty weighing solutions designed for mobility and precision. Engineered for a wide range of applications, from agriculture and logistics to waste management and construction, these scales allow you to perform accurate weight measurements directly on-site, eliminating the need for expensive, fixed-location weighbridges.
Ningbo Saintbond axle weigh bridges /wheel weighing scales are innovative, heavy-duty weighing solutions designed for mobility and precision. Engineered for a wide range of applications, from agriculture and logistics to waste management and construction, these scales allow you to perform accurate weight measurements directly on-site, eliminating the need for expensive, fixed-location weighbridges.
Our robust scales provide a reliable and cost-effective method for weighing vehicles like trucks, trailers, and agricultural machinery by the wheel or axle.
WS1101 Portable Wheel Scales Dimension:mm
| Model | Size(A×B×C) | Capacity | Description |
| (mm) | (Each Weighing Pad) | (Each Pad) | |
| WS1101WB | 300×400×56.5 | 500~8000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:500/1000/1500kg |
| 400×500×56.5 | 1000~10000kg | 4pcs LC348HLoadCell,10m Cable, Capacity:1500/2500/3000/5000kg | |
| 450×700×56.5 | 5000~15000kg | 6pcs LC348HLoadCell,10m Cable, Capacity:5000/10000/15000kg | |
| 500×900×56.5 | 5000~20000kg | 8pcs LC348HLoadCell,10m Cable, Capacity:10000/15000/200000kg | |
| Wireless | PC Software | Optional, Customizable | |
| Mobile Bluetooth | Optional | ||
| Wireless Distance | 50~200m (Optional) | ||
WS1101 Portable Wheel Scales Technical Parameter:
| Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ |
| Dynamic error: 3~5%F.S (5~10km/h) | Static error:0.3~0.5%F.S |
| Static comprehensive error: 0.3~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) |
| Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ |
| Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ |
| Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ |
| Repeatariy: 0.05%F.S | Safe overload:120% |
| Zero balance: ±1%F.S | Ultimate overload:150% |
| Excitation voltage:9~15VDC | Defend grade: IP66 |
| Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg |

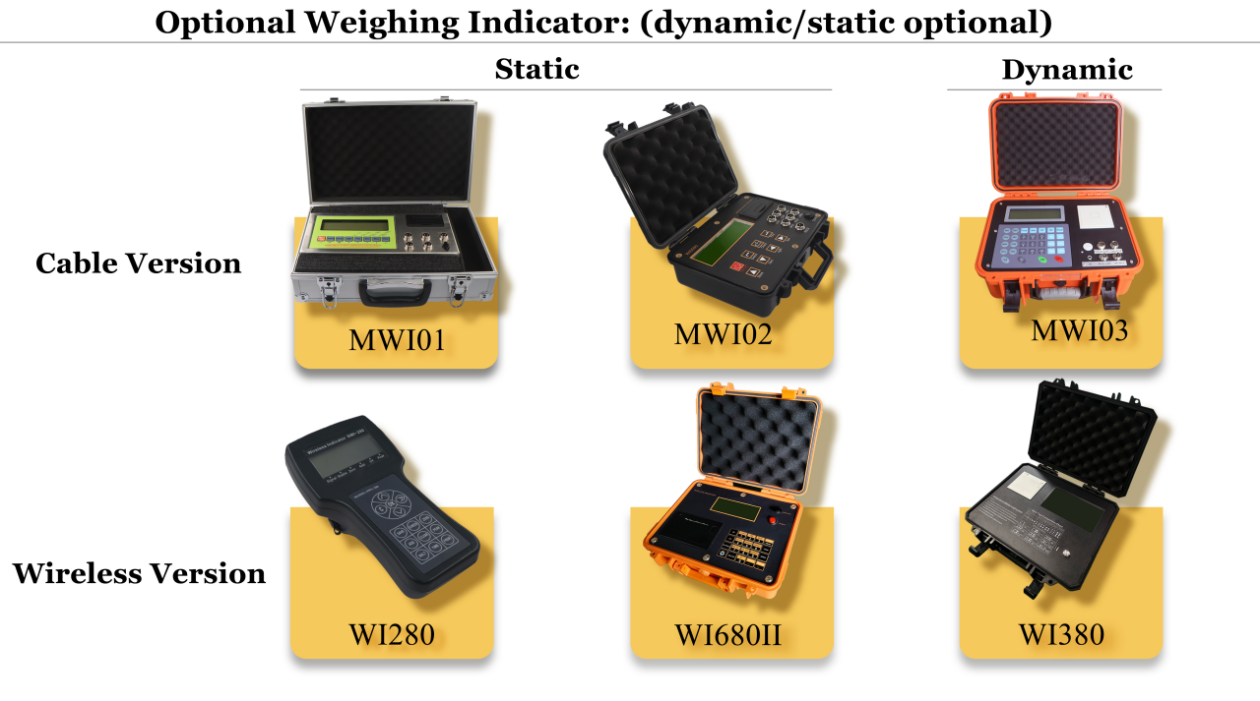

WS1101 Portable Wheel Scales Weighing Indicator: ( Optional )
WS1101 Portable Wheel Scales Applications:
Logistics & Freight: Verify container and truck loads to prevent overloading fines and ensure safety.
Agriculture: Weigh harvest yields, livestock, and feed directly on the farm.
Waste & Recycling: Weigh garbage trucks and recycled materials for billing and load management.
Construction & Mining: Weigh construction vehicles, machinery, and raw materials on-site.
Logistics & Freight: Verify container and truck loads to prevent overloading fines and ensure safety.
Agriculture: Weigh harvest yields, livestock, and feed directly on the farm.
Waste & Recycling: Weigh garbage trucks and recycled materials for billing and load management.
Construction & Mining: Weigh construction vehicles, machinery, and raw materials on-site.
Why Choose Ningbo Saintbond?
Proven Durability: We use premium materials and rigorous quality control to ensure our products withstand daily demanding use.
Expert Support: We offer comprehensive technical support and after-sales service.
Customizable Solutions: We can tailor scale capacity, size, and software to meet your specific requirements.
Global Compliance: Our products are designed to meet various international certification standards.
Proven Durability: We use premium materials and rigorous quality control to ensure our products withstand daily demanding use.
Expert Support: We offer comprehensive technical support and after-sales service.
Customizable Solutions: We can tailor scale capacity, size, and software to meet your specific requirements.
Global Compliance: Our products are designed to meet various international certification standards.
Eliminate the trip to the weighbridge. Bring the precision to your site with Ningbo Saintbond Portable Wheel Scales.
Contact us today for a quote and to find the perfect model for your needs!
WS1101 Portable Wheel Scales Product Detail Informations:
